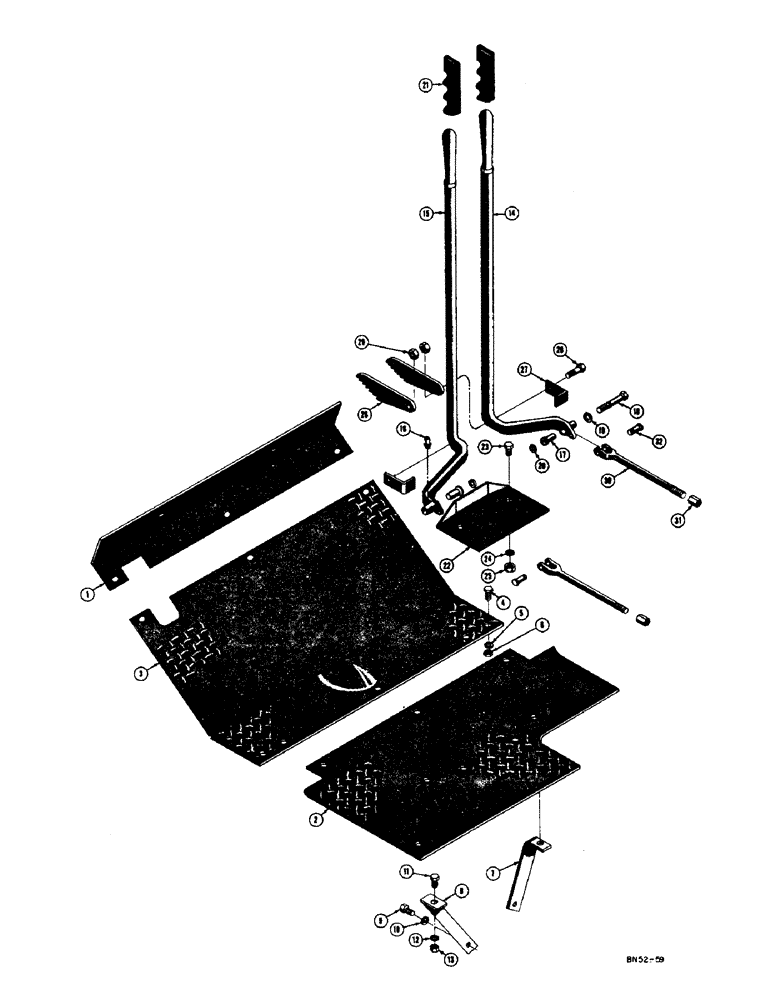

Запчасти Case 400 (142) - FLOOR PLATE, STEERING LEVERS & LINKAGE, (ALL MODELS - USED FROM S/N 3000180) (05) - UPPERSTRUCTURE CHASSIS

1

37365

PLATE

- center (Used on all 400 gas models) (Serial #3000180 and after)

1шт.

38084

PLATE - center (Used on all 400 diesel models) (Serial #3000180 and after)

1шт.

31055

PLATE - center (Used on all 500 gas and diesel models) (Serial #3000015 up to serial #3003033)

1шт.

34915

PLATE - center (Used on all 500 gas and diesel models) (Serial #3003033 and after)

1шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd (Not shown)

5шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Not shown) 3/8"

5шт.

129-123

NUT,3/8"-24, G5

(Not shown) 3/8"-24, G5

5шт.

35628

TUBE

PLATE - floor (Used on all 400 gas models except backhoe models, serial #3000180 and after) (Not shown)

1шт.

2

35500

RING

PLATE - floor, rear (Used on all 400 and 500 gas and diesel backhoe models, serial #3000180 and after)

1шт.

38085

PLATE - floor, rear (Used on all 400 diesel models, except backhoe models, serial #3000180 and after)

1шт.

35501

RING

PLATE - floor, rear (Used on all 500 gas and diesel models, except backhoe models, serial #3000015 up to serial #3003033) (Used on all 500 gas and diesel models, serial #3003033 and after)

1шт.

3

31057

PLATE - floor, front (Used on all 400 and 500 diesel and 500 gas models, serial #3000015 and after)

1шт.

4

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Floor plate

12шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

6

129-123

NUT,3/8"-24, G5

12шт.

7

33605

EXHAUST MANIFOLD

BRACE - floor plate, R.H.

1шт.

8

33606

BRACE - floor plate, L.H.

1шт.

9

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

HHCS - brace to transmission (5/8 - 11 NC x 1-1/4)

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Brace to floor plate

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-123

NUT,3/8"-24, G5

2шт.

14

D27470

LEVER - brake, R.H. (Used on all models, serial #3000015 and after)

1шт.

15

D27469

LEVER - brake, L.H. (Used on all models, serial #3000015 and after)

1шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - straight grease, drive type (Lincoln #5029)

2шт.

17

35504

BUSHING

- brake lever

2шт.

18

113-522

BOLT,Hex, 9/16" - 12 x 3-3/4", Gr 5

HHCS - brake lever to transmission case (9/16 - 12 NC x 3-3/4)

2шт.

19

495-11059

WASHER,9/16"

- standard wrot (19/32" I.D. x 1-13/16" O.D. x 1/8" thick)

2шт.

20

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

2шт.

21

31400

CLAMP

GRIP - rubber, brake lever

2шт.

22

35503

FLANGE

PLATE - ratchet

1шт.

23

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - ratchet plate (1/2 - 20 NF x 1)

2шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

25

129-125

NUT,1/2"-20, G5

2шт.

26

33604

RATCHET

- brake lever

2шт.

27

36880

SPARE PART

STOP - ratchet

2шт.

28

414-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - ratchet and stop to brake lever (3/8 - 24 NF x 1-1/2)

2шт.

29

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam (3/8 - 24 NF)

2шт.

30

35505

ROD

- yoke, steering

2шт.

31

11471

NUT

- steering rod

2шт.

32

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , Not shown 1/8" x 3/4"

2шт.
