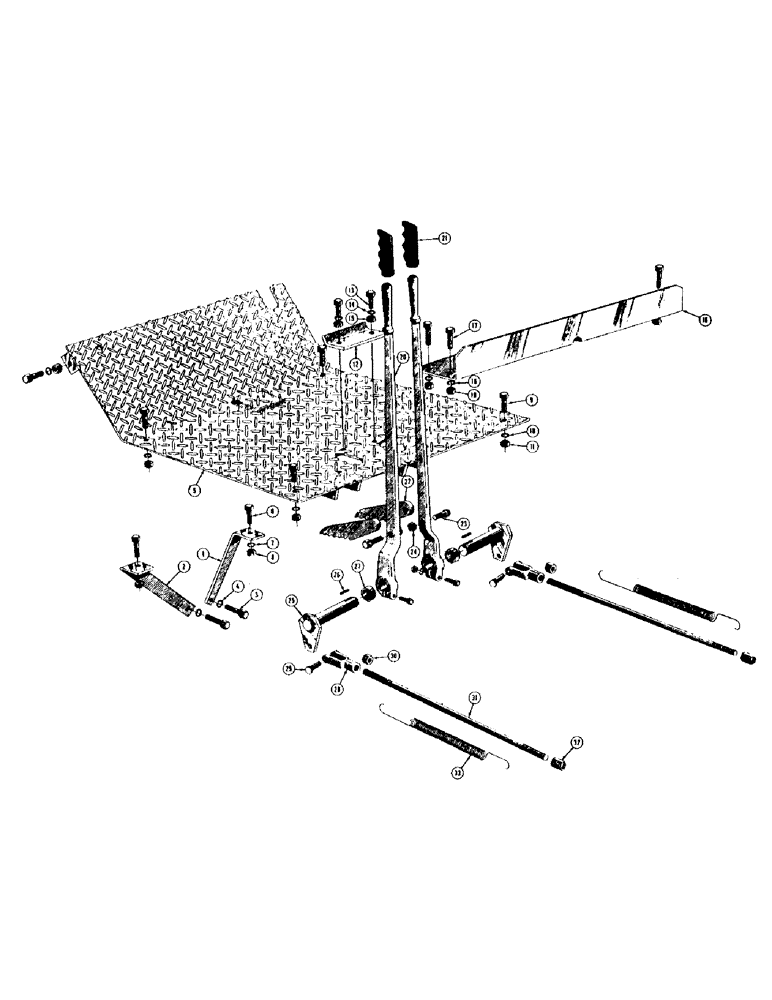

Запчасти Case 400 (138) - FLOOR PLATE, STEERING LEVERS & LINKAGE, (400 MODELS ONLY - USED TO S/N 3000180) (05) - UPPERSTRUCTURE CHASSIS

1

33605

EXHAUST MANIFOLD

BRACE - floor plate, R.H.

1шт.

2

33606

BRACE - floor plate, L.H.

1шт.

3

113-514

BOLT,Hex, 9/16" - 12 x 1", Gr 5, Full Thd

2шт.

4

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

2шт.

5

33595

BRAKE DRUM

PLATE - floor

1шт.

6

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

129-123

NUT,3/8"-24, G5

2шт.

9

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

6шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

11

129-123

NUT,3/8"-24, G5

6шт.

12

33598

PLATE - ratchet

1шт.

13

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

129-125

NUT,1/2"-20, G5

2шт.

16

33541

WASHER

PLATE - heel

1шт.

17

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

3шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

129-123

NUT,3/8"-24, G5

3шт.

20

31387

LEVER - brake, complete

2шт.

21

31400

CLAMP

GRIP - rubber, brake lever

2шт.

22

33604

RATCHET

- brake lever

2шт.

23

414-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24 NF x 1-1/2

2шт.

24

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam (3/8 - 24 NF)

2шт.

25

A33600

DECAL

SHAFT - brake lever

2шт.

26

48816

KEY - square, brake lever shaft

2шт.

27

33603

FLEXIBLE HOSE

SPACER - brake lever shaft

2шт.

28

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

2шт.

29

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

432-816

COTTER PIN,1/8" x 1"

not shown 1/8" x 1"

2шт.

30

129-123

NUT,3/8"-24, G5

2шт.

31

31386

ROD - steering

2шт.

32

11471

NUT

- steering rod

2шт.

33

R33370

SPRING

- brake lever return

2шт.
