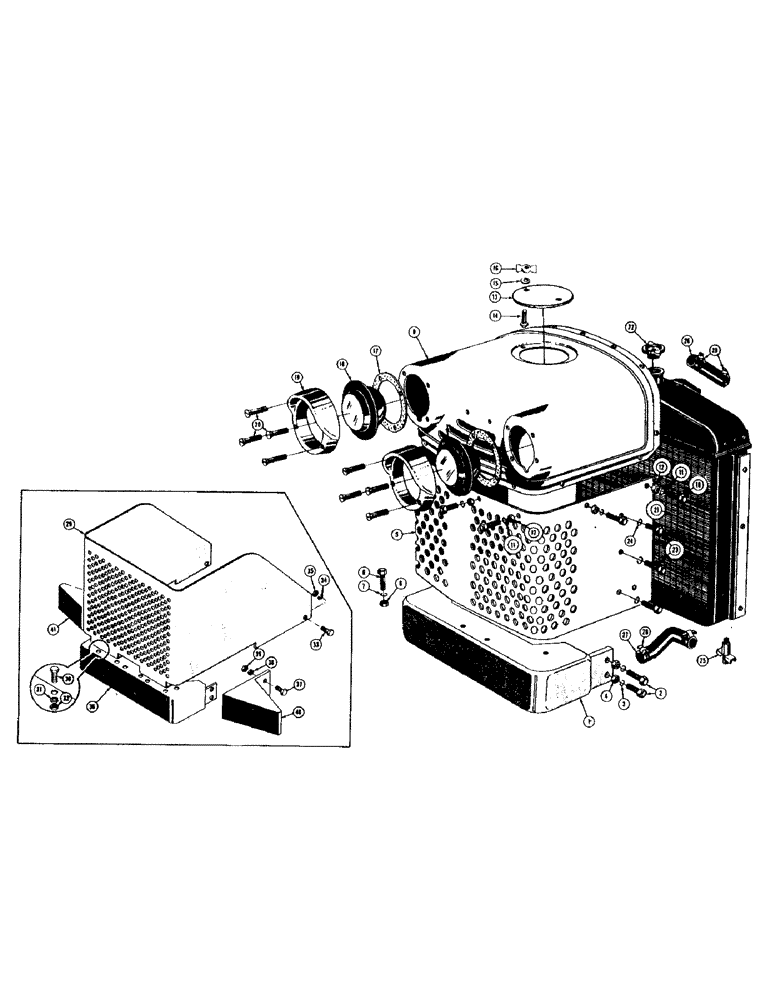

Запчасти Case 400 (078) - RADIATOR, GRILLE, GRILLE CAP, AND BUMPER, (USED FROM S/N 6-1-55) (05) - UPPERSTRUCTURE CHASSIS

1

34325

BUMPER - front (Used on all models, serial #3000015 and after)

1шт.

2

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - front bumper (1/2 - 20 NF x 1-1/4)

4шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

129-125

NUT,1/2"-20, G5

4шт.

5

30765

PIN

GRILLE - radiator (Used on all gas models) (Used on all 500 diesel models up to late 1956 models)

1шт.

37387

GRILLE - radiator (Used on all 400 diesel models, serial #3000015 and after)

1шт.

31297

GRILLE - radiator (Used on all 500 diesel models, late 1956 models and after)

1шт.

6

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - grille to bumper (1/2 - 20 NF x 1-1/4)

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

129-125

NUT,1/2"-20, G5

4шт.

9

34332

GROOVED PULLEY

GRILLE CAP - radiator

1шт.

10

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Grille cap to grille

8шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

495-21044

WASHER,3/8"

(Not shown) 3/8"

8шт.

12

129-123

NUT,3/8"-24, G5

8шт.

30767

LID

EMBLEM - (Used on all 500 models up to serial #3000015) (Not shown)

1шт.

353501X1

SCREW

HHCS - 1/4 - 28 NF x 1/2

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

425-114

NUT,1/4"-28, G5

4шт.

13676

EMBLEM - (Used on all 400 models up to serial #3000015) (Not shown)

1шт.

36717

PLATE

EMBLEM - (Used on all models, serial #3000015 and after) (Not shown)

1шт.

73-416

BOLT (MACHINE),Flat, 1/4"

FHMS - emblem (1/4 - 20 NC x 1)

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

30768

COVER - access, radiator cap (Used on all 500 models up to serial #3000015) (Not shown)

1шт.

13

31630

COVER - access, radiator cap (Used on all models, serial #3000015 and after)

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- access cover to grille cap (5/16 - 18 NC x 3/4)

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

129-419

WING NUT,5/16"-18

NUT - wing (5/16 - 18 NC)

2шт.

17

306132C1

CABLE TIE,14.5" L

GASKET - head light to grille cap

2шт.

18

36516

X

LIGHT - head, 6 volt (All gas models)

2шт.

D21322

UNIT - sealed beam, 6 volt (Not shown)

1шт.

G44831

UNIT

LIGHT - head, 12 volt (Used on all diesel models up to serial #3003033)

2шт.

30756

UNIT - sealed beam, 12 volt (Not shown)

1шт.

18

37819

LIGHT - head, 12 volt (Used on all diesel models, serial #3003033 and after)

2шт.

D21323

UNIT - sealed beam, 12 volt (Not shown)

1шт.

19

31636

RING - mounting, head light

2шт.

20

73-424

BOLT (MACHINE)

FHMS - mounting ring (1/4 - 20 NC x 1-1/2)

8шт.

21

D24407

RADIATOR - (Used on all 400 models) (Used on all 500 models up to late 1956 models)

1шт.

22

D21348

CAP - pressure, radiator

1шт.

21

NLS

NO LONGER SERVICED

RADIATOR - (Used on all 500 gas models, late 1956 models and after)

1шт.

34618

CHAIN

RADIATOR - (Used on all 500 diesel models, late 1956 models and after)

1шт.

22

D25826

CAP

- pressure, radiator (Used on all 500 models, late 1956 models and after)

1шт.

23

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Radiator to grille Hex, 5/16"-24 x 7/8", G5, Full Thd

6шт.

24

92-5

LOCK WASHER,5/16"

6шт.

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF) (Used on all 400 models) (Used on all 500 models up to late 1956 models)

6шт.

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

- Street (Used on all 400 models) (Used on all 500 models up to late 1956 models) (Not shown) 90º, 1/4"-27, NPT

1шт.

60304032

FITTING

NIPPLE - pipe (1/4 NPT x 2) (Used on all 400 models) (Used on all 500 models up to late 1956 models) (Not shown)

1шт.

221-1375

ELBOW

- 90 degree female pipe, 1/4 NPT (Used on all 400 models) (Used on all 500 models up to late 1956 models) (Not shown)

1шт.

25

217-92

COCK

DRAINCOCK - radiator

1шт.

26

30747

HOSE - radiator inlet (Used on all 400 gas models) (Used on all 500 gas models up to late 1956 models)

1шт.

31116

HOSE - radiator inlet (Used on all 500 gas models, late 1956 models and after)

1шт.

30748

HOSE - radiator inlet (Used on all 400 diesel models) (Used on all 500 diesel models, up to late 1956 models)

1шт.

31289

PIN

HOSE - radiator inlet (Used on all 500 diesel models, late 1956 models and after)

1шт.

27

NLS

NO LONGER SERVICED

RADIATOR HOSE , Outlet (Used on all gas models) 1.50" ID x 3.75", SAE 20R1

1шт.

30738

LINE

HOSE - radiator outlet (Used on all diesel models)

1шт.

28

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

Hose (Used on all 500 models up to late 1956 models) 3/4", Insul, 5/16" Bolt

4шт.

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, (Used on all models, late 1956 models and after) #28, 1.31/2.25 Type F Worm

4шт.

29

37792

WASHER

GUARD - radiator, forestry (Optional) (Applicable on all 500 models, serial #3000015 and after)

1шт.

30

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - forestry radiator guard (1/2 - 20 NF x 1)

4шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

32

129-125

NUT,1/2"-20, G5

4шт.

33

414-1016

BOLT,Hex, 5/8" - 18 x 1", Gr 5

HHCS - forestry radiator guard (5/8 - 18 NF x 1)

2шт.

34

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

35

425-1110

NUT,5/8"-18, G5

2шт.

36

37791

SPACER

BUMPER - front (Use with forestry radiator guard only) (Optional)

1шт.

37

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - front bumper (1/2 - 20 NF x 1-1/2)

8шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

39

129-125

NUT,1/2"-20, G5

8шт.

40

37800

EXTENSION - bumper, forestry (L.H.) (Optional)

1шт.

41

37801

EXTENSION - bumper, forestry (R.H.) (Optional)

1шт.
