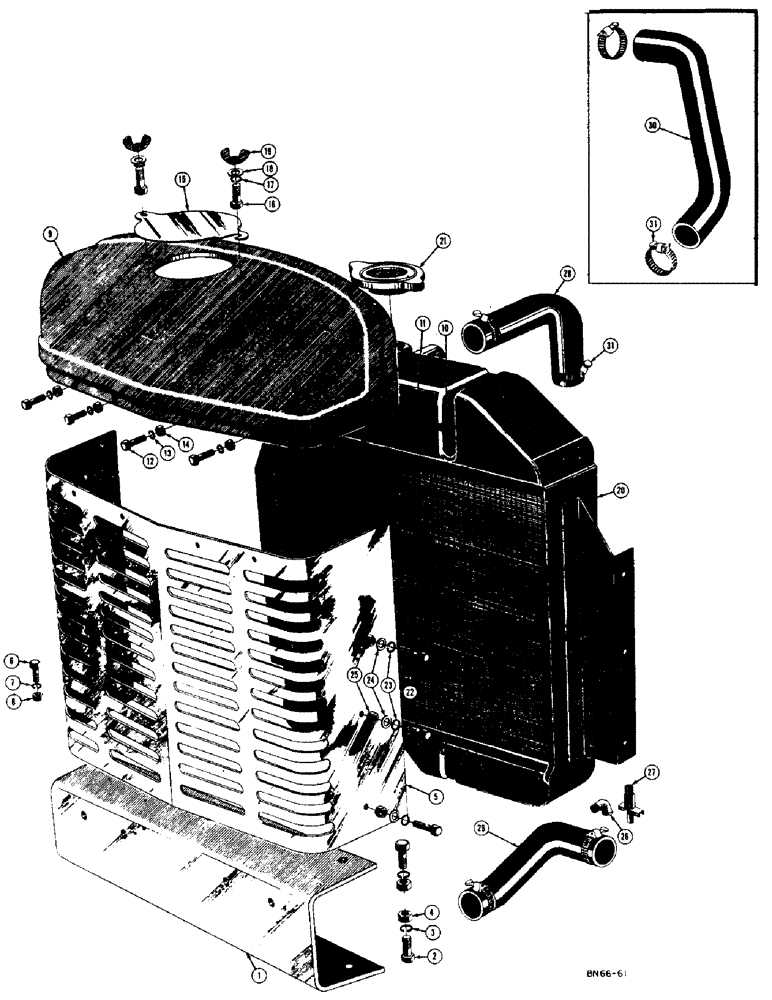

Запчасти Case 400 (076) - RADIATOR, GRILLE, GRILLE CAP, AND BUMPER, (USED UP TO S/N 6-1-55) (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
2
414-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - front bumper (1/2 - 20NF x 1-1/2)
4шт.
6
414-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - grille to engine frame (1/2 - 20NF x 1-1/4)
4шт.
10
114-221
BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd
HHCS - grille cap to grille (3/8 - 24NF x 5/8)
2шт.
12
BOLT,Hex, 3/8" - 24 x 1", Gr 5
Hex, 3/8"-24 x 1", G5, Full Thd, Grille cap to grille
4шт.
16
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- Access cover to grille cap Hex, 5/16"-18 x 1", G5, Full Thd
2шт.
22
114-101
BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd
Radiator to grille Hex, 5/16"-24 x 7/8", G5, Full Thd
6шт.
26
221-1412
ELBOW,90 Degree, 1/4"-27, NPT
- Street (Bottom rear of radiator) 90º, 1/4"-27, NPT
1шт.
29
30739
LINE,1.50" ID x 3.75", SAE 20R1
RADIATOR HOSE , Outlet (Gas models only) 1.50" ID x 3.75", SAE 20R1
1шт.
