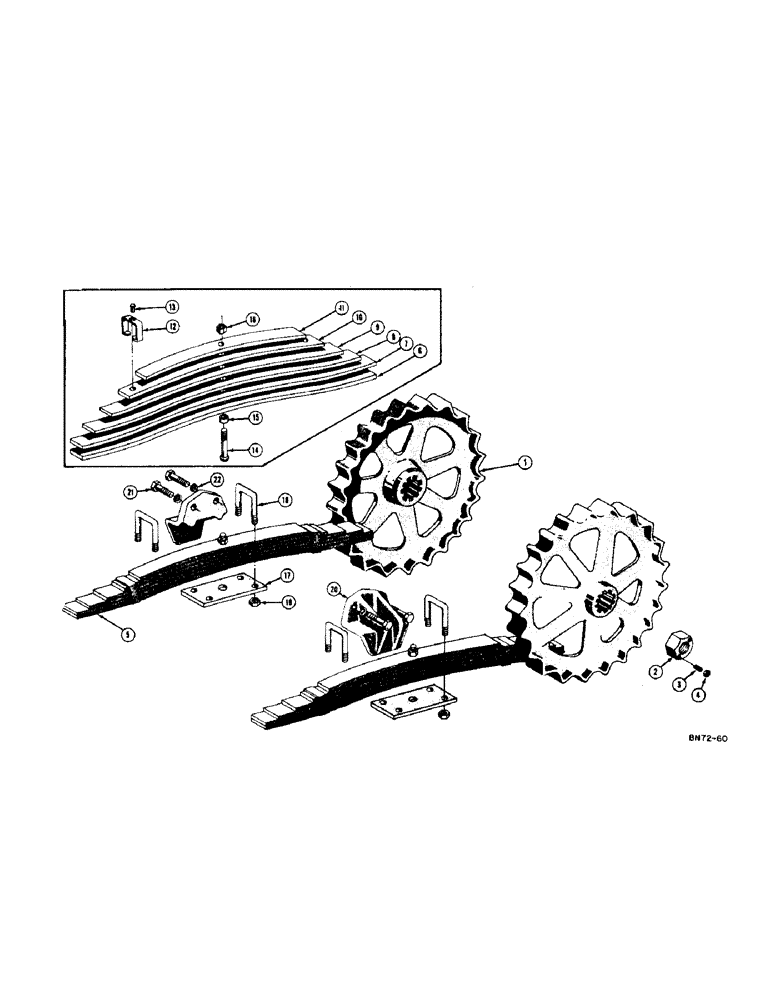

Запчасти Case 400 (156) - SPROCKET AND LEAF SPRING (04) - UNDERCARRIAGE

1

D46989

SPROCKET ASSY.

SPROCKET - drive (Standard)

2шт.

D20407

SPROCKET - drive, snow (Optional), Serial Range: (Similar-11822)

2шт.

2

11851

LOCK NUT

NUT - lock, final drive sprocket

2шт.

3

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

SCREW - set

4шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16NC)

4шт.

5

33116

SEALING RING COLLAR

SPRING - leaf

2шт.

6

33117

LEAF - spring, 5/16 x 1-3/4 x 29-1/4

2шт.

7

33118

LEAF - spring, 5/16 x 1-3/4 x 26-1/2

1шт.

8

33119

SPRING

LEAF - spring, 5/16 x 1-3/4 x 22-1/2

1шт.

9

33120

NEEDLE BEARING

LEAF - spring, 5/16 x 1-3/4 x 17-3/4

1шт.

10

33121

LEAF - spring, 5/16 x 1-3/4 x 13

1шт.

11

33122

HOUSING

LEAF - spring, 5/16 x 1-3/4 x 8-3/4

1шт.

12

33123

PIN

CLIP - leaf spring

2шт.

13

NLS

NO LONGER SERVICED

RIVET - clip

2шт.

14

33125

SCREW

BOLT - round hd. (5/16 - 24NF x 3-1/2) (Used on leaf spring with 5/16" dia. center hole)

1шт.

121-202

BOLT - round hd. (3/8 - 24NF x 3-1/2) (Used on leaf spring with 3/8" dia. center hole)

1шт.

15

33126

BUSHING

SPACER

1шт.

16

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

1шт.

129-123

NUT,3/8"-24, G5

1шт.

17

34575

PLATE - leaf spring

2шт.

18

NLS

NO LONGER SERVICED

"U" BOLT - leaf spring

4шт.

19

329-116

NUT,3/8"-24, G8

8шт.

20

NLS

NO LONGER SERVICED

BRACKET - retainer, leaf spring

2шт.

21

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

4шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
