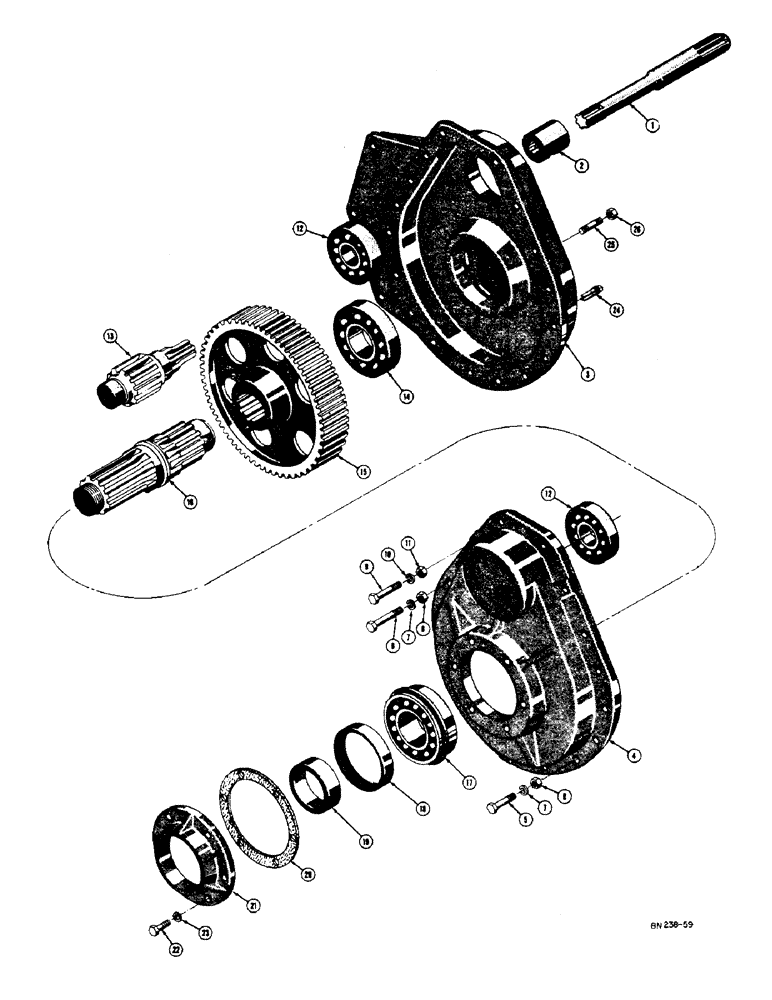

Запчасти Case 400 (154) - FINAL DRIVE AND AXLE SHAFT (03) - TRANSMISSION

1

51200025

SHAFT

- axle, final drive

2шт.

2

51200026

COUPLING

- final drive

2шт.

3

11816

RIVET

HOUSING - final drive, R.H. inner

1шт.

11817

RIVET

HOUSING - final drive, L.H. inner

1шт.

4

D24658

HOUSING

- final drive, outer (Use D24658)

2шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

5

14-726

HHCS - 7/16 - 20NF x 1-5/8 Hex, 7/16"-20 x 1 5/8", G5

24шт.

6

114-326

BOLT,Hex, 7/16" - 20 x 2-1/2", Gr 5

HHCS - 7/16 - 20NF x 2-1/2

10шт.

7

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

34шт.

8

425-117

NUT,7/16"-20, G5

- hex. (7/16 - 20NF)

34шт.

4

D24658

HOUSING

- final drive, outer

2шт.

Before ordering outer housings, check the casting number. When replacing 11823 housing with D24658 housing, it will also be necessary to order the following parts that are listed under D24658: Reference no. 5 thru no. 11.

1шт.

5

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

HHCS - 7/16 - 14NC x 1-3/4

18шт.

6

13-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

10шт.

7

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

28шт.

8

425-107

NUT,7/16"-14, G5

28шт.

9

D24688

BOLT

BOLT - body fit (1/2 - 13NC x 2-1/8)

6шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

12

40002

BALL BEARING

- final drive pinion

4шт.

13

51200027

SHAFT

PINION - final drive

2шт.

14

40003

BEARING

- final drive

2шт.

15

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

16

CAS11853

SHAFT

- final drive, 48" gauge standard tractor

2шт.

11830-600

SHAFT - final drive, 60" gauge tractor

2шт.

11830-720

SHAFT - final drive, 72" gauge tractor

2шт.

17

40039

HINGE

BEARING - outer, final driveshaft

2шт.

18

D29517

SEAL

- oil, final driveshaft

2шт.

19

51200024

SPACER

- final driveshaft

2шт.

20

CAS11828

GASKET

- seal retainer

2шт.

21

11827

RETAINER

- seal, final driveshaft

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

24

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

Pipe, Magnetic Hex Soc, 1/2" NPT

4шт.

25

R29874

STUD

- mounting, final drive

16шт.

26

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8 - 18NF)

16шт.
