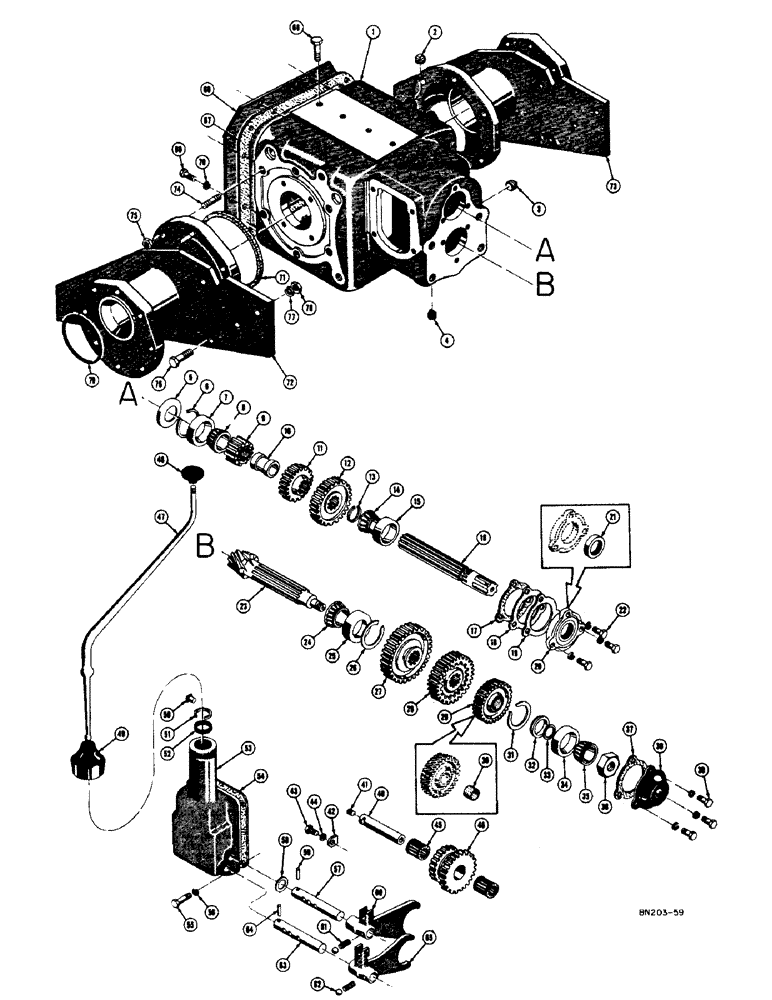

Запчасти Case 400 (150) - TRANSMISSION - DIFFERENTIAL AND FINAL DRIVE SPACERS (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
D23400
X
TRANSMISSION AND DIFFERENTIAL ASS'Y - complete
1шт.
1
NLS
NO LONGER SERVICED
CASE ASS'Y - transmission (Includes ref. #26)
1шт.
2
221-846
PLUG,Hex Soc, 1"-11 1/2
- pipe, transmission filler (1" NPT)
1шт.
3
221-1014
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - pipe, oil level (1/2 NPT)
1шт.
4
221-674
DRAIN PLUG,Sq Hd, 1/2" NPT
PLUG - pipe, magnetic
2шт.
5
11371
CUP ASSY.
CUP - oil, main shaft rear bearing
1шт.
7
54630H
BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"
CUP - bearing, main shaft rear
1шт.
8
A31074
CONE
- bearing, main shaft rear
1шт.
9
11363
BALL BEARING
GEAR - main shaft, low and reverse
1шт.
10
NLS
NO LONGER SERVICED
- main shaft gear
1шт.
11
11365
GEAR
- main shaft, second speed
1шт.
12
11366
GEAR
- main shaft, constant mesh
1шт.
13
A29978
RING, SNAP
SNAP RING - main shaft, front bearing
1шт.
14
A31074
CONE
- bearing, main shaft front
1шт.
15
54630H
BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"
CUP - bearing, main shaft front
1шт.
16
D33873
MAIN SHAFT
SHAFT - main, transmission
1шт.
17
51200023
GASKET
- main shaft front bearing cap
1шт.
18
N13045
SHIM,.005" Thk
Main shaft front bearing .005" Thk
1шт.
19
11367
SHIM
- main shaft front bearing (.010" thick)
1шт.
D20541
SHIM,.020" Thk
Main shaft front bearing .020" Thk
1шт.
20
11369
X
CAP - main shaft front bearing
1шт.
21
11370
OIL RESERVOIR
SEAL - oil, bearing cap
1шт.
22
23016
CAP
HHCS AND LOCKWASHER - 3/8 - 16 NC x 1
3шт.
23
R25584
GEAR WHEEL
COUNTERSHAFT AND BEVEL PINION
1шт.
24
40384
ROLLER BEARING
CONE - bearing, countershaft rear
1шт.
25
BER10385
SEALING RING COLLAR
CUP - bearing, countershaft rear
1шт.
27
11373
BALL BEARING
- countershaft, first and reverse
1шт.
28
D37372
GEAR
- sliding, second and third
1шт.
29
11375
GEAR
AND BUSHING - third
1шт.
30
11376
BUSHING
- third gear
1шт.
31
101-21250
SNAP RING,#250, 2.673", Int
- countershaft front bearing
1шт.
32
11378
BELLEVILLE WASHER
- retaining, countershaft third gear
1шт.
33
NSS
NOT SOLD SEPARAT
WASHER - spring, countershaft third gear retaining (Use D11205)
1шт.
D11205
SHIM KIT
KIT - shim pack, countershaft third gear retaining
1шт.
D27621
SPACER
WASHER - spacer, hardened (1-1/32" I.D. x 1-7/16" O.D. x 18 gauge) Not shown
1шт.
D27618
SHIM,.004" Thk
Steel (Not shown) .004" Thk
2шт.
D27619
SHIM,.007" Thk
Steel (Not shown) .007" Thk
2шт.
D27620
SHIM,.010" Thk
Steel (Not shown) .010" Thk
5шт.
34
54630H
BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"
CUP - bearing, countershaft front
1шт.
35
594446R1
ROLLER BEARING
CONE - bearing, countershaft front
1шт.
36
11380
NUT
- adjusting, countershaft front bearing
1шт.
37
51200023
GASKET
- countershaft front bearing cap
1шт.
38
11381
CAP
- countershaft front bearing
1шт.
39
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
and lockwasher - bearing cap Hex, 3/8"-16 x 3/4", G5, Full Thd
3шт.
40
34592
SHAFT
ASS'Y - reverse idler
1шт.
41
34594
X
PLUG - pipe, slotted headless
1шт.
42
11385
LOCK ASSY
LOCK - reverse idler shaft
1шт.
43
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
- Reverse idler shaft lock Hex, 3/8"-16 x 5/8", G5, Full Thd
1шт.
44
93-41039
LOCK WASHER,Ext Tooth, 3/8"
WASHER - Shakeproof lock, internal tooth (3/8)
1шт.
45
11450
TAPERED BEARING
BEARING - needle, reverse idler
2шт.
46
NLS
NO LONGER SERVICED
GEAR - reverse idler
1шт.
47
31366
LEVER - gear shift (Use 37238)
1шт.
D33480
LEVER
- gear shift
1шт.
48
A26727
BALL
KNOB - gear shift lever
1шт.
49
A26956
DUST CAP
COVER - dust, gear shift lever
1шт.
50
A30294
PIN
- stake, gear shift lever
1шт.
51
11454
RING, SNAP
SNAP RING - gear shift lever
1шт.
52
CAS11393
WASHER
- pivot, gear shift lever
1шт.
53
11387
BALL BEARING
COVER AND GUIDE ASS'Y - control (Has #11388 on the casting)
1шт.
NLS
NO LONGER SERVICED
COVER AND GUIDE ASS'Y - control (Has #37237 on the casting)
1шт.
54
11391
GASKET
- control cover and guide ass'y
1шт.
55
413-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
Control cover and guide to transmission case Hex, 3/8"-16 x 7/8", G5, Full Thd
4шт.
56
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
57
11396
ROD
- shift, first and reverse
1шт.
58
D28299
WASHER
- spacer first and reverse shift fork
5шт.
59
R17820
AXLE PIN,4.76mm OD x 25.4mm L
PIN - lock, first and reverse shift rod (Short)
1шт.
60
11400
FORK TEDDER
FORK - shift, first and reverse
1шт.
61
11403
SPRING
- mesh lock, shift fork
2шт.
62
VT4913
X
BALL - mesh lock, shift fork (3/8" dia.)
2шт.
64
11399
PIN
- lock, second and third shift rod (Long)
1шт.
65
NLS
NO LONGER SERVICED
FORK - shift, second and third
1шт.
66
113-514
BOLT,Hex, 9/16" - 12 x 1", Gr 5, Full Thd
Transmission top plugs Hex, 9/16"-12 x 1", G5, Full Thd
4шт.
67
11429
GASKET
- transmission cover plate
1шт.
68
D21185
PLATE
- cover, transmission
1шт.
69
413-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
HHCS - cover plate (7/16 - 11 NC x 1-1/4)
11шт.
70
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
11шт.
71
32369
SEAL
- cork, final drive, Serial Range: spacer-transmission
2шт.
72
NLS
NO LONGER SERVICED
SPACER - final drive, R.H. (48" gauge tractor, standard)
1шт.
11970
LARGE PLATE
SPACER - final drive, R.H. (60" gauge tractor)
1шт.
11974
O-RING
SPACER - final drive, R.H. (72" gauge tractor)
1шт.
34918
SPACER - final drive, R.H. (Backhoe models only)
1шт.
73
NLS
NO LONGER SERVICED
SPACER - final drive, L.H. (48" gauge tractor, standard)
1шт.
11971
O-RING
SPACER - final drive, L.H. (60" gauge tractor)
1шт.
11975
FITTING
SPACER - final drive, L.H. (72" gauge tractor)
1шт.
34919
SPACER - final drive, L.H. (Backhoe models only)
1шт.
74
46505
STUD
- final drive spacer to transmission (9/16 x 1)
12шт.
75
131-675
LOCK NUT,9/16"-18, GB
NUT - lock (9/16 - 18 NF)
12шт.
76
414-1028
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
HHCS - final drive spacer to engine frame (5/8 - 18 NF x 1-3/4)
8шт.
77
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
78
425-1110
NUT,5/8"-18, G5
8шт.
79
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
SEAL - "O" ring, final drive spacer outer flange
2шт.
Выбрано товаров: 94
