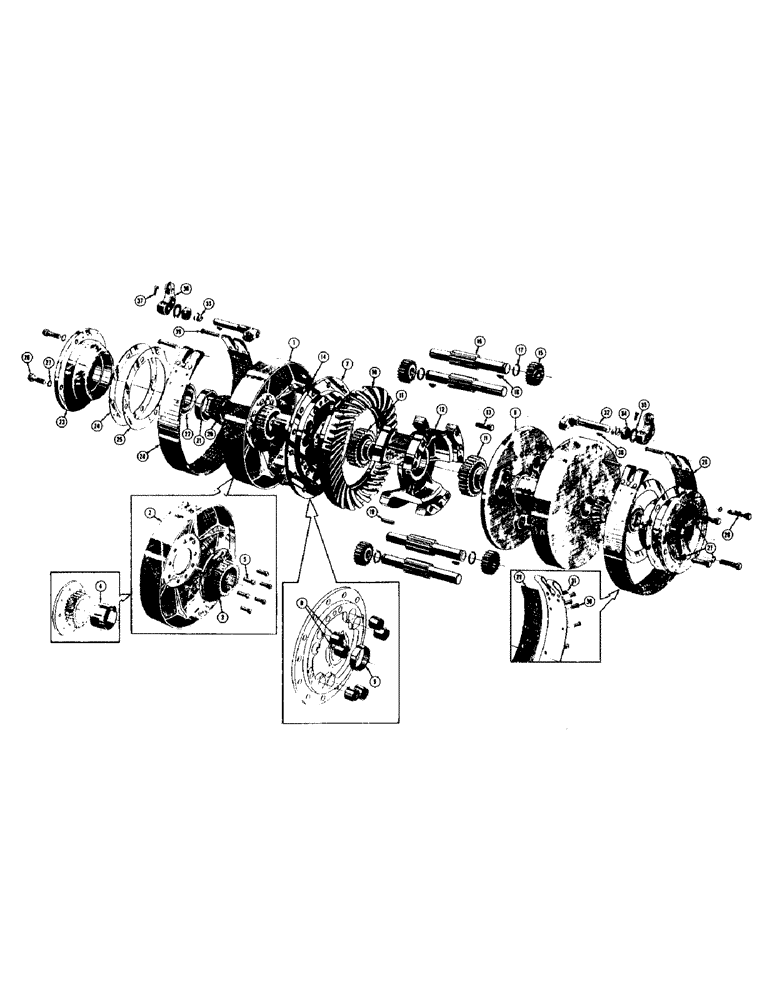

Запчасти Case 400 (144) - DIFFERENTIAL, (USED UP TO SERIAL #6-1-56) (03) - TRANSMISSION

NLS

NO LONGER SERVICED

TRANSMISSION AND DIFFERENTIAL ASS'Y - complete (Use D23400)

1шт.

Service for 35419 and 11404 is provided on component parts only, when complete assemblies are desired, order D23400 and D20533 as indicated above.

1шт.

11404

SET SCREW

DIFFERENTIAL AND DRUM ASS'Y - (Use D20533)

1шт.

Service for 35419 and 11404 is provided on component parts only, when complete assemblies are desired, order D23400 and D20533 as indicated above.

1шт.

1

11286

GEAR

DRUM, GEAR, AND BUSHING - brake

2шт.

2

D20425

PINION

DRUM - brake

1шт.

3

A11287

TUBE

GEAR AND BUSHING - brake drum

1шт.

4

11288

BEARING

BUSHING - brake drum gear

1шт.

5

11409

HARNESS

RIVET - brake drum

8шт.

6

NLS

NO LONGER SERVICED

HOUSING - differential, R.H.

1шт.

7

11410

HOUSING - differential, L.H.

1шт.

8

CAS11414

HALF-BUSHING

BUSHING - planet pinion

6шт.

9

11415

BEARING

BUSHING - axle shaft gear

1шт.

10

R25584

GEAR WHEEL

GEAR - ring

1шт.

11

D20423

PINION

GEAR - axle shaft

2шт.

12

D30698

HOUSING

- center member

1шт.

13

CAS11424

SCREW

- differential center member

12шт.

391-825

ELECTRICAL WIRE

WIRE - lock, center member screw (Not shown)

6шт.

14

NLS

NO LONGER SERVICED

SCREW - ring gear

12шт.

391-825

ELECTRICAL WIRE

WIRE - lock, center member screw (Not shown)

1шт.

15

D20421

PLANETARY GEAR

GEAR - planet

6шт.

16

D20422

SHAFT

PINION - planet

6шт.

17

11455

RING, SNAP

SNAP RING - planet gear

6шт.

18

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Planet gear #9, 3/16" x 3/4"

6шт.

19

CASCAS11424

DOWEL - differential center member

6шт.

20

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

CONE - bearing

2шт.

21

VT2100

X

CUP - bearing

2шт.

22

D49930

OIL SEAL

SEAL - oil, differential

2шт.

23

11425

CARRIER

- differentail bearing

2шт.

24

CAS11426

SHIM

- differential bearing carrier (.010" thick)

1шт.

25

CAS11427

SHIM

- differential bearing carrier (.005" thick)

1шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

28

D21964

LINING

BAND AND LINING KIT - (Includes 2 brake band assemblies)

2шт.

29

D25534

KIT

LINING KIT - brake (Includes 2 brake band linings)

1шт.

30

114984A1

RIVET

- brake band lining

36шт.

31

11437

SCREEN

RIVET - brake band

6шт.

32

11438

BEARING

CAM - brake band

2шт.

33

11439

SPRING

- brake cam

2шт.

34

A31178

OIL SEAL

SEAL - oil, differential brake cam

2шт.

35

11440

WASHER

- brake cam

2шт.

36

11441

BOOM

LEVER - outside brake

2шт.

37

A17958

LOCK SCREW,3/8" - 24 x 27/32"

SCREW - adjusting arm and end fork

2шт.

38

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - #11Woodruff, brake cam

2шт.

39

11432

BEARING

PIN - brake, Serial Range: band-cam

4шт.

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), , Brake band pin (Not shown) 3/32" x 3/4"

4шт.

391-825

ELECTRICAL WIRE

WIRE - lock, adjustment wire (Not shown)

2шт.
