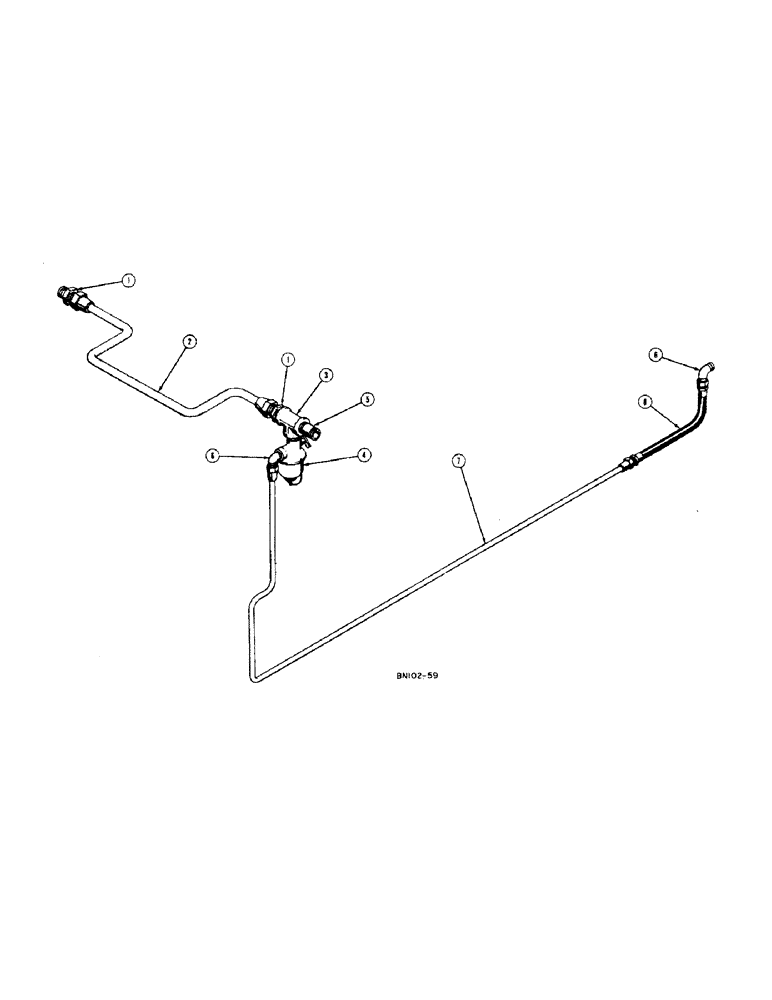

Запчасти Case 400 (086) - FUEL LINES (BACKHOE - GAS MODELS) (02) - FUEL SYSTEM

1

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - male (3/8 NPT x 1/2 JIC)

2шт.

2

35075

TUBE - fuel line, L.H. fuel, Serial Range: tank-strainer

1шт.

3

221-423

TEE,3/8" NPT

- pipe (3/8 NPT)

1шт.

4

33487

STRAINER ELEMENT

STRAINER - fuel (See figure 82 for breakdown)

1шт.

5

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - pipe (3/8 NPT x 1-1/2")

1шт.

6

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree male (1/8 NPT x 1/4 JIC)

2шт.

7

35076

TUBE - fuel line, Serial Range: strainer-hose

1шт.

8

36774

FORK

HOSE - fuel line, tube to fuel pump

1шт.
