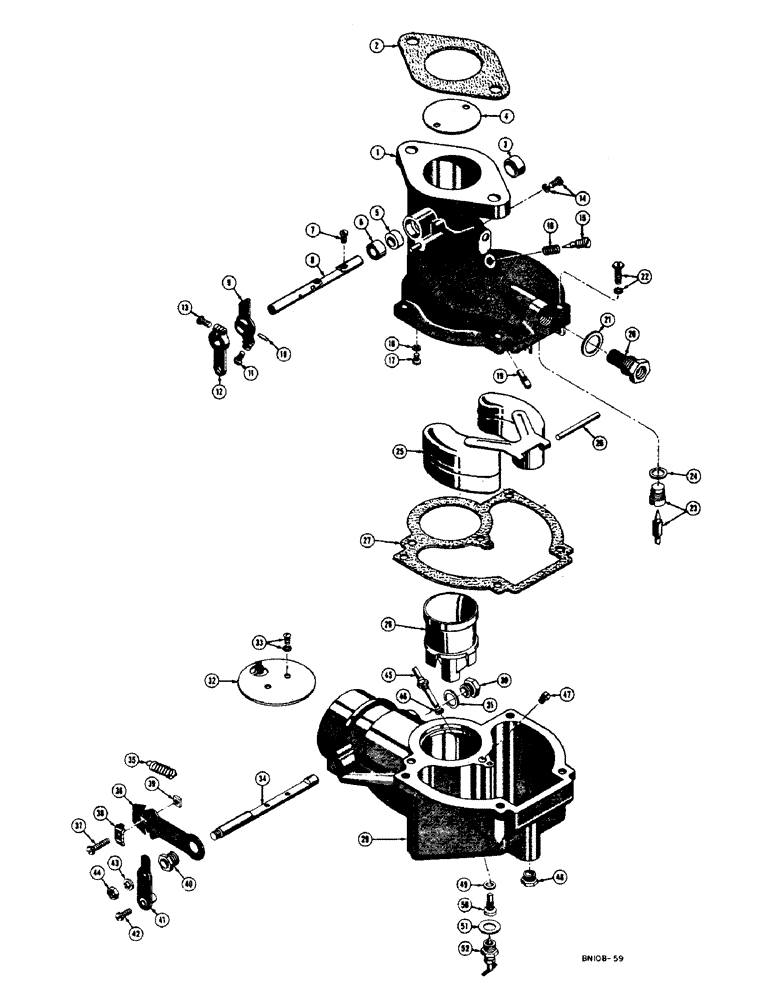

Запчасти Case 400 (026) - 11174 CARBURETOR (ZENITH MODEL NO. 62AJ-10) (02) - FUEL SYSTEM

11174

BRACKET

ZENITH CARBURETOR ASS'Y - (Model no. 62AJ-10)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - throttle

1шт.

2

66453H

GASKET

- flange

1шт.

Part of Gasket Kit P/N C181-65

1шт.

3

C131-2

PLUG - shaft hole

1шт.

4

C21-79

PLATE - throttle

1шт.

5

T48-10

SEAL - throttle shaft

1шт.

6

C131-33

RETAINER - shaft seal

1шт.

7

C136-3

SCREW - throttle plate

2шт.

Part of Gasket Kit P/N C181-65

1шт.

C29-1206

SHAFT AND STOP LEVER - throttle

1шт.

8

C23-579

SHAFT - throttle

1шт.

9

CR28-28

LEVER - throttle stop

1шт.

10

CT63-9

PIN - taper, throttle stop lever

1шт.

11

T8S8-10

SCREW - lever stop

1шт.

12

C24-10DJX3

LEVER - clamp, throttle

1шт.

13

T8S10-9

SCREW - clamp lever

1шт.

14

T301S8-6

SCREW - venturi

1шт.

Part of Gasket Kit P/N C181-65

1шт.

15

C46-38

NEEDLE - idle adjusting

1шт.

Part of Gasket Kit P/N C181-65

1шт.

16

C111-17

SPRING - idle adjusting

1шт.

17

C52-1-29

JET - economizer

1шт.

Part of Gasket Kit P/N C181-65

1шт.

18

T56-4

WASHER - economizer jet, fibre

1шт.

Part of Gasket Kit P/N C181-65

1шт.

Part of Repair Parts Kit P/N K11926

1шт.

19

C55-7-13

JET - idle adjusting

1шт.

Part of Gasket Kit P/N C181-65

1шт.

20

C150-12

PLUG AND SCREEN - filter

1шт.

21

T56-10

WASHER - filter plug, fibre

1шт.

Part of Gasket Kit P/N C181-65

1шт.

Part of Repair Parts Kit P/N K11926

1шт.

22

T318S12-12

SCREW - bowl to body (2 included in repair kit)

4шт.

Part of Gasket Kit P/N C181-65

1шт.

23

C81-1-45

VALVE AND SEAT - fuel

1шт.

Part of Gasket Kit P/N C181-65

1шт.

24

T56-23

WASHER - valve seat, fibre

1шт.

Part of Gasket Kit P/N C181-65

1шт.

Part of Repair Parts Kit P/N K11926

1шт.

25

C85-26

FLOAT ASS'Y

1шт.

26

C120-15

AXLE - float

1шт.

Part of Gasket Kit P/N C181-65

1шт.

27

C142-15

GASKET - bowl

1шт.

Part of Gasket Kit P/N C181-65

1шт.

Part of Repair Parts Kit P/N K11926

1шт.

28

B38-2AB-28

VENTURI

1шт.

29

B3-37F-2

BOWL - fuel

1шт.

30

C138-24

PLUG - choke shaft hole

1шт.

31

T56-23

WASHER - hole plug, fibre

1шт.

Part of Gasket Kit P/N C181-65

1шт.

Part of Repair Parts Kit P/N K11926

1шт.

32

C101-2

PLATE - choke

1шт.

33

T315B6-4

SCREW - choke plate

2шт.

Part of Gasket Kit P/N C181-65

1шт.

34

C105-18

SHAFT - choke

1шт.

35

C112-6

SPRING - choke lever

1шт.

36

C109-2-1

BRACKET - choke

1шт.

37

T8S8-10

SCREW - tube clamp

1шт.

38

C110-1

CLAMP - tube

1шт.

39

T21S8

NUT - clamp screw

1шт.

40

C140-7

SCREW - bracket

1шт.

41

C106-2

LEVER - choke

1шт.

42

T8S8-7

SCREW - swivel

1шт.

43

T45-8

WASHER - lock, shaft nut

1шт.

44

T22S8

NUT - choke shaft

1шт.

45

C66-25-1-70

JET - discharge

1шт.

Part of Gasket Kit P/N C181-65

1шт.

46

T56-48

WASHER - discharge jet, fibre

1шт.

Part of Gasket Kit P/N C181-65

1шт.

Part of Repair Parts Kit P/N K11926

1шт.

47

C77-18-14

JET - well vent

1шт.

Part of Gasket Kit P/N C181-65

1шт.

48

CT91-3

PLUG - drain, fuel bowl

1шт.

49

T56-24

WASHER - main jet, fibre

1шт.

Part of Gasket Kit P/N C181-65

1шт.

Part of Repair Parts Kit P/N K11926

1шт.

50

C52-6-36

JET - main

1шт.

Part of Gasket Kit P/N C181-65

1шт.

51

T56-23

WASHER - main jet adjustment, fibre

1шт.

Part of Gasket Kit P/N C181-65

1шт.

Part of Repair Parts Kit P/N K11926

1шт.

52

C71-21

JET ADJUSTMENT ASS'Y - main

1шт.

C181-65

KIT - gasket, Includes: Ref. 2, 7, 14, 15, 17, 18, 19, 21, 22, 23, 24, 26, 27, 31, 33, 45, 46, 47, 49, 50 and 51

1шт.

K-11926

KIT - repair parts, Includes: Ref. 18, 21, 24, 27, 31, 46, 49 and 51

1шт.
