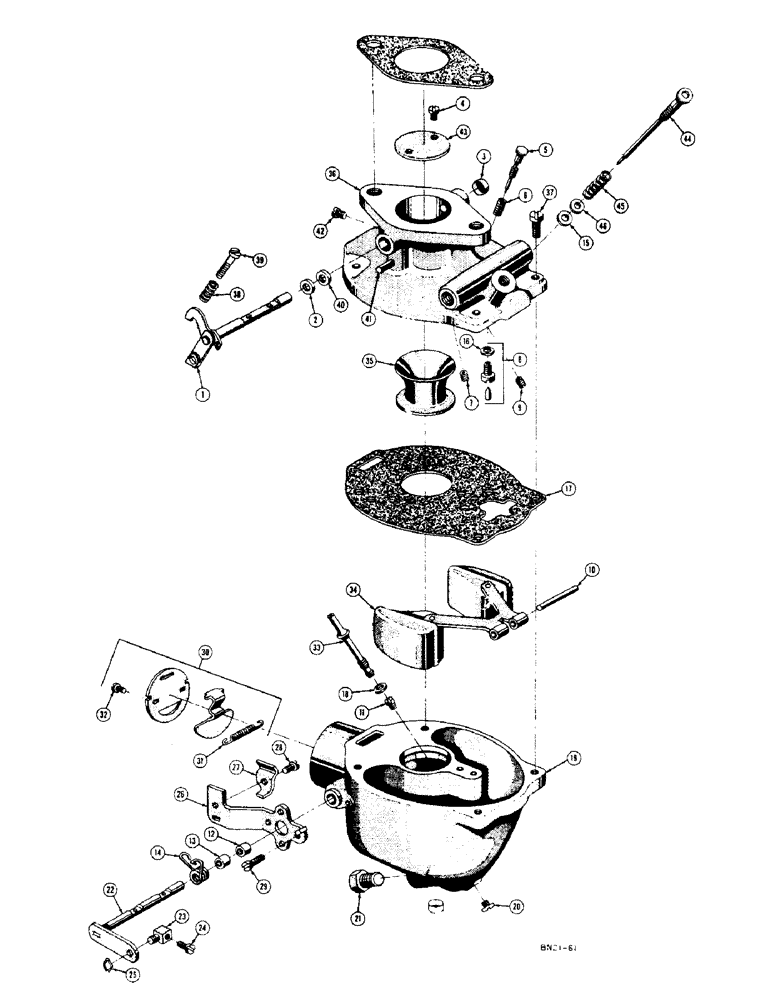

Запчасти Case 400 (024) - MARVEL-SCHEBLER CARBURETOR (02) - FUEL SYSTEM

34005

WINDSHIELD WIPER

CARBURETOR - gasoline, complete (Marvel-Schebler model #TSX 338)

1шт.

A43640

KIT

- carburetor repair

1шт.

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Throttle Shaft, Throttle Stop, and Lever Assy Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

2

55-231

RETAINER - throttle shaft packing

1шт.

3

55-230

CUP - throttle shaft

1шт.

4

15-A91

SCREW - choker fly and throttle fly

2шт.

5

43-33

NEEDLE - idle adjustment

1шт.

6

24-340

SPRING - idle needle

1шт.

7

49-264

JET - economizer

1шт.

8

A30244

SHUT-OFF VALVE

FLOAT VALVE, SEAT, AND GASKET ASS'Y - (Includes ref. #16)

1шт.

9

49-101L

JET - idle

1шт.

10

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

SHAFT - float lever

1шт.

11

49-164

JET - economizer

1шт.

12

44-39

PACKING - choker shaft

1шт.

13

55-243

RETAINER - choker shaft packing

1шт.

14

24-247

SPRING - choker return

1шт.

VTA690

X

KIT - gasket

1шт.

15

16-491

GASKET - high speed needle

1шт.

16

16-4

GASKET - float valve seat

1шт.

17

16-80

CARRIER

GASKET - throttle body to bowl

1шт.

18

16-449

GASKET - main nozzle

1шт.

19

10-3193

BODY - carburetor

1шт.

20

15-409

SCREW - nozzle hole

1шт.

21

99-7

PLUG - bowl drain

1шт.

22

26-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 8

CHOKER SHAFT AND LEVER ASS'Y

1шт.

23

28-49

SWIVEL - choker

1шт.

24

15-285

SCREW - choker swivel

1шт.

25

82-16

PIN - cotter, choker swivel

1шт.

29-528

CHOKER BRACKET ASS'Y

1шт.

26

29-104

BRACKET - choker

1шт.

27

29-81

CLIP - choker bracket

1шт.

28

15-285

SCREW - choker bracket clip

1шт.

29

15-A93

SCREW - choker bracket to carburetor body

1шт.

30

27-539

CHOKER FLY ASS'Y

1шт.

31

24-A43

SPRING - choker fly flapper

1шт.

32

15-A91

SCREW - choker fly

2шт.

33

47-589

NOZZLE

1шт.

34

30-600

FLOAT AND LEVER ASS'Y

1шт.

35

46-457

VENTURI

1шт.

36

227-1139

THROTTLE BODY - carburetor

1шт.

37

15-A82

SCREW - throttle, Serial Range: body-bowl

4шт.

38

24-262

SPRING - throttle stop screw

1шт.

39

15-42

SCREW - throttle stop

1шт.

40

44-63

PACKING - throttle shaft

1шт.

41

62-167

PIN - throttle stop

1шт.

42

80-171

PLUG - idle drilling

1шт.

43

14-169

FLY - throttle

1шт.

44

43-627

NEEDLE - high speed

1шт.

45

24-A1

SPRING - high speed needle

1шт.

46

78-299

WASHER - plain, high speed needle

1шт.
