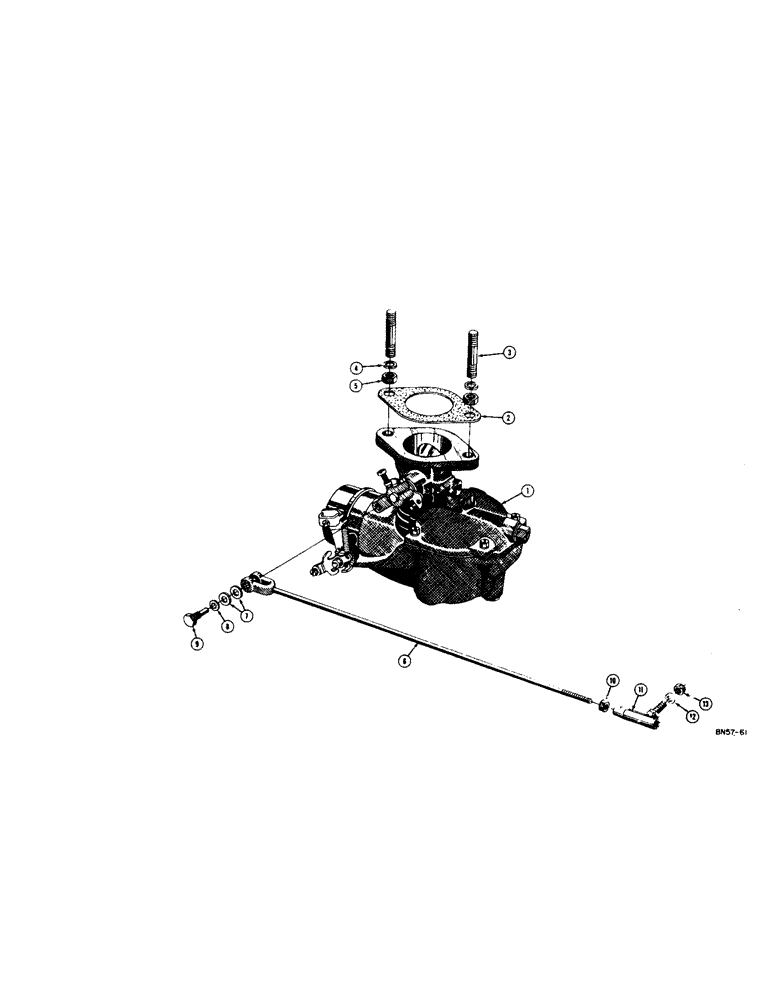

Запчасти Case 400 (022[1]) - (USED ON ALL MODELS WITH A TORQUE CONVERTER) (02) - FUEL SYSTEM

1

11174

BRACKET

CARBURETOR - gasoline (Zenith model #62AJ-10) (See figure 26 for breakdown)

1шт.

2

30160

GASKET

GASKET -, Serial Range: manifold-carburetor

1шт.

3

10227

STUD - carburetor to manifold (3/8 - 16 NC x 1-7/16)

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

6

10127

ROD ASS'Y - control, Serial Range: carburetor-governor

1шт.

7

11057

WASHER - plain (5/16)

2шт.

8

48525

X

WASHER - Shakeproof lock, internal tooth (5/16)

1шт.

9

10029

SCREW - yoke end, control rod to carburetor lever

1шт.

10

425-114

NUT,1/4"-28, G5

1шт.

11

10031

BALL JOINT - control, Serial Range: rod-governor

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

425-114

NUT,1/4"-28, G5

1шт.
