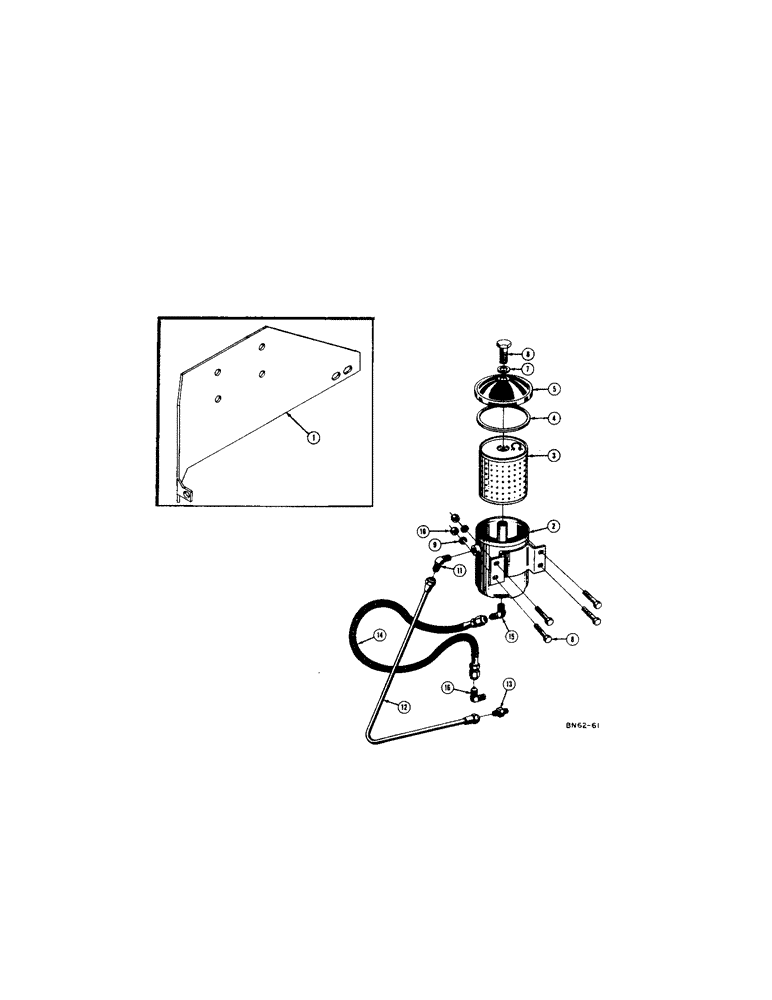

Запчасти Case 400 (056) - ENGINE OIL FILTER - DIESEL (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
38030
SHIM,.003" Thk
BRACKET - mounting, oil filter (Used on all 500 diesel models serial #3003033 and later, except backhoe models)
1шт.
35562
BRACKET - mounting, oil filter (Used on all 500 diesel backhoe models serial #3003033 and later) not shown
1шт.
33680
HOOK
BRACKET - mounting, oil filter (Used on all 400 diesel models) not shown
1шт.
12
D20271
HOSE - engine block to oil filter inlet (Used on all 500 diesel models serial #3000150 and later and on all 400 diesel models, except backhoe models serial #3000150 and later)
1шт.
34818
NUT
TUBE - engine block to oil filter inlet (Used on all 400 and 500 diesel 1956 models up to serial #3000150)
1шт.
37422
PIN
HOSE - engine block to oil filter inlet (Used on all 400 diesel backhoe models serial #3000150 and later)
1шт.
36566
HOSE - engine block to oil filter inlet (Used on all 400 and 500 diesel models, Serial Range: up-1956)
1шт.
13
221-51
SUN VISOR,Hex, 1/4" x 1/8" NPT
BUSHING - hex. pipe (1/4 NPT x 1/8 NPT)
1шт.
14
36566
HOSE - oil filter outlet to engine block (Used on all models except 500 diesel models serial #3000150 and later)
1шт.
D20233
HOSE - oil filter outlet to engine block (Used on all 500 diesel models serial #3000150 and later)
1шт.
16
221-1411
ELBOW,90 Degree, 1/8"-27, NPT
- 90 degree street, engine block (1/8 NPT)
1шт.
