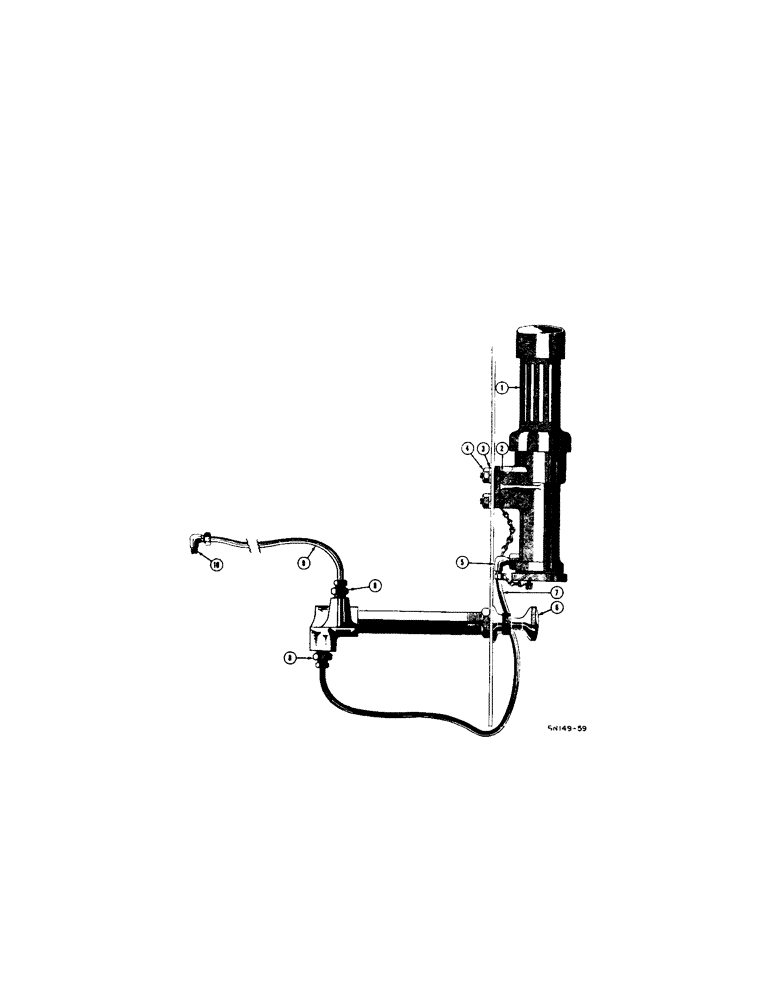

Запчасти Case 400 (056[1]) - COLD STARTING UNIT - DIESEL (01) - ENGINE

1

37415

KIT - cold starting

1шт.

O10060AB

TOOL - puncturing, cold starting

1шт.

A9977

BODY - lower (Not shown)

1шт.

A9978

GASKET - upper chamber (Not shown)

1шт.

A9980

PLUNGER - puncturing tool (Not shown)

1шт.

A9979

CHAMBER - puncturing tool, upper (Not shown)

1шт.

A9983

KNOB - plunger (Not shown)

1шт.

A7456

X

BALL - plunger lock (3/8" dia.) (Not shown)

1шт.

A9981

SPRING - plunger lock (Not shown)

1шт.

A9982

PLUG ASS'Y - cleaning (Not shown)

1шт.

A9986

GASKET

- strainer (Not shown)

1шт.

A9985

STRAINER - plug ass'y (Not shown)

1шт.

2

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

RHMS - puncturing tool (#10 - 32 NF x 1)

4шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

4

225-14210

NUT,#10-32

4шт.

5

34009

ELBOW - puncturing tool outlet

1шт.

6

A7444

PUMP - primer

1шт.

A7171

BRACKET

KIT - repair, primer pump (Not shown)

1шт.

O10491AB

X

"O" RING - seal

2шт.

7

30408

CANVAS

TUBING - puncturing tool to primer pump

1шт.

8

1281388C1

SEAL KIT

CONNECTOR - male (1/8)

2шт.

9

30409

TUBING - primer pump to spray nozzle

1шт.

10

O10065AB

NOZZLE - spray

1шт.
