Запчасти Case 400 (050) - WATER PUMP, FAN, FAN BELT, AND PULLEY - DIESEL (01) - ENGINE

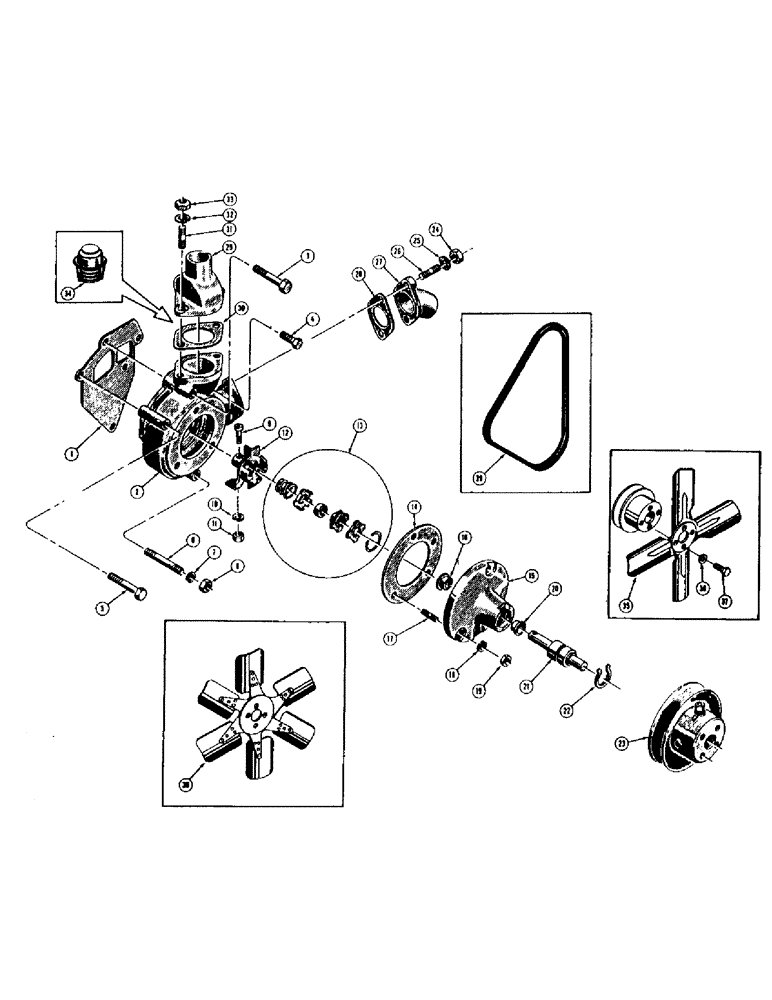

Схема запчастей Case 400 - (050) - WATER PUMP, FAN, FAN BELT, AND PULLEY - DIESEL (01) - ENGINE

Артикул

Название

Примечание

Количество

34871

BUSHING

PUMP - water, complete

1шт.

1

30253

GASKET - water pump body to cylinder head

1шт.

2

30172

SEAL

BODY - water pump

1шт.

3

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

5

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

6

11222

STUD - 3/8 - 16 NC x 3-1/4

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

9

169-102

SCREW,Sl Fil Hd, #10 - 24 x 1"

- impeller to shaft (#10 - 24 NC x 1)

1шт.

10

30251

FLEXIBLE HOSE

WASHER - lock, rust proof (#10)

1шт.

11

225-14110

NUT,#10-24

1шт.

12

30190

SIEVE

IMPELLER - water pump

1шт.

13

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Seal - water pump -155, 70 Duro, 3.987" ID x .103" Thk

1шт.

14

30254

GASKET - drive support to water pump

1шт.

15

30210

SUPPORT - water pump drive

1шт.

16

30212

BUSHING - drive shaft support

1шт.

17

30247

STUD - 3/8 - 16 NC x 1

3шт.

18

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock (3/8)

3шт.

19

VT4505

NUT - hex. (3/8 - 16 NC)

3шт.

20

30196

SLINGER - water pump

1шт.

21

1336867C1

SEAL PACKAGE

SHAFT AND BEARING - water pump drive

1шт.

22

30231

SNAP RING - water pump drive shaft retaining

1шт.

23

30352

HYDRAULIC PUMP

PULLEY - fan drive

1шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

VT3675

X

STUD - 3/8 - 16 NC x 1-1/2

2шт.

27

30142

ELBOW - water inlet

1шт.

28

30262

TUBE

GASKET - inlet elbow

1шт.

29

30174

ELBOW - water outlet

1шт.

30

NLS

NO LONGER SERVICED

- outlet elbow

1шт.

31

VT3675

X

STUD - 3/8 - 16 NC x 1-1/2

2шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

34

30292

X

THERMOSTAT

1шт.

35

A173040

FAN

- suction

1шт.

36

A173358

FAN

- pusher (Optional)

1шт.

37

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 - 18 NC x 3/4

4шт.

38

92-5

LOCK WASHER,5/16"

4шт.

39

30353

BELT - fan drive

1шт.

5969

KIT - repair, water pump

1шт.

Выбрано товаров: 41
