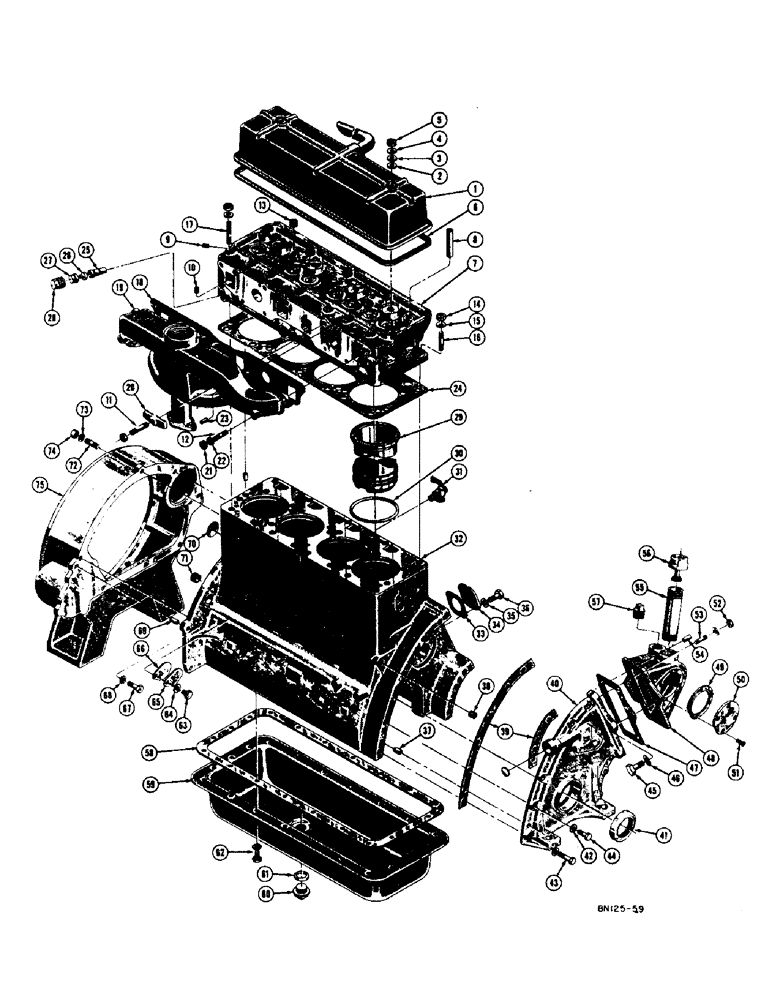

Запчасти Case 400 (040) - ENGINE BLOCK AND RELATED PARTS - DIESEL (01) - ENGINE

1

30565

COVER ASS'Y - cylinder head (Used on all diesel models, Serial Range: up-1956)

1шт.

11231

COVER ASS'Y - cylinder head (Used on all diesel models 1956 and later)

1шт.

2

30257

GASKET

- copper asbestos, cylinder head cover stud

2шт.

3

V20214

WASHER

- plain (3/8)

4шт.

4

48507

RUNNER

WASHER - Shakeproof lock, external tooth (7/16)

2шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

6

NLS

NO LONGER SERVICED

GASKET - cylinder head cover to cylinder head

1шт.

7

30042

HEAD ASS'Y - cylinder (Used on all diesel models without a torque converter)

1шт.

34841

HEAD ASS'Y - cylinder (Used on all diesel models with a torque converter)

1шт.

8

30068

TUBE - push rod

8шт.

9

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex. hd. pipe, oil gallery in cylinder head (1/8 NPT)

1шт.

10

A30029

PLUG

- fuse, cylinder head

1шт.

11

30248

HYDRAULIC PUMP

STUD - manifold crab (3/8 - 16 NC x 2-1/8)

4шт.

12

VT4501

STUD - manifold to cylinder head (3/8 - 16 NC x 1-11/16)

4шт.

13

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- pipe, cored vent holes in cylinder head (1/2 NPT)

2шт.

14

10142

LARGE PLATE

NUT - hex. (7/16 - 20 NF)

20шт.

15

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- plain (7/16)

20шт.

16

30320

STUD - cylinder head to block (7/16 - 14 NC x 7/16 - 20 NF x 2-1/2)

5шт.

17

30322

STUD - cylinder head to block (7/16 - 14 NC x 7/16 - 20 NF x 5-13/16)

15шт.

18

30111

COLLAR

GASKET - intake and exhaust manifold

1шт.

19

5981

MANIFOLD ASS'Y - intake and exhaust (Includes 1 - 30111 gasket) (Used on all diesel models, Serial Range: up-1956)

1шт.

33691

SEAT

MANIFOLD - intake and exhaust (Used on all diesel models 1956 and later)

1шт.

20

NLS

NO LONGER SERVICED

CRAB - manifold

4шт.

21

10452

SEALING RING

NUT - hex., special (3/8 - 16 NC)

8шт.

22

V20214

WASHER

- plain (3/8)

4шт.

23

30234

DOWEL - intake manifold to cylinder head

2шт.

24

30031

PRESSURE PIPE

GASKET - cylinder head

1шт.

25

30025

BODY ASS'Y - energy cell

4шт.

26

30022

SPRING

CAP - energy cell

4шт.

27

30027

PRESSURE PIPE

RETAINER - energy cell

4шт.

28

30026

RIGID TUBE

PLUG - energy cell retainer

4шт.

29

34030

PIN

SLEEVE - cylinder (3-3/8" bore)

4шт.

30

30013

PULLEY

PACKING - cylinder sleeve

8шт.

31

217-103

COCK, DRAIN

DRAIN COCK - water, block

1шт.

32

34840

AIR COMPRESSOR

BLOCK ASS'Y - engine, stripped (Used on all diesel models without a torque converter)

1шт.

6005

KEY

BLOCK ASS'Y - engine, short (Used on all diesel models without a torque converter)

1шт.

R12355

BLOCK ASS'Y - engine, stripped (Used on all diesel models with a torque converter)

1шт.

R12354

BLOCK ASS'Y - engine, short (Used on all diesel models with a torque converter)

1шт.

33

10123

GASKET - fuel pump hole cover

1шт.

34

10121

COVER - fuel pump hole

1шт.

35

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

WASHER - copper

2шт.

36

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Fuel pump hole cover to block Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

37

30233

DOWEL - gear cover to block (3/8" dia. x 3/4)

2шт.

38

VT3395

X

PLUG - pipe (1/4 NPT ctsk. hd.)

3шт.

39

30056

O-RING

GASKET - gear, Serial Range: cover-block

1шт.

40

30394

PIN

COVER - timing gear (Used on all diesel models without a torque converter)

1шт.

34875

O-RING

COVER - timing gear (Includes 1 - 10972 seal) (Used on all diesel models with a torque converter)

1шт.

41

10972

HOSE,Female, 1.5-2.5 mm2

SEAL - oil and dust, crankshaft front

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

43

NLS

NO LONGER SERVICED

HHCS - gear cover to block (3/8 - 16 NC x 1-5/8)

3шт.

44

10295

BUSHING

HHCS - gear cover to block (3/8 - 16 NC x 1-1/8)

5шт.

45

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Injection pump adapter to gear cover Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

47

30070

PULLEY

GASKET - injection pump adapter to gear cover

1шт.

48

30069

PULLEY

ADAPTER - injection pump

1шт.

49

30072

GASKET - adapter hole cover

1шт.

50

30073

COVER - adapter hole

1шт.

51

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

FHMS - adapter hole cover (#10 - 32 NF x 1/2)

4шт.

52

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

4шт.

53

VT3675

X

STUD - injection pump adapter to gear cover (3/8 - 16 NC x 1-1/2)

4шт.

54

30233

DOWEL - injection pump, Serial Range: adapter-block

2шт.

55

221-1264

FITTING

PIPE - oil filler (Used on all diesel models, Serial Range: up-1956)

1шт.

33696

HINGE

PIPE - oil filler (Used on all diesel models 1956 and later)

1шт.

56

10406

CAP ASS'Y - oil filler

1шт.

57

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe (1 NPT ext. sq. hd.)

1шт.

58

K956999

PLUG

GASKET - oil pan

1шт.

59

30081

BOLT,Hex Flg, 1/4"-20 x 1/2", Serr

PAN ASS'Y - oil

1шт.

60

VT4521

X

PLUG - drain, oil pan

1шт.

61

A30059

GASKET

- oil pan drain plug

1шт.

62

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- oil pan to block (5/16 - 18 NC x 3/4)

19шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Not shown 5/16"

19шт.

63

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- Flywheel pointer cover Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

64

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

65

10133

COVER - flywheel pointer

1шт.

66

10134

FELT - flywheel pointer cover

1шт.

67

10323

SCREW - flywheel housing to block (3/8 - 16 NC x 1-3/8)

6шт.

68

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

69

30327

DOWEL - flywheel housing to block (7/16" dia. x 1)

2шт.

70

VT3398

X

PLUG - Hubbard, camshaft rear bearing

1шт.

71

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - outside hex. (1/4 NPT x 1/8 NPT)

1шт.

72

30329

STUD - flywheel housing to block (3/8 - 16 NC x 1-5/8)

1шт.

73

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

74

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

75

30670

HOUSING - flywheel (Used on all diesel models without a torque converter)

1шт.

33693

DOOR SEAL

HOUSING - flywheel (Used on all diesel models with a torque converter)

1шт.

30437

CHAIN

STUD - air inlet flange on manifold (5/16 - 18 NC x 1-3/8), part not shown

2шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Gear cover to block, Part not shown Hex, 3/8"-16 x 1 3/4", G5

1шт.

45105

HHCS - cylinder head plug (1/2 - 13 NC x 7/8), part not shown

1шт.

30323

O-RING

WASHER - copper asbestos, cylinder head plug screw (Rear), part not shown

1шт.

30159

SCREW - cylinder head plug, rear (3/8 - 16 NC x 1/2), part not shown

2шт.

221-833

PLUG - pipe, cylinder head contact face (3/8 NPT), part not shown

2шт.

41-1032

PLUG,Cup, 2"

- core hole, part not shown

1шт.

30395

PLUG - pipe, engine block cross drill at rear side (1/8 NPT), part not shown

2шт.

30087

CLEVIS

PIN - flywheel pointer, part not shown

1шт.

25-106

NUT,3/8"-16, G5

- hex., gear cover to block (3/8 - 16 NC), part not shown

13шт.

VT4501

STUD - gear cover to block (3/8 - 16 NC x 1-11/16), part not shown

2шт.

VT3675

X

STUD - gear cover to block (3/8 - 16 NC x 1-1/2), part not shown

2шт.

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, thermocouple hole (1/8 NPT), part not shown

1шт.
