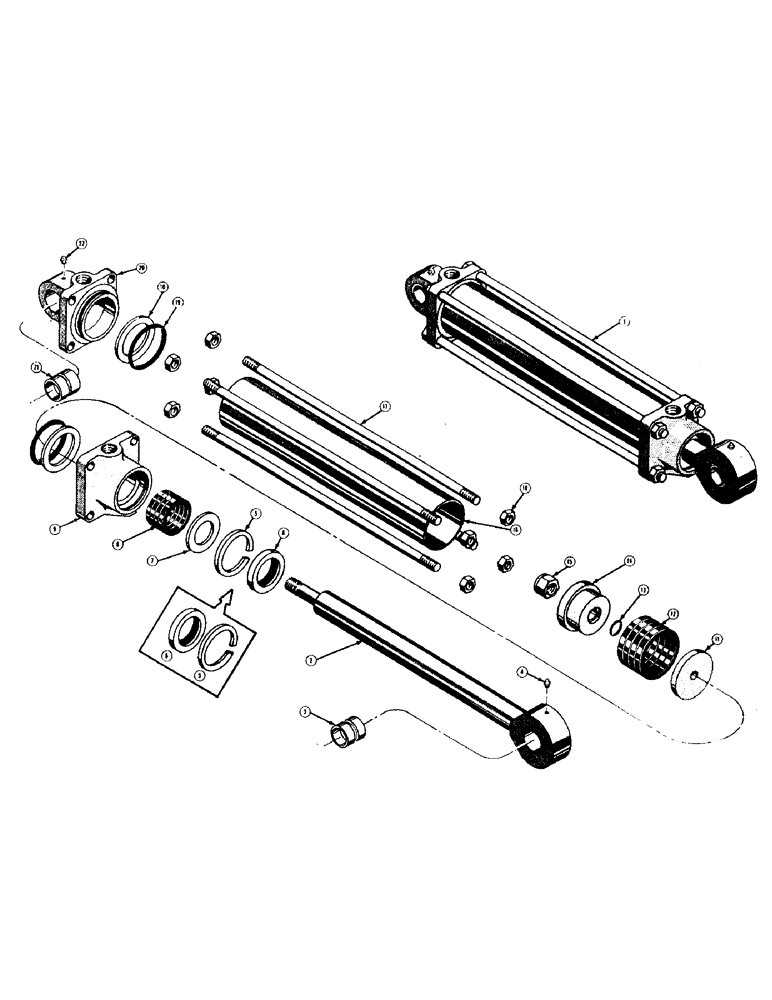

Запчасти Case 400 (294) - BACKHOE HYDRAULIC BOOM AND CROWD CYLINDERS (07) - HYDRAULIC SYSTEM

1

34886

CYLINDER - boom and crowd, hydraulic (Original equipment - see D23761)

1шт.

D23761

CYLINDER - boom and crowd, hydraulic (Replacement)

1шт.

2

D20035

ROD - piston

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

4

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT (Lincoln #5000) 1/8"-27 x .66 lg

1шт.

5

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , Seal, piston rod 2.75", Int, #275

1шт.

6

31525

WIPER SEAL

- wiper, piston rod

1шт.

7

31539

WASHER

- packing, piston rod

1шт.

8

17598

PACKING

- piston rod

1шт.

9

73348

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24988 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

10

D24988

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25498

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

11

31519

LOCKING PLATE

WASHER - piston packing

1шт.

12

31526

PACKING

- piston

1шт.

13

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Seal, Used with D23737 piston only -214, 70 Duro, .984" ID x .139" Thk

1шт.

14

31520

PISTON - cylinder (No "O" ring) (Use D23737, D23688, and A7623)

1шт.

D23737

PISTON - cylinder (With "O" ring) (When replacing 31520 piston without "O" ring, also order 1 - A7623 "O" ring and 1 - D23688 nut)

1шт.

15

231-24416

LOCK NUT,1"-14, G5

NUT - lock (31520 piston only) (1 - 14 NF)

1шт.

131-19

LOCK NUT,1"-14, GB

NUT - lock (D23737 piston only) (1 - 14 NF)

1шт.

16

34884

CABLE PULLING GRIP,3.995" ID, 4.387" OD, 38.447" Length

TUBE - cylinder

1шт.

17

34885

ROD - tie

4шт.

18

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18 NF)

8шт.

19

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - seal, cylinder ends to tube

2шт.

20

D20037

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24988 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

22

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT (Lincoln #5000) 1/8"-27 x .66 lg

1шт.
