Запчасти Case 400 (290) - BACKHOE HYDRAULIC SWING CYLINDERS (07) - HYDRAULIC SYSTEM

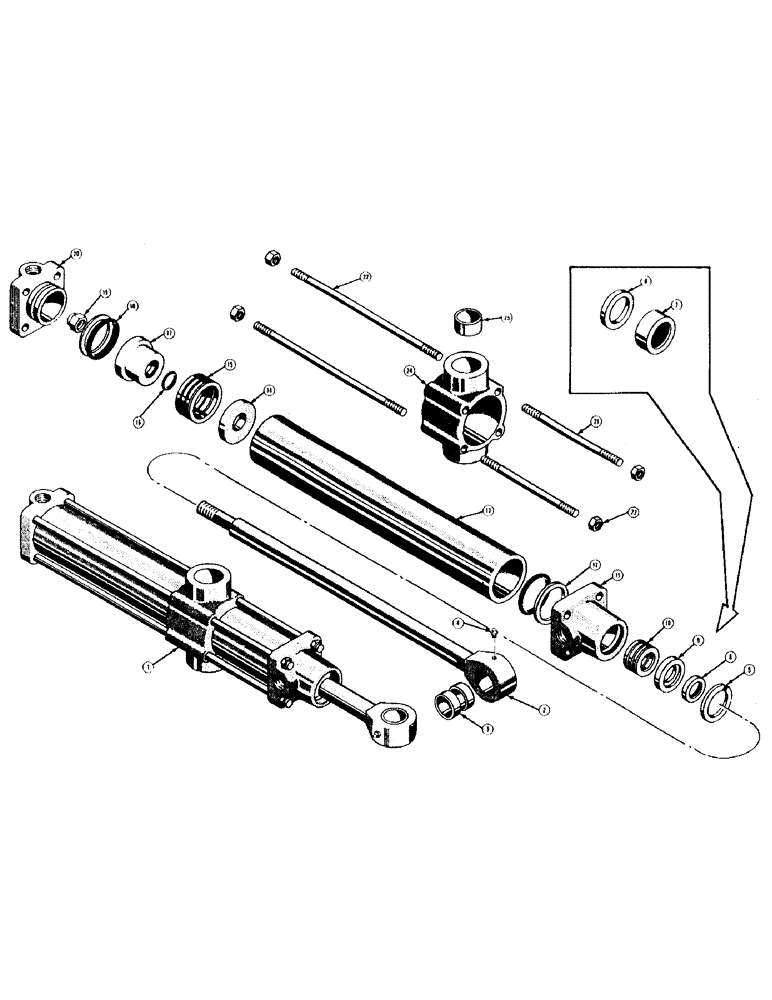

Схема запчастей Case 400 - (290) - BACKHOE HYDRAULIC SWING CYLINDERS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

34920

CYLINDER - swing, hydraulic (Original equipment - use D23257)

2шт.

38871

CYLINDER - swing, hydraulic (Original equipment - use D23257)

2шт.

D23257

CYLINDER - swing, hydraulic (Replacement only)

2шт.

2

D20032

ROD - piston (34920 cylinder only)

1шт.

D20027

ROD - piston (38871 and D23257 cylinders only)

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

4

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT (Lincoln #5000) 1/8"-27 x .66 lg

1шт.

5

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

6

36259

WASHER

- packing, piston rod (Use D23962 and D23933)

1шт.

7

17603

WIPER SEAL

- wiper, piston rod (Use D23962 and D23933)

1шт.

8

324103R91

OIL SEAL

SEAL - wiper, piston rod (Also order 1 - D23933 gland when replacing 17603 seal)

1шт.

9

D23933

GLAND

- seal, wiper (Also order 1 - D23962 seal when replacing 36259 washer)

1шт.

10

17597

PACKING

- piston rod

1шт.

11

30628

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

12

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

13

35365

GASKET

TUBE - cylinder (34920 cylinder only)

1шт.

38372

TUBE - cylinder (3" O.D. - 38871 cylinder only)

1шт.

D23250

TUBE - cylinder (2-7/8" O.D. - D23257 cylinder only)

1шт.

14

30630

CARTRIDGE

WASHER - packing, piston

1шт.

15

17598

PACKING

- piston

1шт.

16

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - seal, piston rod (Used with D23738 piston only)

1шт.

17

30631

X

PISTON - cylinder (No "O" ring) (Use D23738, D23739, and O3522CK)

1шт.

D23738

BLOCK

PISTON - cylinder (With "O" ring) (When replacing 30631 piston without "O" ring, also order 1 - O3522CK "O" ring and 1 - D23739 locknut)

1шт.

18

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

"O" RING - seal, cylinder ends to tube

2шт.

19

131-1333

LOCK NUT,Jam, 1"-14

NUT - lock (30631 piston only) (3/4 - 16 NF)

1шт.

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, (D23738 piston only) 3/4"-16, GB

1шт.

20

34888

END

- cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

21

34922

ROD - tie, rear (9-1/4" long) (34920 cylinder only)

4шт.

38369

ROD - tie, rear (7-5/8" long) (38871 and D23257 cylinders only)

4шт.

22

34921

ROD - tie, front (8-3/8" long) (34920 cylinder only)

4шт.

38370

ROD - tie, front (13-1/4" long) (38871 and D23257 cylinders only)

4шт.

23

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF)

8шт.

24

D20528

TRUNNION - hydraulic cylinder (For 3" O.D. cylinder tube only)

1шт.

D21905

TRUNNION - hydraulic cylinder (For 2-7/8" O.D. cylinder tube only)

1шт.

25

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

Выбрано товаров: 38
