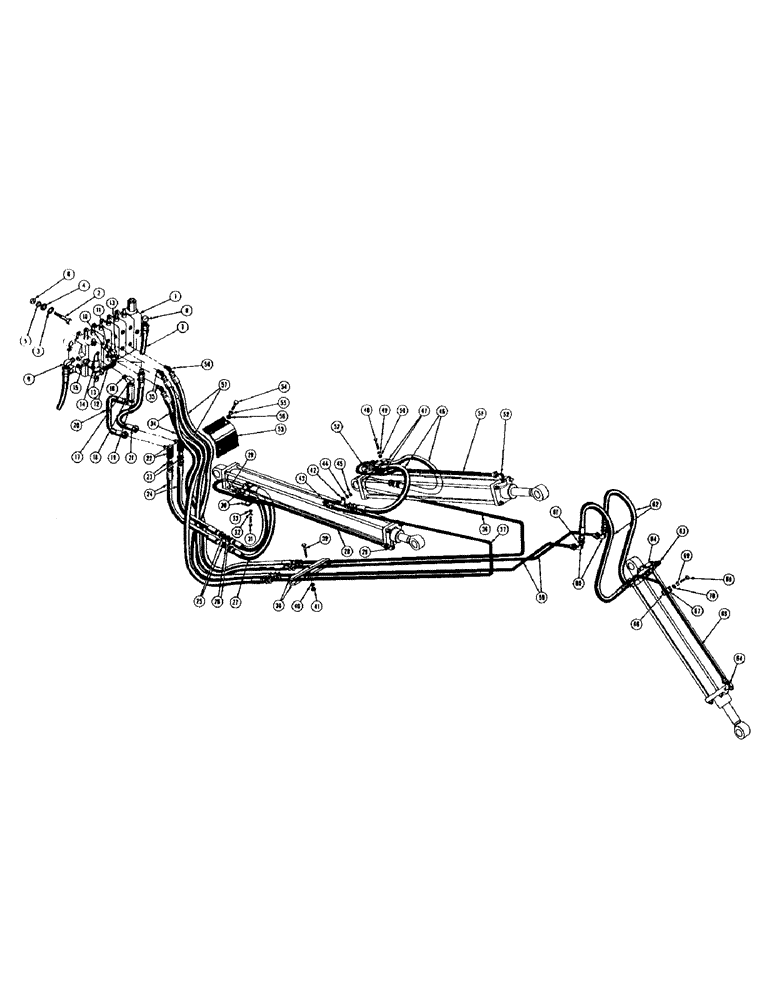

Запчасти Case 400 (280) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, VALVE (07) - HYDRAULIC SYSTEM

1

D24433

VALVE

- control, backhoe (Use D23812)

1шт.

D24433

VALVE

- control, backhoe (See figure 284 for breakdown) 16462 and D23812 are the same for field service

1шт.

2

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2 - 20 NF x 2-1/2

3шт.

3

NLS

NO LONGER SERVICED

SHIM - mounting, valve

1шт.

4

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- plain (17/32" I.D. x 1- O.D. x 3/32" thick) 1/2"

3шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

6

129-125

NUT,1/2"-20, G5

3шт.

7

35199

PIPE FITTING

HOSE - R.H. side of control valve to pump pressure line (Used with quick disconnect)

1шт.

D21788

HOSE

- R.H. side of control valve to pump pressure line (Used when quick disconnect is not used)

1шт.

35146

DISCONNECT - quick, complete (If used) Not shown

1шт.

36262

DISCONNECT - quick, male half (Not shown)

1шт.

36263

DISCONNECT - quick, female half (Not shown)

1шт.

8

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- 90 degree street (3/4 NPT)

1шт.

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe, used with quick disconnect only (3/4 NPT x 3") Not shown

1шт.

60300012

PIPE

NIPPLE - pipe, used with quick disconnect only (3/4 NPT x 1-3/8") Not shown

1шт.

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- 90 degree street, used with quick disconnect only (3/4 NPT) Not shown

1шт.

35146

DISCONNECT - quick, complete (If used) Not shown

1шт.

36262

DISCONNECT - quick, male half (Not shown)

1шт.

36263

DISCONNECT - quick, female half (Not shown)

1шт.

9

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, used when quick disconnect is not used (3/4 NPT x 3/4 JIC)

1шт.

10

D21315

NIPPLE - pipe (1/2 NPT x 3-1/2")

1шт.

11

217-1163

TEE,1/2"-14 Female

- female (1/2 NPT)

1шт.

12

35154

TUBE - pipe tee to relief valve (Up to backhoe serial #4009030) Not shown

1шт.

D20251

TUBE - pipe tee to relief valve (From backhoe serial #4009030)

1шт.

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (1/2 NPT x 5/8 JIC) (Up to backhoe serial #4009030)

2шт.

13

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC) (From backhoe serial #4009030)

2шт.

14

33959

PIPE FITTING

VALVE - relief, boom down pressure (Has #985 on casting) See figure288 for breakdown (Use D24452)

1шт.

D24452

VALVE

- relief, boom down pressure (Has #2716 on casting) See figure 288 for breakdown

1шт.

15

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe (1/2 NPT x 2") (Up to backhoe serial #4009030)

1шт.

D21315

NIPPLE - pipe (1/2 NPT x 3-1/2") (From backhoe serial #4009030)

1шт.

221-60

TUBE

BUSHING - hex. pipe (3/4 NPT x 1/2 NPT) (Up to backhoe serial #4009030) Not shown

1шт.

16

D21316

NIPPLE - pipe (1/2 NPT x 2"), boom cylinder hydraulics

1шт.

17

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90 degree street (1/2 NPT), boom cylinder hydraulics

1шт.

18

D41719

VALVE

- flow control (See figure 272 for breakdown), boom cylinder hydraulics

1шт.

19

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC), boom cylinder hydraulics

1шт.

20

35178

WEDGE

TUBE - flow control valve to L.H. special male elbow (Use D20335), boom cylinder hydraulics

1шт.

D20335

HOSE - flow control valve to L.H. special male elbow, boom cylinder hydraulics

1шт.

21

35184

TUBE - pipe tee to R.H. special male elbow (Use D21317), boom cylinder hydraulics

1шт.

D21317

HOSE - pipe tee to R.H. special male elbow (22-1/2" long), boom cylinder hydraulics

1шт.

36254

LEVER

HOSE - pipe tee to R.H. special male elbow (26" long) (Used on some models), boom cylinder hydraulics

1шт.

22

50880

ELBOW - special 90 degree male, boom cylinder hydraulics 1.312, Int, #131

2шт.

23

425-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8 - 14 NF), boom cylinder hydraulics

2шт.

24

35543

HOSE

- special male elbow to bulkhead union, boom cylinder hydraulics

2шт.

25

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ, boom cylinder hydraulics

2шт.

26

425-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8 - 14 NF), boom cylinder hydraulics

2шт.

27

35209

HOSE ASSY.

HOSE - bulkhead union to boom cylinder, hydraulics

2шт.

28

35206

TUBE - boom cylinder, rear port, hydraulics

1шт.

29

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC), boom cylinder hydraulics

2шт.

30

D33316

CLAMP

PLATE - clamp, boom cylinder hydraulics

2шт.

31

414-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

HHCS - 5/16 - 24 NF x 1-3/4, boom cylinder hydraulics

1шт.

32

92-5

LOCK WASHER,5/16"

boom cylinder hydraulics 5/16"

1шт.

33

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF), Boom cylinder hydraulics

1шт.

34

35194

OLIVE

HOSE - control valve to crowd cylinder, hydraulics

2шт.

35

86513002

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male (1/2 NPT x 5/8 JIC), crowd cylinder hydraulics

2шт.

36

35283

TUBE - control valve to crowd cylinder, R.H., hydraulics

1шт.

37

35284

TUBE - control valve to crowd cylinder, L.H., hydraulics

1шт.

38

35217

CLAMP - tube, crowd cylinder hydraulics

2шт.

39

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

Hex, 3/8"-24 x 2 1/4", G5, Crowd cylinder hydraulics

1шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Crowd cylinder hydraulics 3/8"

1шт.

41

129-123

NUT,3/8"-24, G5

Crowd cylinder hydraulics 3/8"-24, G5

1шт.

42

D20043

CLAMP - tube, crowd cylinder hydraulics

2шт.

43

414-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

HHCS - 1/4 - 28 NF x 1-1/4, crowd cylinder hydraulics

2шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crowd cylinder hydraulics 1/4"

2шт.

45

425-114

NUT,1/4"-28, G5

Crowd cylinder hydraulics 1/4"-28, G5

2шт.

46

35197

SHEAVE

HOSE - tube to crowd cylinder, hydraulics

2шт.

47

D33316

CLAMP

PLATE - clamp, crowd cylinder hydraulics

2шт.

48

414-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

HHCS - 5/16 - 24 NF x 1-3/4, crowd cylinder hydraulics

1шт.

49

92-5

LOCK WASHER,5/16"

crowd cylinder hydraulics 5/16"

1шт.

50

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF), Crowd cylinder hydraulics

1шт.

51

35206

TUBE - crowd cylinder, rear port, hydraulics

1шт.

52

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC), crowd cylinder hydraulics

2шт.

53

35192

BRACKET - hose stabilizer, crowd cylinder hydraulics

1шт.

54

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8 - 24 NF x 1-3/4, crowd cylinder hydraulics

4шт.

55

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Crowd cylinder hydraulics 3/8"

4шт.

56

129-123

NUT,3/8"-24, G5

Crowd cylinder hydraulics 3/8"-24, G5

4шт.

57

35194

OLIVE

HOSE - control valve to bucket cylinder, hydraulics

2шт.

58

86513002

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male (1/2 NPT x 5/8 JIC), bucket cylinder hydraulics

2шт.

59

35195

TUBE - bucket cylinder (Inside boom), hydraulics

2шт.

60

D21699

ELBOW - 90 degree male, bulkhead (5/8 JIC x 5/8 JIC), bucket cylinder hydraulics

2шт.

61

425-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8 - 14 NF), bucket cylinder hydraulics

2шт.

62

19178

HOSE

- bucket cylinder, hydraulics

2шт.

63

35025

TUBE - bucket cylinder, front port (Used when male connector is used only) (See D20255), hydraulics

1шт.

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (1/2 NPT x 5/8 JIC) (35025 tube), bucket cylinder hydraulics

1шт.

D20255

TUBE - bucket cylinder, front port (Used when male elbow is used only) (See 35025), hydraulics

1шт.

64

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC), bucket cylinder hydraulics

2шт.

65

35027

HYD TUBE

TUBE - bucket cylinder, rear port, hydraulics

1шт.

66

D33316

CLAMP

PLATE - clamp, bucket cylinder hydraulics

1шт.

67

17179

PLATE - clamp, bucket cylinder hydraulics

1шт.

68

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Bucket cylinder hydraulics Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

69

92-5

LOCK WASHER,5/16"

bucket cylinder hydraulics 5/16"

1шт.

70

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF), Bucket cylinder hydraulics

1шт.
