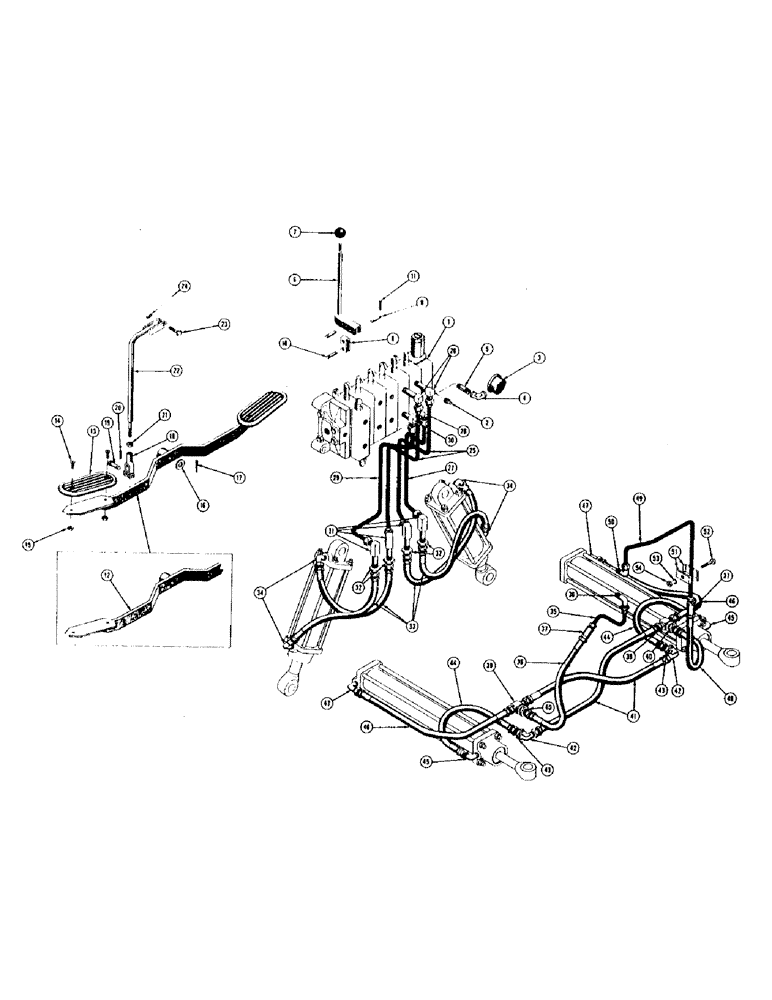

Запчасти Case 400 (276) - SWING CYLINDER AND STABILIZER CYLINDER HYDRAULICS, BACKHOE (07) - HYDRAULIC SYSTEM

1

D24433

VALVE

- control, backhoe (Use D23812)

1шт.

D24433

VALVE

- control, backhoe (See figure 284 for breakdown) 34642 and D23812 are the same for field service

1шт.

2

217-442

PLUG,3/4" - 14

- pipe (3/4 NPT sq. hd.)

1шт.

3

35117

X

GAUGE - oil pressure (Optional)

1шт.

4

221-1395

FITTING

ELBOW - reducing pipe, used with oil pressure gauge (3/4 NPT x 1/4 NPT)

1шт.

5

60300012

PIPE

NIPPLE - close pipe, used with oil pressure gauge (3/4 NPT)

1шт.

6

35159

LEVER - valve, crowd and bucket cylinder control (9-3/4")

2шт.

35160

WASHER

LEVER - valve, stabilizer cylinder coontrol (8-1/2")

2шт.

35382

LEVER - valve, boom cylinder control (11-1/4")

1шт.

7

70213

KNOB

- valve control lever

5шт.

8

35161

LINK - mounting, valve lever

5шт.

9

35173

PIN

- yoke, lever to link (Also, Serial Range: lever-valve)

10шт.

10

35172

PIN - yoke, Serial Range: link-valve

5шт.

11

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

30шт.

12

35266

BAR - control, swing cylinder

1шт.

13

35253

NUT

PEDAL - rubber, swing cylinder control bar

2шт.

14

74-412

FHMS - 1/4 - 28 NF x 3/4

4шт.

15

425-114

NUT,1/4"-28, G5

4шт.

16

195-45

WASHER,3/4"

- plain (13/16" I.D. x 1-1/2" O.D. x 3/16" thick)

1шт.

17

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

18

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

END - adjustable yoke, swing cylinder control rod

1шт.

19

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

21

129-123

NUT,3/8"-24, G5

1шт.

22

34932

ROD - swing cylinder control

1шт.

23

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8 - 24 NF x 1-3/4

1шт.

24

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF)

1шт.

25

35166

KEY

TUBE - control valve to upper stabilizer cylinder ports, upper section, hydraulics

2шт.

26

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, extra long (1/2 NPT x 1/2 JIC), stabilizer cylinder hydraulics

2шт.

27

NLS

NO LONGER SERVICED

TUBE - upper valve port to lower stabilizer cylinder port, R.H. (Upper section), hydraulics

1шт.

28

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 1/2 JIC), stabilizer cylinder hydraulics

1шт.

29

35182

TUBE - lower valve port to lower stabilizer cylinder port, L.H. (Upper section), hydraulics

1шт.

30

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 1/2 JIC), stabilizer cylinder hydraulics

1шт.

31

50881

ELBOW - 90 degree bulkhead, stabilizer cylinder hydraulics

4шт.

32

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4 - 16 NF), stabilizer cylinder hydraulics

4шт.

33

35122

SPACER

HOSE - bulkhead elbow to stabilizer cylinder ports (Used up to serial #3000015), hydraulics

4шт.

36210

HOSE

- bulkhead elbow to stabilizer cylinder ports (Used from serial #3000015), hydraulics

4шт.

34

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 1/2 JIC), stabilizer cylinder hydraulics

4шт.

35

35051

SPRING CUP

TUBE - lower valve port to L.H. bulkhead tee, upper section, swing cylinder hydraulics

1шт.

36

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 1/2 JIC), swing cylinder hydraulics

1шт.

35146

DISCONNECT - quick, complete, swing cylinder hydraulics

2шт.

36262

DISCONNECT - quick, male half, swing cylinder hydraulics

1шт.

36263

DISCONNECT - quick, female half, swing cylinder hydraulics

1шт.

37

221-1337

COUPLING,Pipe, 3/8" NPT

- pipe (3/8 NPT) Required when quick disconnects are not used, swing cylinder hydraulics

2шт.

38

35214

BELT, TRANSMISSION

HOSE - lower valve port to L.H. bulkhead tee, lower section, swing cylinder hydraulics

1шт.

39

218-508

TEE - bulkhead (1/2 JIC), swing cylinder hydraulics

2шт.

40

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4 - 16 NF), swing cylinder hydraulics

2шт.

41

35221

SPINDLE

HOSE - cross over, L.H. bulkhead tee to R.H. bulkhead elbow (Also R.H. bulkhead tee to L.H. bulkhead elbow), swing cylinder hydraulics

2шт.

42

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

(1/2 JIC), Swing cylinder hydraulics 90º Blkhd, 3/4"-16, 37º x 3/4"-16, 37º

2шт.

43

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4 - 16 NF), swing cylinder hydraulics

2шт.

44

35223

PLATE

HOSE - bulkhead elbow to rear swing cylinder ports, hydraulics

2шт.

45

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- special flow restrictor, rear swing cylinder ports, hydraulics

2шт.

46

36445

HOSE - bulkhead tee to front swing cylinder ports, hydraulics

2шт.

47

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 1/2 JIC), swing cylinder hydraulics

2шт.

48

35214

BELT, TRANSMISSION

HOSE - upper valve port to R.H. bulkhead tee, lower section (Required when quick disconnect is used), swing cylinder hydraulics

1шт.

36250

SPRING

HOSE - upper valve port to R.H. bulkhead tee, lower section (Required when pipe coupling is used), swing cylinder hydraulics

1шт.

49

35044

SLIDE

TUBE - upper valve port to R.H. bulkhead tee, upper section (Required when quick disconnect is used), swing cylinder hydraulics

1шт.

D20263

TUBE - upper valve port to R.H. bulkhead tee, upper section (Required when pipe coupling is used), swing cylinder hydraulics

1шт.

50

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 1/2 JIC), swing cylinder hydraulics

1шт.

51

32978

PLATE ASSY.

PLATE - clamp, swing cylinder hydraulics

2шт.

52

414-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2, swing cylinder hydraulics

1шт.

53

92-5

LOCK WASHER,5/16"

swing cylinder hydraulics 5/16"

1шт.

54

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF), Swing cylinder hydraulics

1шт.
