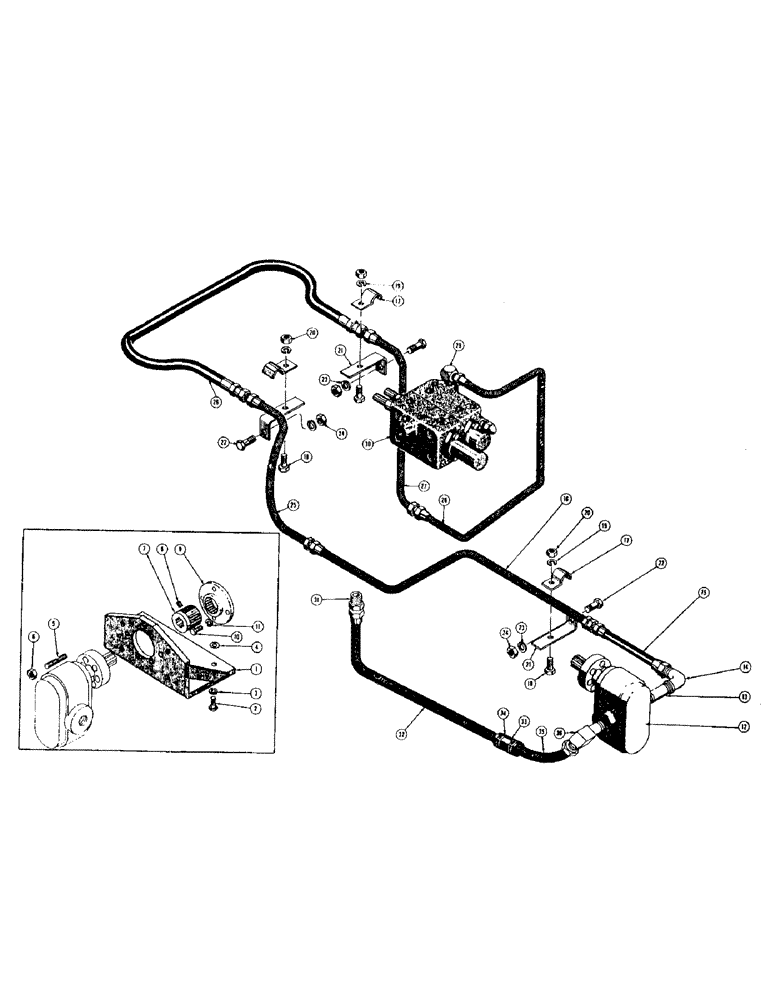

Запчасти Case 400 (274) - BACKHOE PRIMARY HYDRAULIC SYSTEM, (USED FROM SERIAL #3003033 (07) - HYDRAULIC SYSTEM

1

30640

BRACKET - pump mounting (Gas models only)

1шт.

2

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

Pump mounting bracket Hex, 5/8"-18 x 1 1/2", G5

2шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

33496

BRAKE LINING

SHIM - pump mounting bracket

1шт.

425-1110

NUT,5/8"-18, G5

Not shown 5/8"-18, G5

2шт.

5

46513

ROD

STUD - 3/8 - 24 NF x 2

6шт.

6

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF)

6шт.

7

R13925

COUPLING

- hydraulic pump, male

1шт.

8

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, male pump coupling (5/16 - 18 NC x 1/2)

1шт.

9

R13926

COUPLING

- hydraulic pump, female

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 - 18 NC x 3/4

4шт.

11

92-5

LOCK WASHER,5/16"

4шт.

12

74838

PUMP - hydraulic (See figure 194 for breakdown)

1шт.

13

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe (3/4 NPT x 3")

1шт.

14

9402906

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, Fem NPTF

- 90 degree female (3/4 NPT x 3/4 JIC)

1шт.

15

39559

HOSE - pump to pressure line (Gas models only)

1шт.

38540

LINE

HOSE - pump to pressure line (Diesel models only)

1шт.

16

39553

HUB

TUBE - pressure line, pump to backhoe valve (Center section)

1шт.

17

49789

CLAMP

- tube

3шт.

18

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

19

92-5

LOCK WASHER,5/16"

3шт.

20

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

3шт.

21

33422

BRACKET - mounting, tube clamp

3шт.

22

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

25

D21096

TUBE - pressure line, pump to backhoe valve (Rear section)

1шт.

26

D21788

HOSE

- pressure line to backhoe valve inlet

1шт.

27

D21097

TUBE - backhoe valve outlet to loader or dozer valve inlet (Rear section)

1шт.

28

39552

HUB

TUBE - pressure line to loader or dozer valve inlet (Center section)

1шт.

29

218-495

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 3/4 JIC)

1шт.

30

16400

VALVE - control, hydraulic (See figure 178 for breakdown)

1шт.

31

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male (1 NPT x 1 JIC)

1шт.

32

35258

TUBE - suction line, rear section

1шт.

33

36467

TUBE - suction line, center section

1шт.

34

49766

AUGER

CLAMP - hose, suction line

2шт.

35

39558

HUB

TUBE - suction line, front section (Gas models only)

1шт.

39554

TUBE - suction line, front section (Diesel models only)

1шт.

36

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male (1 NPT x 1 JIC)

1шт.
