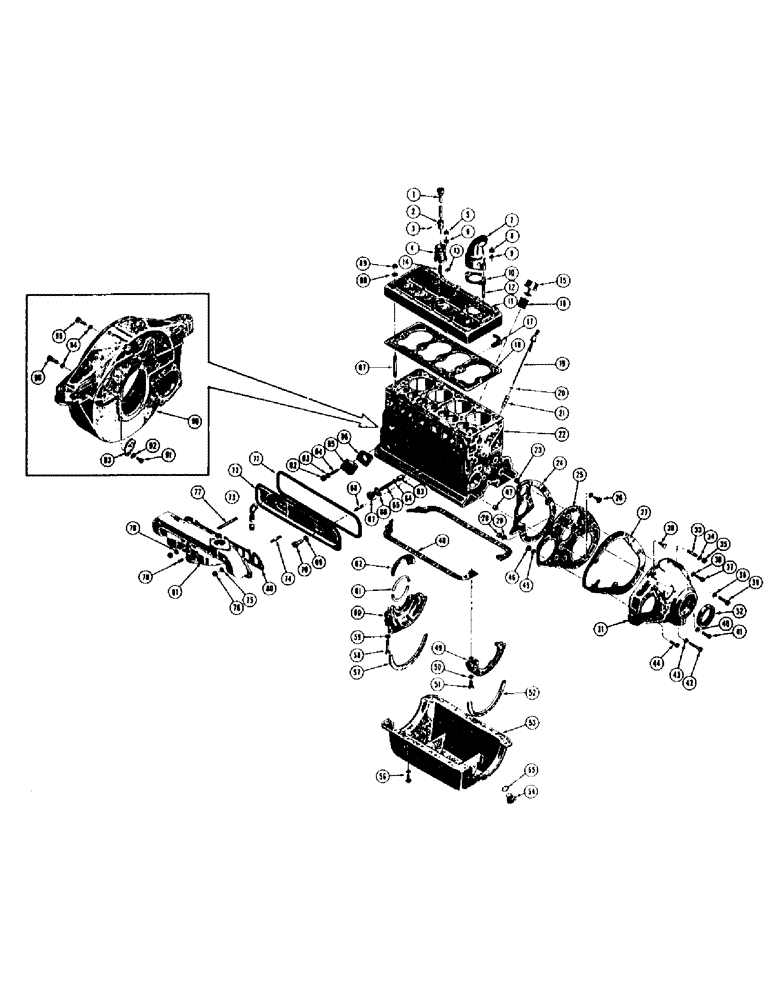

Запчасти Case 400 (008) - ENGINE BLOCK AND RELATED PARTS - GAS (01) - ENGINE

1

10572

SHAFT - distributor drive

1шт.

2

10573

FITTING

COUPLING - distributor drive shaft

1шт.

3

10574

PIPE FITTING

PIN - drive shaft coupling

1шт.

4

10571

FITTING

ADAPTER - distributor

1шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

10550

ASSEMBLY

ELBOW - outlet, cylinder water

1шт.

8

47861

KNOB

NUT - hex. (5/16 - 18 NC)

2шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

10553

GASKET

- water outlet, Serial Range: elbow-head

1шт.

11

34026

HEAD - cylinder

1шт.

12

10082

STUD - water outlet elbow to cylinder head (5/16 - 18 NC x 2-1/8)

2шт.

13

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- pipe (1/2 NPT ctsk. sq. hd.)

1шт.

14

G102128

BOLT

- distributor adapter to cylinder head (3/8 - 16 NC x 1-3/8)

1шт.

15

10406

CAP ASS'Y - oil filler

1шт.

16

221-1260

NIPPLE, LUBE

NIPPLE - close pipe, oil filler

1шт.

17

217-103

COCK, DRAIN

DRAIN COCK - cylinder water

1шт.

18

34017

CABLE

GASKET - cylinder head

1шт.

19

10411

SEALING RING

ROD ASS'Y - oil gauge

1шт.

20

10416

FELT - oil gauge rod cover

1шт.

21

10412

RING

SUPPORT - oil gauge rod

1шт.

22

36546

BLOCK - engine, stripped (Used on all gas models without a torque converter)

1шт.

6004

HORN

BLOCK ASS'Y - engine, complete (Used on all gas models without a torque converter)

1шт.

34838

VALVE

BLOCK - engine, stripped (Used on all gas models with a torque converter)

1шт.

NLS

NO LONGER SERVICED

BLOCK ASS'Y - engine, complete (Used on all gas models with a torque converter)

1шт.

23

10294

BUSHING

DOWEL - ring, gear, Serial Range: cover-block

1шт.

24

10315

GASKET - front end, Serial Range: plate-block

1шт.

25

10311

END PLATE - front, engine block

1шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- end plate to block (5/16 - 18 NC x 3/4)

1шт.

92-5

LOCK WASHER,5/16"

(Not shown) 5/16"

1шт.

27

10301

GASKET - gear cover to end plate

1шт.

28

47863

SPRING CUP

NUT - hex. (7/16 - 14 NC)

1шт.

29

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

30

10299

SCREW - dowel, gear cover to end plate

1шт.

31

10291

HOSE

COVER - timing gear (Used on all gas models without a torque converter)

1шт.

32

VT3373

SEAL - oil, crankshaft front

1шт.

31

32647

COVER - timing gear (Used on all gas models with a torque converter)

1шт.

32

10972

HOSE,Female, 1.5-2.5 mm2

SEAL - oil, crankshaft front

1шт.

33

VT4501

STUD - gear cover to block (3/8 - 16 NC x 1-11/16)

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

10295

BUSHING

SCREW - gear cover to block (3/8 - 16 NC x 1-1/8)

1шт.

38

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

39

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

HHCS - gear cover to block (7/16 - 14 NC x 1-1/2)

1шт.

40

10298

COPPER WASHER

- copper (3/8)

2шт.

41

10295

BUSHING

SCREW - gear cover to block (3/8 - 16 NC x 1-1/8)

1шт.

42

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8-16 NC x 2, Gear cover to block

3шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

44

10295

BUSHING

SCREW - gear cover to block (3/8 - 16 NC x 1-1/8)

1шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

46

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

47

10312

DOWEL - ring, front end plate

1шт.

48

10362

NUT

GASKET - oil pan

2шт.

49

10101

PIN

BLOCK - filler, front

1шт.

50

48525

X

WASHER - Shakeproof lock, internal tooth (5/16)

2шт.

51

10107

SCREW - socket head, front filler block to engine block (5/16 - 18 NC x 7/8)

2шт.

52

10015

SEAL - cork, front filler block to oil pan

1шт.

53

10361

BRACKET

PAN ASS'Y - oil (Includes ref. #54 and #55) (Used on all gas models without a torque converter)

1шт.

32678

PAN ASS'Y - oil (Includes ref. #54 and #55) (Used on all gas models with a torque converter)

1шт.

54

VT4521

X

PLUG - drain, oil pan

1шт.

55

A30059

GASKET

- oil pan drain plug

1шт.

56

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- oil pan to block (5/16 - 18 NC x 3/4)

14шт.

92-5

LOCK WASHER,5/16"

14шт.

57

10015

SEAL - cork, rear filler block

1шт.

58

10106

SCREW - rear filler block to block (5/16 - 18 NC x 2-5/8)

2шт.

59

48525

X

WASHER - Shakeproof lock, internal tooth (5/16)

2шт.

60

10105

PIN

BLOCK - filler, rear

1шт.

61

86631586

SPACER,9.8mm ID x 12.7mm OD x 16.76mm L

SEAL - rear filler block

2шт.

62

10109

GUARD - oil, rear bearing

1шт.

63

10421

VALVE - oil pressure relief

1шт.

64

11057

WASHER - relief valve adjusting

1шт.

65

A29285

SPRING

- oil relief valve

1шт.

66

10424

HARNESS

GASKET - oil relief valve plug

1шт.

67

10423

THUMB SCREW

PLUG - oil relief valve

1шт.

68

10073

ELBOW

STUD - valve chamber cover (1/4 - 20 NC x 1-3/8)

2шт.

69

10356

ELBOW

GASKET - valve chamber cover stud nut

2шт.

70

10355

TUBE ASSY.

NUT - valve chamber cover stud (1/4 - 20 NC) (Used on all gas models, Serial Range: up-1956)

2шт.

11058

NUT - valve chamber cover stud (1/4 - 20 NC) (Used on all gas models, 1956 and later)

2шт.

71

10357

BRACKET

GASKET - valve chamber cover

1шт.

72

10370

MOUNTING PARTS

COVER ASS'Y - valve chamber

1шт.

73

10371

MOUNTING PARTS

TUBE - vent, valve chamber cover (Used on all 400 gas models, Serial Range: up-1956)

1шт.

74

VT4501

STUD - intake and exhaust manifold to block (3/8 - 16 NC x 1-11/16)

6шт.

75

V20214

WASHER

- plain (3/8)

3шт.

76

10452

SEALING RING

NUT - hex., brass (3/8 - 16 NC)

7шт.

77

10079

CAPSCREW

STUD - intake and exhaust manifold to block (3/8 - 16 NC x 3-5/8)

1шт.

78

A30058

WASHER

- plain (3/8)

4шт.

79

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, intake and exhaust manifold (1/8 NPT ext. sq. hd.)

1шт.

80

A30030

GASKET

- intake and exhaust manifold

1шт.

81

5980

MANIFLLD - intake and exhaust (Used on all gas models withot a torque converter)

1шт.

33371

MANIFOLD - intake and exhaust (Used on all gas models with a torque converter)

1шт.

82

47861

KNOB

NUT - hex. (5/16 - 18 NC)

2шт.

83

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

84

31173

STUD - fuel pump hole cover (5/16 - 18 NC x 1-1/2)

2шт.

85

10121

COVER - fuel pump hole

1шт.

86

10123

GASKET - fuel pump hole cover

1шт.

87

10078

STUD - cylinder head to block (7/16 - 20 NF x 3-15/32)

15шт.

88

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- plain (7/16)

15шт.

89

10142

LARGE PLATE

NUT - hex. (7/16 - 20 NF)

15шт.

90

31120

HOUSING - flywheel (Used on all gas models with a torque converter)

1шт.

91

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- Timing hole cover (Used on all gas models with a torque converter) Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

92

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

93

10133

COVER - timing hole (Used on all gas models with a torque converter)

1шт.

10134

FELT - timing hole cover (Not shown)

1шт.

94

48487

X

WASHER - light sec. lock (7/16)

5шт.

95

10038

SCREW - flywheel housing to block (7/16 - 14 NC x 1-1/8) (Used on models with a torque converter)

3шт.

96

10037

SCREW - dowel, flywheel housing to block (7/16 - 14 NC x 1-7/16) (Used on all models with a torque converter)

2шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- ctsk. hd. pipe, at oil pan drain (3/8 NPT), part not shown

1шт.

30329

STUD - exhaust manifold outlet cover plate to manifold, rear (3/8 - 16 NC x 1-5/8), part not shown

2шт.

11580

STUD - exhaust manifold outlet elbow to manifold, front (3/8 - 16 NC x 2-3/4), part not shown

2шт.

10067

OIL SEAL

GASKET - exhaust manifold outlet elbow to manifold, front and rear, part not shown

2шт.

10095

PIN

PLATE - cover, rear exhaust manifold outlet, part not shown

1шт.

10096

NUT

WASHER - plain, exhaust manifold elbow to manifold (Front and rear), part not shown

4шт.

10452

SEALING RING

NUT - exhaust manifold outlet elbow to manifold, front and rear (3/8 - 16 NC), part not shown

4шт.

11068

SCREW - gear cover to block (3/8 - 16 NC x 1-1/8), part not shown

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Gear cover to block screw, part not shown 3/8"

1шт.

41899

ELBOW - street, block at oil gauge outlet, part not shown

1шт.

10565

ELEC CONNECTOR,4 Pin

FELT - rear bearing oil guard, part not shown

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Filler block to flywheel housing (Not shown) Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Filler block to flywheel housing screw, part not shown 1/4"

2шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, Cylinder water jacket drain, part not shown Hex Soc, 1/4"-18 NPTF

2шт.

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, oil pressure gauge hole (1/8 NPT), part not shown

1шт.

VT3395

X

PLUG - special pipe, engine block oil header, part not shown

2шт.

V22152

CAP

PLUG - Hubbard, camshaft bushing (Rear) (1-1/2" dia.), part not shown

1шт.

10617

ELBOW

PLUG - Hubbard, cylinder core hole (1-1/8" dia.), part not shown

1шт.

41-22

PLUG

- Hubbard, cylinder core hole (1-3/8" dia.), part not shown

2шт.
