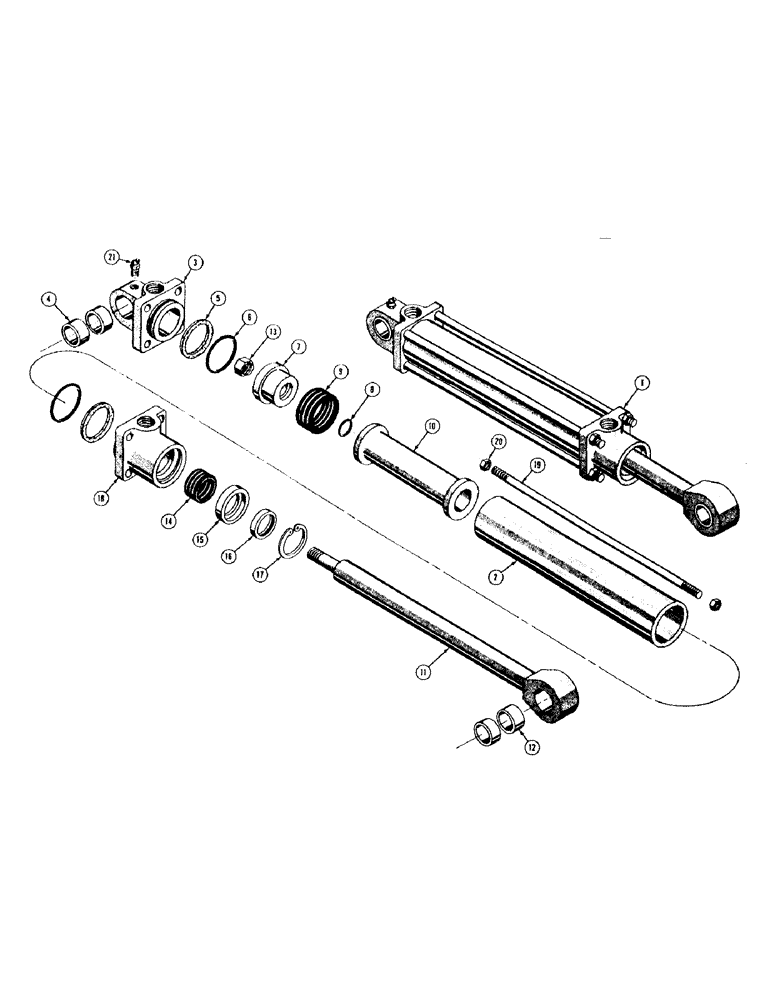

Запчасти Case 400 (244) - 37887 DOZER TILT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

37887

CYLINDER - dozer tilt, hydraulic

1шт.

2

37976

TUBE - cylinder

1шт.

3

D20038

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

5

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

6

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

"O" RING - seal, cylinder ends to tube

2шт.

7

30631

X

PISTON - cylinder, small (No "O" ring) Use D23738, D23739, and O3522CK

1шт.

D23738

BLOCK

PISTON - cylinder, small (With "O" ring) When replacing 30631 piston without "O" ring, also order 1 - O3522CK "O" ring and 1 - D23739 locknut

1шт.

8

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - seal, piston rod (Used with D23738 piston only)

1шт.

9

17598

PACKING

- piston

1шт.

10

38165

PISTON - cylinder, large

1шт.

11

D20029

ROD - piston

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

13

232-1446

NUT,3/8"-16, GC

NUT - lock (30631 piston only) (3/4 - 16 NF)

1шт.

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, (D23738 piston only) 3/4"-16, GB

1шт.

14

17597

PACKING

- piston rod

1шт.

15

36259

WASHER

- packing, piston rod

1шт.

16

17603

WIPER SEAL

- wiper, piston rod

1шт.

17

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

18

30628

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

19

38000

O-RING

ROD - tie

4шт.

20

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock, tie rod (1/2 - 20 NF)

8шт.

21

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2 degree grease, 1/8 NPT (Lincoln #5300)

1шт.
