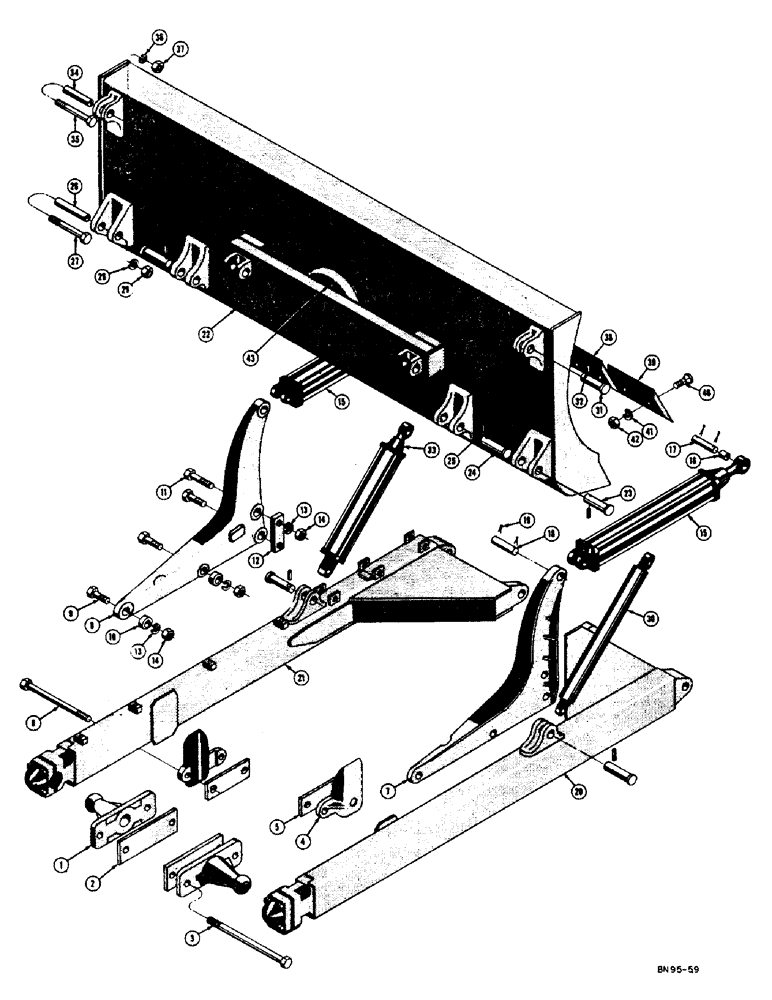

Запчасти Case 400 (230) - HYDRAULIC CROWN TILT BULLDOZER (07) - HYDRAULIC SYSTEM

1

1327359C1

BAR

TRUNNION - dozer push beam

2шт.

2

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- trunnion

2шт.

3

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - 3/4 - 16 NF x 12 (R.H.)

2шт.

D23206

HHCS - 3/4 - 16 NC x 12-1/2 (L. H.) Not shown

2шт.

4

37992

PLATE - rub, push beam

2шт.

5

34047

LEVER

SPACER - rub plate

2шт.

6

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - 3/4 - 16 NF x 12

4шт.

7

16692

BRACKET - cylinder, R.H.

1шт.

8

16693

CLAMP

BRACKET - cylinder, L.H.

1шт.

9

414-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

HHCS - 5/8 - 18 NF x 2-1/4

6шт.

10

32799

SPACER

4шт.

11

414-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8 - 18 NF x 2-3/4

2шт.

12

17803

PLATE - reinforcing

2шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

425-1110

NUT,5/8"-18, G5

8шт.

15

17751

CYLINDER - hydraulic, dozer lift (See figure 242 for breakdown)

2шт.

16

17631

BUSHING

2шт.

17

18743

PIN - mounting, lift cylinder (Lower)

2шт.

18

16726

PIN - mounting, lift cylinder (Upper)

2шт.

19

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

20

126632A1

CONDUIT

PUSH BEAM - moldboard, R.H.

1шт.

21

1327410C1

FORK

PUSH BEAM - moldboard, L.H.

1шт.

22

37927

MOLDBOARD - hydraulic crown tilt bulldozer

1шт.

23

39222

PIN - push beam, R.H.

1шт.

24

37990

PIN - push beam, R.H. and L.H.

4шт.

25

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

5шт.

26

D20149

PIN - push beam, L.H.

1шт.

27

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

HHCS - 1/2 - 13 NC x 6

1шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

30

37896

SUPPORT

STRUT - R.H. push, Serial Range: beam-moldboard

1шт.

31

39221

PIN -, Serial Range: strut-moldboard

1шт.

32

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.

33

37887

CYLINDER - hydraulic, dozer tilt (See figure 244 for breakdown)

1шт.

34

D20148

PIN - tilt, Serial Range: cylinder-moldboard

1шт.

35

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

HHCS - 1/2 - 13 NC x 5-1/2

1шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

38

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

39

NLS

NO LONGER SERVICED

BLADE - cutting, end

2шт.

40

419-3828

CARRIAGE BOLT,1/2” - 13 x 1-3/4” L, Gr 5

BOLT - plow (1/2 - 13 NC x 1-3/4)

19шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

19шт.

42

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

19шт.

43

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , NPT (Lincoln #5000) 1/8"-27 x .66 lg

1шт.
