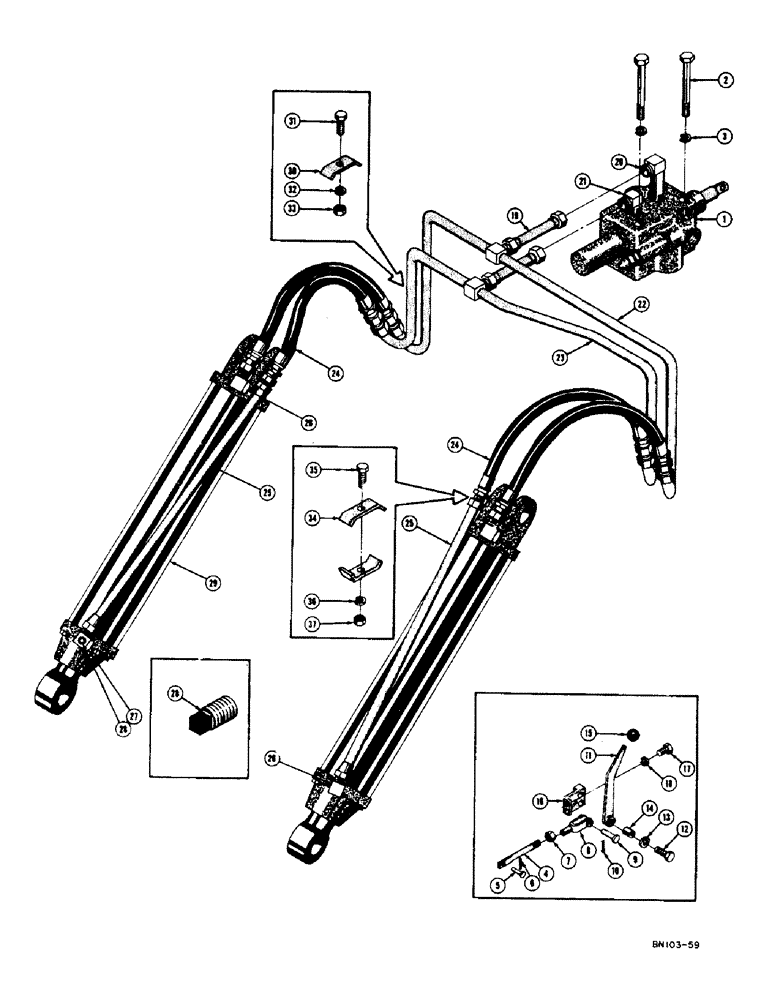

Запчасти Case 400 (228) - MECHANICAL DOZER HYDRAULICS, (USED FROM SERIAL #3003033) (07) - HYDRAULIC SYSTEM

1

16130

TUBE

VALVE - control (See figure 174 for breakdown)

1шт.

2

114-441

BOLT,Hex, 1/2" - 20 x 4", Gr 5

HHCS - 1/2 - 20 NF x 4

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

32361

SNAP RING

LINK - valve control

1шт.

5

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Yoke, Valve control link 1/4" x .770"

1шт.

6

132-329

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), , yoke pin 1/16" x 3/4"

1шт.

7

129-123

NUT,3/8"-24, G5

1шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

END - yoke

2шт.

9

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

38865

LEVER - control, valve

1шт.

12

414-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

1шт.

13

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- plain (1/2)

1шт.

14

NLS

NO LONGER SERVICED

BUSHING - control lever

1шт.

15

376959R2

KNOB

BALL - valve control lever

1шт.

16

32322

BRACKET - mounting, control lever

1шт.

17

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

38844

TUBE - rear valve port to rear manifold tube, also front valve port to front manifold tube, lift cylinder hydraulics .625" OD, 3.75" Length

2шт.

20

218-498

ELBOW - 90 degree male, extra long (1/2 NPT x 5/8 JIC), lift cylinder hydraulics 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

21

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC), lift cylinder hydraulics

1шт.

22

39064

TUBE - manifold, rear, lift cylinder hydraulics

1шт.

23

39061

TUBE - manifold, front, lift cylinder hydraulics

1шт.

24

L50840

HOSE

- manifold tube to lift cylinder, hydraulics

4шт.

25

38849

BOLT,Hex, M6 x 80mm, Cl 8.8

TUBE - front manifold tube to lift cylinder front port, hydraulics

2шт.

26

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC), lift cylinder hydraulics

3шт.

27

33888

ELBOW - special (1/2 NPT x 5/8 JIC x 1/8 NPT), lift cylinder hydraulics

1шт.

28

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, special elbow (1/8 NPT sq.hd.), lift cylinder hydraulics

1шт.

29

17751

CYLINDER - hydraulic, dozer lift (See figure 242 for breakdown)

2шт.

30

38331

PLATE

- tube clamp, lift cylinder hydraulics

2шт.

31

414-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2, lift cylinder hydraulics

2шт.

32

92-5

LOCK WASHER,5/16"

lift cylinder hydraulics 5/16"

2шт.

33

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF), Lift cylinder hydraulics

2шт.

34

D33316

CLAMP

PLATE - clamp, lift cylinder hydraulics

4шт.

35

414-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

HHCS - 5/16 - 24 NF x 1-3/4, lift cylinder hydraulics

2шт.

36

92-5

LOCK WASHER,5/16"

lift cylinder hydraulics 5/16"

2шт.

37

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF), Lift cylinder hydraulics

2шт.
