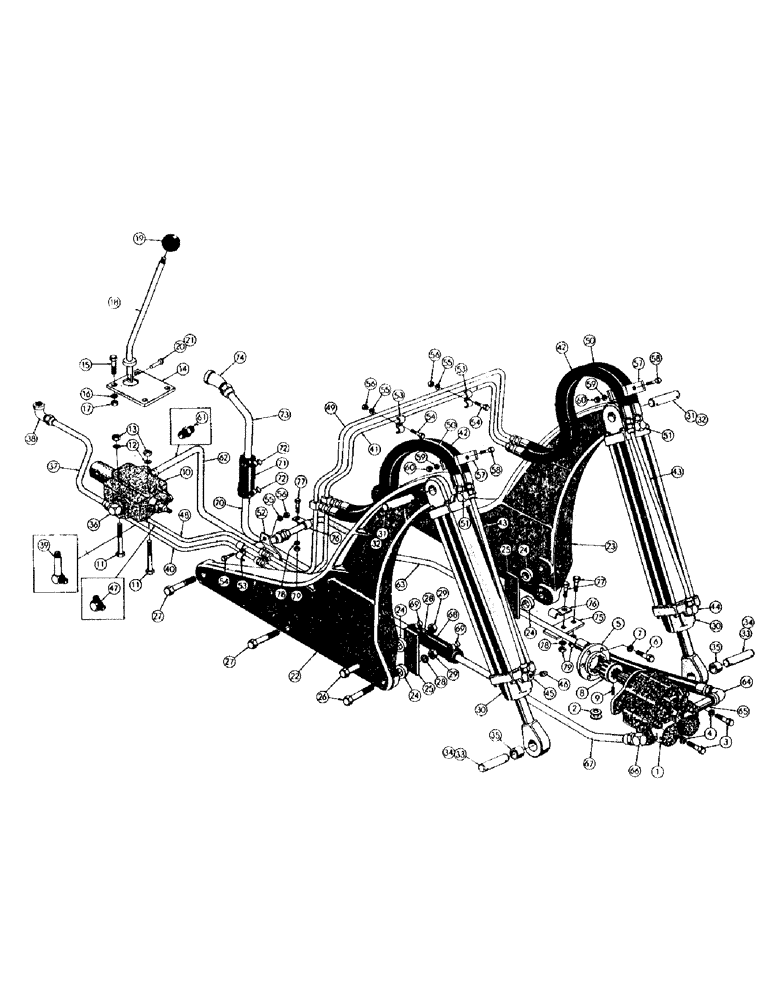

Запчасти Case 400 (224) - MECHANICAL DOZER HYDRAULICS - DIESEL, (USED UP TO SERIAL (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
31615
CAP
PUMP - hydraulic, 15 G.P.M. (See figure184 for breakdown)
1шт.
2
NLS
NO LONGER SERVICED
SHIM - engine mounting
1шт.
3
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
Pump Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
4
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
5
17146
PIN
COUPLING - pump, female
1шт.
6
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- pump coupling (5/16 - 18 NC x 3/4)
6шт.
7
92-5
LOCK WASHER,5/16"
6шт.
8
R13925
COUPLING
- pump, male
1шт.
9
83-58
SET SCREW,Hex Soc, 5/16"-18 x 1/2"
SCREW - socket hd. set, male pump coupling (5/16 - 18 NC x 1/2)
1шт.
10
16130
TUBE
VALVE - control (See figure 174 for breakdown)
1шт.
11
114-420
BOLT,Hex, 1/2" - 20 x 4-1/2", Gr 5
Control valve Hex, 1/2"-20 x 4 1/2", G5
2шт.
12
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
13
129-125
NUT,1/2"-20, G5
2шт.
14
16694
PLATE - guide, control lever
1шт.
15
BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd
HHCS - guide plate (3/8 - 24 NF x 1-1/4)
4шт.
16
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
17
129-123
NUT,3/8"-24, G5
4шт.
18
16675
GUSSET
LEVER - control, valve
1шт.
19
376959R2
KNOB
BALL - control lever
1шт.
20
VT2105
X
PIN - yoke, control lever
1шт.
21
132-328
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
1шт.
22
16692
BRACKET - cylinder, R.H.
1шт.
23
16693
CLAMP
BRACKET - cylinder, L.H.
1шт.
24
32799
SPACER - cylinder bracket
4шт.
26
414-1032
BOLT,Hex, 5/8" - 18 x 2", Gr 5
HHCS - cylinder bracket (5/8 - 18 NF x 2)
4шт.
27
414-1040
BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5
HHCS - cylinder bracket (5/8 - 18 NF x 2-1/2)
4шт.
28
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
29
425-1110
NUT,5/8"-18, G5
8шт.
30
17751
CYLINDER - hydraulic, dozer lift (See figure 242 for breakdown)
2шт.
31
18743
PIN - lift cylinder to cylinder bracket
2шт.
32
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
4шт.
33
16726
PIN - lift, Serial Range: cylinder-dozer
2шт.
34
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
4шт.
35
17631
BUSHING - lift cylinder to dozer pin
2шт.
36
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
- 90 degree male, control valve outlet (3/4 NPT x 3/4 JIC)
1шт.
37
1333976C1
TUBE,57.24 mm OD, 1043 mm Length
- control valve to reservoir
1шт.
38
9402906
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, Fem NPTF
- 90 degree female, reservoir (3/4 NPT x 3/4 JIC)
1шт.
39
218-498
ELBOW - 90 degree male, extra long (Rear control valve port) (1/2 NPT x 5/8 JIC) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG
1шт.
40
18945
TUBE - rear control valve port to lower manifold tube (400 diesel only)
1шт.
18952
TUBE - rear control valve port to lower manifold tube (500 diesel only)
1шт.
41
18946
TUBE - manifold, lower (400 diesel only)
1шт.
19236
BUSHING
TUBE - manifold, lower (500 diesel only)
1шт.
42
35646
HOSE
- lower manifold tube to front cylinder port
2шт.
43
35647
TUBE - lower manifold tube to front cylinder port
2шт.
44
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- 90 degree male, L.H. cylinder front port (1/2 NPT x 5/8 JIC)
1шт.
45
33888
ELBOW - special 90 degree male, R.H. cylinder front port (1/2 NPT x 5/8 JIC x 1/8 NPT)
1шт.
46
217-430
PLUG,Hex Soc, 1/8" - 27 NPTF
- pipe, special elbow (1/8 NPT sq. hd.)
1шт.
47
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- 90 degree male, front control valve port (1/2 NPT x 5/8 JIC)
1шт.
48
18948
KNOB
TUBE - front control valve port to upper manifold tube (400 diesel only)
1шт.
18953
TUBE - front control valve port to upper manifold tube (500 diesel only)
1шт.
49
18949
TUBE - manifold, upper (400 diesel only)
1шт.
19237
TUBE - manifold, upper (500 diesel only)
1шт.
50
18950
HOSE - upper manifold tube to rear cylinder port
2шт.
51
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- 90 degree male, rear cylinder port (1/2 NPT x 5/8 JIC)
2шт.
52
18575
BRACKET - tube clamp
1шт.
53
17179
CLAMP - tube, manifold tubes
3шт.
54
414-516
BOLT,Hex, 5/16" - 24 x 1", Gr 5
HHCS - tube clamp (5/16 - 24 NF x 1)
3шт.
55
92-5
LOCK WASHER,5/16"
3шт.
57
32978
PLATE ASSY.
PLATE - clamp
4шт.
58
414-520
BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5
HHCS - clamp plate (5/16 - 24 NF x 1-1/4)
2шт.
59
92-5
LOCK WASHER,5/16"
2шт.
61
218-458
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF
CONNECTOR - male, control valve inlet (1/2 NPT x 3/4 JIC)
1шт.
62
18939
TUBE - control valve inlet to pump, rear section
1шт.
63
NSS
NOT SOLD SEPARAT
HOSE AND TUBE ASS'Y - control valve inlet to pump, front section (Use 36570 and 36572)
1шт.
36572
TUBE - control valve inlet to pump, center section
1шт.
36570
HOSE ASSY.
HOSE - control valve inlet to pump, front section
1шт.
64
9402906
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, Fem NPTF
- 90 degree female, hose to pipe nipple (3/4 NPT x 3/4 JIC)
1шт.
65
221-218
PIPE,Nipple, 3/4" NPT x 3 1/2"
NIPPLE - pipe, pump outlet (3/4 NPT x 3-1/2")
1шт.
66
31-1473
ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF
- 90 degree male, pump inlet (3/4 NPT x 1 JIC)
1шт.
67
19106
TUBE - reservoir to pump, front section
1шт.
68
32798
HOSE
- low pressure
1шт.
69
49766
AUGER
CLAMP - hose
2шт.
70
34381
TUBE - reservoir to pump, center section
1шт.
71
32798
HOSE
- low pressure
1шт.
72
214-1420
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose
2шт.
73
18991
WHEEL
TUBE - reservoir to pump, rear section
1шт.
74
218-518
ELBOW - 90 degree female, reservoir (1" NPT x 1" JIC)
1шт.
75
34259
SHIM,.007" Thk
PLATE - tube support
1шт.
76
49789
CLAMP
- tube
2шт.
77
414-516
BOLT,Hex, 5/16" - 24 x 1", Gr 5
HHCS - tube clamp and support plate (5/16 - 24 NF x 1)
3шт.
78
92-5
LOCK WASHER,5/16"
3шт.
Выбрано товаров: 85
