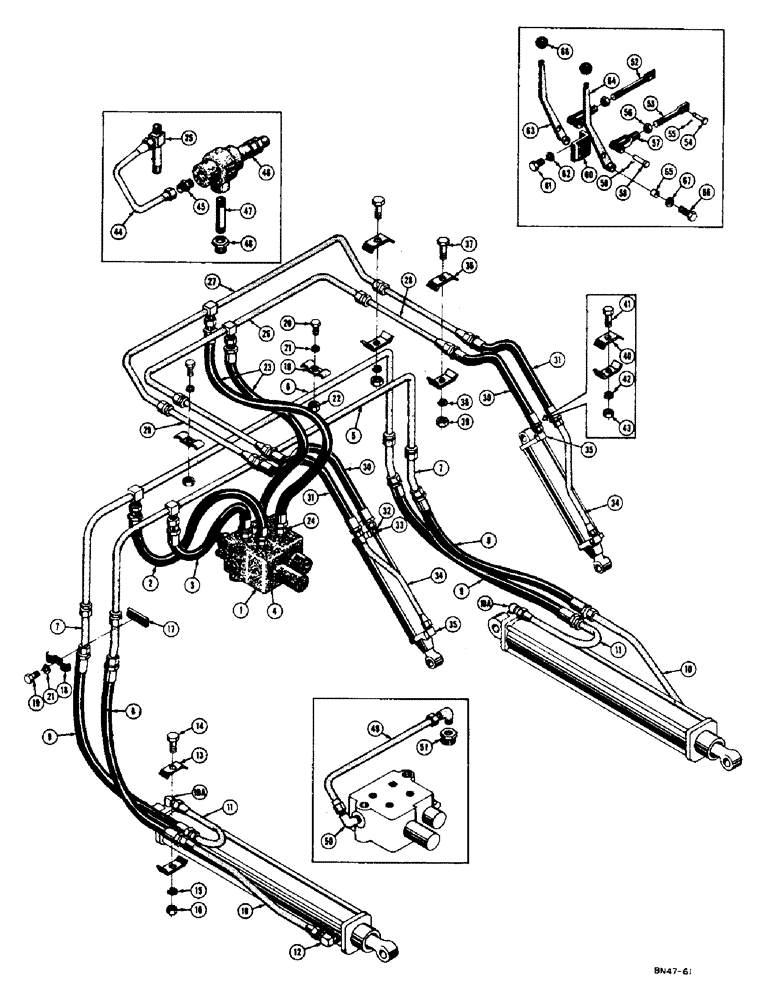

Запчасти Case 400 (204) - LOADER HYDRAULICS, (USED FROM SERIAL #3003033) (07) - HYDRAULIC SYSTEM

1

16400

VALVE - control (See figure178 for breakdown)

1шт.

2

19207

HOSE ASSY.

HOSE - right front valve port to rear lift cylinder manifold tube

1шт.

3

19259

HOSE - right rear valve port to front lift cylinder manifold tube

1шт.

4

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (1/2 NPT x 5/8 JIC)

2шт.

5

19260

TUBE - lift cylinder manifold, front

1шт.

6

19263

TUBE - lift cylinder manifold, rear

1шт.

7

36576

TUBE - lift cylinder manifold tube to lift cylinder port, upper section

4шт.

8

E45221

HOSE

- front lift cylinder manifold tube to lift cylinder front port, center section

2шт.

9

36695

HOSE - rear lift cylinder manifold tube to lift cylinder rear port, center section

2шт.

10

36588

TUBE - front lift cylinder, Serial Range: port-hose

2шт.

10a

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC)

2шт.

11

36578

TUBE - rear lift cylinder, Serial Range: port-hose

2шт.

12

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC)

2шт.

13

D33316

CLAMP

PLATE - clamp

4шт.

14

414-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

HHCS - clamp plate (5/16 - 24 NF x 1-3/4)

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

17

33747

PLATE - tube clamp spacer

2шт.

18

17179

CLAMP - tube

4шт.

19

414-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2

1шт.

20

414-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5

HHCS - 5/16 - 24 NF x 1

2шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

23

35543

HOSE

- left front and rear valve ports to dump cylinder manifold tubes

2шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (1/2 NPT x 5/8 JIC)

1шт.

25

50882

TEE - male (1/2 NPT x 5/8 JIC x 5/8 JIC)

1шт.

26

19267

TUBE - dump cylinder manifold, lower

1шт.

27

19269

TUBE - dump cylinder manifold, upper

1шт.

28

36582

TUBE - lower dump cylinder manifold tube to dump cylinder rear port

2шт.

29

36592

TUBE - upper dump cylinder manifold tube to dump cylinder front port, rear section

2шт.

30

36547

HOSE

- dump cylinder rear, Serial Range: port-tube

2шт.

31

NLS

NO LONGER SERVICED

HOSE - tube to dump cylinder rear port tube

2шт.

32

33888

TEE - special, R.H. dump cylinder rear port

1шт.

33

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- pipe, 1/8 NPT sq. hd.

1шт.

34

36594

FIXING PLATE

TUBE - dump cylinder front, Serial Range: port-hose

2шт.

35

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC)

3шт.

36

32978

PLATE ASSY.

PLATE - clamp

8шт.

37

414-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - clamp plate (5/16 - 24 NF x 1-1/2)

4шт.

38

92-5

LOCK WASHER,5/16"

4шт.

39

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

4шт.

40

D33316

CLAMP

PLATE - clamp

4шт.

41

414-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

HHCS - 5/16 - 24 NF x 1-3/4

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.

43

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

44

38791

TUBE - control valve to relief valve

1шт.

45

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (1/2 NPT x 5/8 JIC)

1шт.

46

D24452

VALVE

- special relief (See figure 288 for breakdown)

1шт.

47

D21315

NIPPLE - pipe (1/2 NPT x 3-1/2")

1шт.

48

221-60

TUBE

BUSHING - hex. pipe (3/4 NPT x 1/2 NPT)

1шт.

49

38398

TUBE - control valve, Serial Range: outlet-reservoir

1шт.

50

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4 NPT x 3/4 JIC)

2шт.

51

221-608

REDUCER,Hex, 1 1/4" x 3/4" NPT

BUSHING - hex. pipe (1-1/4 NPT x 3/4 NPT)

1шт.

52

35620

SHIM

LINK - valve control, long

1шт.

53

32361

SNAP RING

LINK - valve control, short

1шт.

54

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Yoke 1/4" x .770"

2шт.

55

132-329

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), , yoke pin 1/16" x 3/4"

2шт.

56

129-123

NUT,3/8"-24, G5

2шт.

57

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end

2шт.

58

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

59

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

60

32322

BRACKET - valve lever

1шт.

61

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

2шт.

62

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

63

38864

LEVER - valve, L.H.

1шт.

64

38865

LEVER - valve, R.H.

1шт.

65

NLS

NO LONGER SERVICED

BUSHING - valve lever

2шт.

66

414-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - valve lever (1/2 - 20 NF x 1-3/4)

2шт.

67

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- plain (1/2)

2шт.

68

376959R2

KNOB

BALL - valve lever

2шт.

19235

TUBE ASS'Y - breather filter (Not shown)

1шт.

31543

BREATHER

FILTER - breather (Not shown)

1шт.
