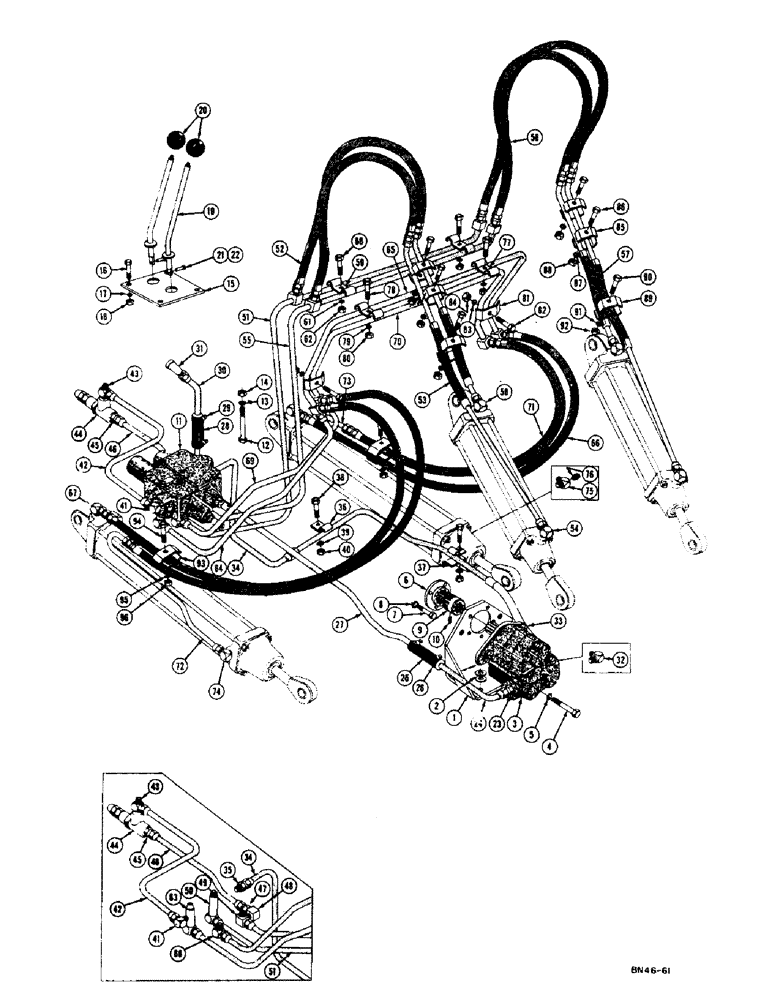

Запчасти Case 400 (200) - LOADER HYDRAULICS, (USED UP TO SERIAL #3003033) (07) - HYDRAULIC SYSTEM

1

30640

BRACKET - mounting, pump (Gas models only)

1шт.

2

33496

BRAKE LINING

SHIM - mounting, engine

1шт.

3

31615

CAP

PUMP - hydraulic, 15 G.P.M. (See figure 184 for breakdown)

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hydraulic pump Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

17146

PIN

COUPLING - pump, female (Diesel models only)

1шт.

R13926

COUPLING

- pump, female (Gas models only)

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- female coupling (5/16 - 18 NC x 3/4)

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

R13925

COUPLING

- pump, male

1шт.

10

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - Allen hd. set, male coupling (5/16 - 18 NC x 1/2)

1шт.

11

16400

VALVE - control (See figure 178 for breakdown)

1шт.

12

114-420

BOLT,Hex, 1/2" - 20 x 4-1/2", Gr 5

Control valve Hex, 1/2"-20 x 4 1/2", G5

3шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

14

129-125

NUT,1/2"-20, G5

3шт.

15

16678

PLATE - guide, valve lever

1шт.

16

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Guide plate

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

129-123

NUT,3/8"-24, G5

4шт.

19

16675

GUSSET

LEVER - valve control

2шт.

20

376959R2

KNOB

BALL - valve lever

2шт.

21

VT2105

X

PIN - yoke

2шт.

22

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

23

31-1473

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

- 90 degree male (3/4 NPT x 1 JIC) (Diesel models only)

1шт.

31-1393

HYD CONNECTOR,1 5/16"-12, 37 Degree x 3/4"-14, NPTF

CONNECTOR - male (3/4 NPT x 1 JIC) (Gas models only)

1шт.

24

19106

TUBE - return line, reservoir to pump (Front section) (Diesel models only)

1шт.

18969

BACK-UP RING

TUBE - return line, reservoir to pump (Front section) (Gas models only)

1шт.

25

32798

HOSE

- low pressure

1шт.

26

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

27

19234

BUSHING

TUBE - reservoir to pump return line, center section

1шт.

28

32798

HOSE

- low pressure

1шт.

29

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

30

18991

WHEEL

TUBE - reservoir to pump return line, rear section

1шт.

31

218-518

ELBOW - 90 degree female (1 NPT x 1 JIC)

1шт.

32

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degree male (3/4 NPT x 3/4 JIC) (Gas models only)

1шт.

221-218

PIPE,Nipple, 3/4" NPT x 3 1/2"

NIPPLE - pipe (3/4 NPT x 3-1/2") (Diesel models only) (Not shown)

1шт.

9402906

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, Fem NPTF

- 90 degree female (3/4 NPT x 3/4 JIC) (Diesel models only) (Not shown)

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE AND TUBE ASS'Y - use 36570 and 36572

1шт.

36570

HOSE ASSY.

HOSE - pressure line, pump to valve, front section

1шт.

36572

TUBE - pressure line, pump to valve, center section

1шт.

34

18939

TUBE - pressure line, pump to valve, rear section

1шт.

35

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (1/2 NPT x 3/4 JIC)

1шт.

36

49789

CLAMP

- 36572 tube

2шт.

37

34259

SHIM,.007" Thk

PLATE - tube support

1шт.

38

414-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5

HHCS - tube clamp (5/16 - 24 NF x 1)

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

41

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4 NPT x 3/4 JIC)

1шт.

42

19218

TUBE - control valve to relief valve outlet

1шт.

43

34146

TEE - female run, 90 degrees

1шт.

44

NLS

NO LONGER SERVICED

VALVE - special relief (See figure 288 for breakdown)

1шт.

45

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (1/2 NPT x 5/8 JIC)

1шт.

46

34148

TUBE - control valve to relief valve inlet

1шт.

47

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (1/2 NPT x 5/8 JIC)

1шт.

48

9402905

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

- 90 degree female (1/2 NPT x 5/8 JIC)

1шт.

49

34264

ELBOW - 90 degree lateral

1шт.

50

218-498

ELBOW - 90 degree male, extra long (1/2 NPT x 5/8 JIC) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

51

19201

TUBE - dump cylinder manifold, rear

1шт.

52

19207

HOSE ASSY.

HOSE - rear dump cylinder manifold tube to front cylinder port, rear section

2шт.

53

NSS

NOT SOLD SEPARAT

HOSE AND TUBE ASS'Y - rear dump cylinder manifold tube to front cylinder port, front section (Use 36747, 37301, and 36519)

2шт.

1327434C1

SHAFT

TUBE - rear dump cylinder manifold tube to front cylinder port, rear center section

2шт.

NLS

NO LONGER SERVICED

HOSE - rear dump cylinder manifold tube to front cylinder port, front center section

2шт.

36519

SCREW

TUBE - rear dump cylinder manifold tube to front cylinder port, front section

2шт.

54

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC)

2шт.

55

19202

TUBE - dump cylinder manifold, front

1шт.

56

19207

HOSE ASSY.

HOSE - front dump cylinder manifold tube to rear cylinder port, rear section

2шт.

57

NSS

NOT SOLD SEPARAT

HOSE AND TUBE ASS'Y - front dump cylinder manifold tube to rear cylinder port, front section (Use 37318 and 36747)

2шт.

1327434C1

SHAFT

TUBE - front dump cylinder manifold tube to rear cylinder port, center section

2шт.

37318

HOSE ASSY.

HOSE - front dump cylinder manifold tube to rear cylinder port, front section

2шт.

58

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC)

2шт.

59

17179

CLAMP - tube

2шт.

60

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Tube clamp Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

61

92-5

LOCK WASHER,5/16"

2шт.

62

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

63

218-498

ELBOW - 90 degree male, extra long (1/2 NPT x 5/8 JIC) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

64

19228

TUBE - right rear valve port to rear lift cylinder manifold tube

1шт.

65

19225

TUBE - lift cylinder manifold, rear

1шт.

66

19178

HOSE

- rear lift cylinder manifold tube to rear cylinder port

2шт.

67

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, rear lift cylinder ports (1/2 NPT x 5/8 JIC)

2шт.

68

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC)

1шт.

69

19227

TUBE - right front valve port to front lift cylinder manifold tube

1шт.

70

19226

TUBE - lift cylinder manifold, front

1шт.

71

19178

HOSE

- front lift cylinder manifold tube to front cylinder port, rear section

2шт.

72

19219

TUBE - front lift cylinder manifold tube to R.H. cylinder, front port (Front section)

1шт.

73

19220

TUBE - front lift cylinder manifold tube to L.H. cylinder, front port (Front section)

1шт.

74

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, R.H. lift cylinder front port (1/2 NPT x 5/8 JIC)

1шт.

75

33888

ELBOW - 90 degree male, special (L.H. lift cylinder front port) (1/2 NPT x 5/8 JIC x 1/8 NPT)

1шт.

76

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- pipe, 1/8 NPT sq. hd.

1шт.

77

17179

CLAMP - tube

2шт.

78

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Tube clamp Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

79

92-5

LOCK WASHER,5/16"

2шт.

80

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

81

32978

PLATE ASSY.

PLATE - clamp

2шт.

82

414-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - clamp plate (5/16 - 24 NF x 1-1/2)

2шт.

83

92-5

LOCK WASHER,5/16"

2шт.

84

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

85

32978

PLATE ASSY.

PLATE - clamp

8шт.

86

414-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

HHCS - clamp plate (5/16 - 24 NF x 1-1/4)

4шт.

87

92-5

LOCK WASHER,5/16"

4шт.

88

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

4шт.

89

D33316

CLAMP

PLATE - clamp

4шт.

90

414-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - clamp plate (5/16 - 24 NF x 1-1/2)

2шт.

91

92-5

LOCK WASHER,5/16"

2шт.

92

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

93

D33316

CLAMP

PLATE - clamp

4шт.

94

414-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

HHCS - clamp plate (5/16 - 24 NF x 1-3/4)

2шт.

95

92-5

LOCK WASHER,5/16"

2шт.

96

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

19235

TUBE ASS'Y - breather filter (Not shown)

1шт.

31543

BREATHER

FILTER - breather (Not shown)

1шт.
