Запчасти Case 400 (174) - 16130 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

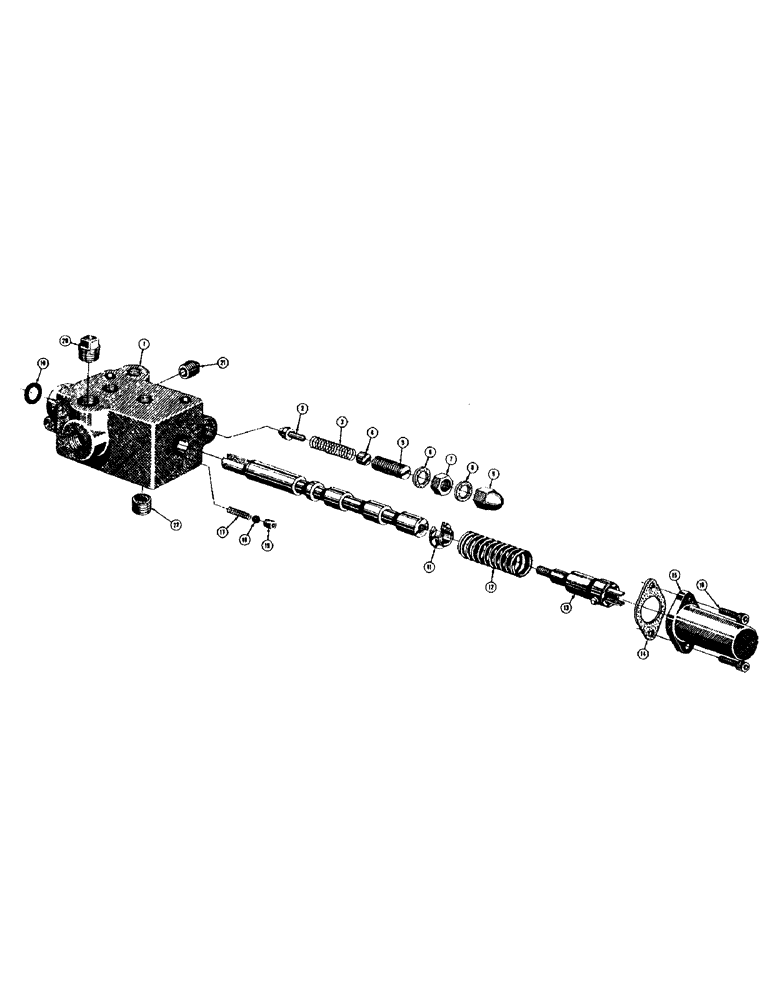

Схема запчастей Case 400 - (174) - 16130 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

16130

TUBE

VALVE - control

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set

1шт.

2

16227

HOSE

POPPET - relief valve

1шт.

3

NLS

NO LONGER SERVICED

SPRING - relief valve

1шт.

4

16217

BUSHING

PLUG - relief valve

1шт.

5

NLS

NO LONGER SERVICED

SCREW - adjusting, relief valve

1шт.

6

16219

GASKET

- relief valve

1шт.

7

425-119

NUT,Hex, 9/16"-18, G5

(NF) Hex, 9/16"-18, G5

1шт.

8

16219

GASKET

- relief valve

1шт.

9

48355

NUT - cap (9/16 - 18 NF)

1шт.

10

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

Seal, valve spool -211, 70 Duro, .796" ID x .139" Thk

1шт.

11

16205

RETAINER - spring

1шт.

12

16204

VALVE

SPRING - spool return

1шт.

13

16206

GUIDE - spring

1шт.

16207

TUBE

PIN - stop (1/4" x 21/32") (Not shown)

1шт.

14

16211

HOSE

GASKET - valve cap

1шт.

15

16210

HOSE

CAP - valve

1шт.

16

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16 - 18 NC x 3/4

2шт.

17

16212

HOSE

SPRING - check valve

1шт.

18

VT4852

X

BALL - check valve (5/32" dia.)

1шт.

19

16214

HOSE

SEAT - check valve

1шт.

20

217-442

PLUG,3/4" - 14

- pipe (3/4 NPT sq. hd.)

1шт.

21

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe (1/2 NPT ext. sq. hd.)

1шт.

22

221-844

PLUG,Hex Soc, 1/2"-14

- pipe (1/2 NPT socket hd.)

1шт.

Выбрано товаров: 24
