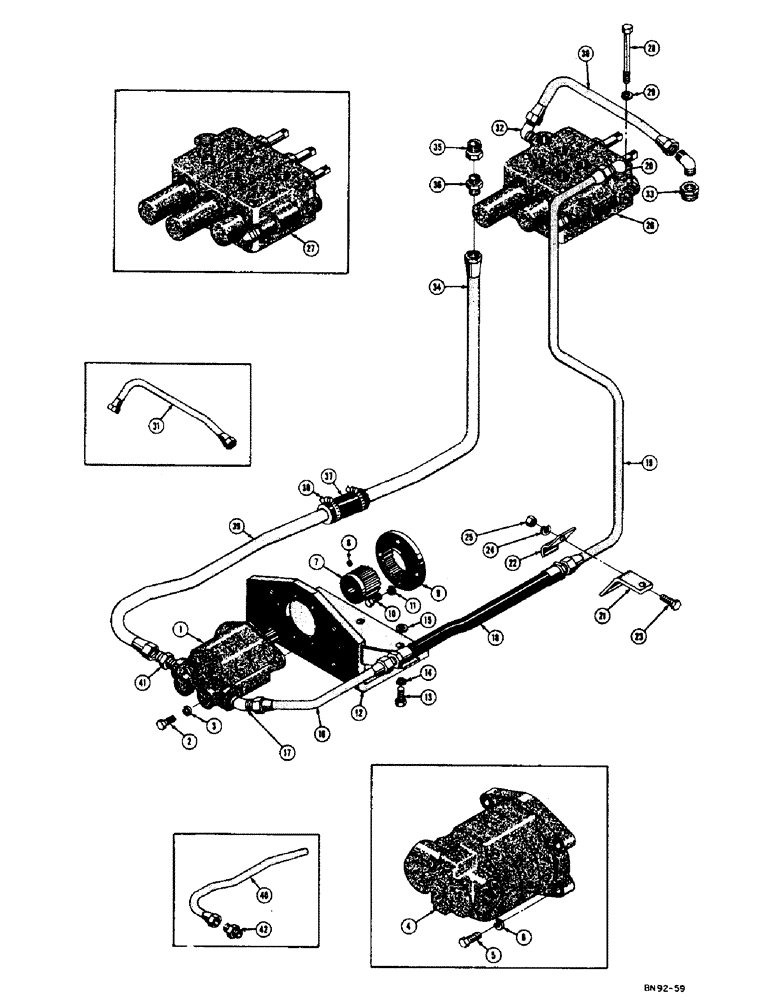

Запчасти Case 400 (172) - DOZER AND LOADER BASIC TRACTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

31615

CAP

PUMP - hydraulic, 15 G.P.M. (Used with dozers) See figure 184 for breakdown

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Pump Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

D21319

PUMP - hydraulic, 19 G.P.M. (Used with loaders) see D26066 (See figure188 for breakdown)

1шт.

D26066

PUMP - hydraulic, heavy duty 19 G.P.M. (See figure 190 for breakdown)

1шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

R13925

COUPLING

- pump, male

1шт.

8

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - socket hd. set (5/16 - 18 NC x 1/2)

1шт.

9

R13926

COUPLING

- pump, female

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- female pump coupling (5/16 - 18 NC x 3/4)

4шт.

11

92-5

LOCK WASHER,5/16"

4шт.

12

30640

BRACKET - mounting, pump

1шт.

13

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Pump bracket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

NLS

NO LONGER SERVICED

SHIM - .010" thick

1шт.

16

38536

TUBE,3" OD, 10.687, 3.187" Length

- pressure line, pump to valve (Front section)

1шт.

17

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degree male (3/4 NPT x 3/4 JIC)

1шт.

18

38546

HOSE - pressure line, pump to valve (Center section)

1шт.

19

80038532

LINK

TUBE - pressure line, pump to valve (Rear section) (Used on loaders and hydraulic dozers)

1шт.

38534

LINE

TUBE - pressure line, pump to valve (Rear section) (Used on mechanical dozers) (Not shown)

1шт.

20

218-495

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 3/4 JIC)

1шт.

21

38530

LINE

BASE - tube clamp

1шт.

22

49789

CLAMP

- tube

1шт.

23

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

425-115

NUT,5/16"-24, G5

- hex. (5/16 - 24 NF)

2шт.

26

16400

VALVE - control (Used on hydraulic dozers and loaders without sacrifier) (See figure 178 for breakdown)

1шт.

27

38876

VALVE - control (Used on hydraulic dozer-sacrifier and loader-sacrifier model) (See figure178 for breakdown)

1шт.

16130

TUBE

VALVE - control (Used on mechanical dozers) (See figure 174 for breakdown) (Not shown)

1шт.

28

14-684

SCREW,Hex, 1/2" - 20 x 4"

HHCS - control valve (1/2 - 20 NF x 4)

3шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

30

38398

TUBE - valve outlet to reservoir (Used with 1 or 2 spool valve)

1шт.

31

38396

TUBE - valve outlet to reservoir (Used with 3 spool valve)

1шт.

32

31-1473

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

- 90 degree male (3/4 NPT x 3/4 JIC)

2шт.

33

221-608

REDUCER,Hex, 1 1/4" x 3/4" NPT

BUSHING - hex. pipe (1-1/4 NPT x 3/4 NPT)

1шт.

34

38851

SUPPORT

TUBE - low pressure line, reservoir to pump (Rear section)

1шт.

35

221-70

BUSHING - hex. pipe (1-1/4 NPT x 1 NPT)

1шт.

36

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male (1 NPT x 1 JIC)

1шт.

37

36467

HOSE - low pressure line, reservoir to pump (Center section)

1шт.

38

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

39

38538

LINE

TUBE - low pressure line, reservoir to pump (Front section) (Used with loaders)

1шт.

40

38882

TUBE - low pressure line, reservoir to pump (Front section) (Used with dozers)

1шт.

41

31-1393

HYD CONNECTOR,1 5/16"-12, 37 Degree x 3/4"-14, NPTF

CONNECTOR - male (3/4 NPT x 1 JIC) (Used with hydraulic dozers)

1шт.

42

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male (1 NPT x 1 JIC) (Used with loaders)

1шт.
