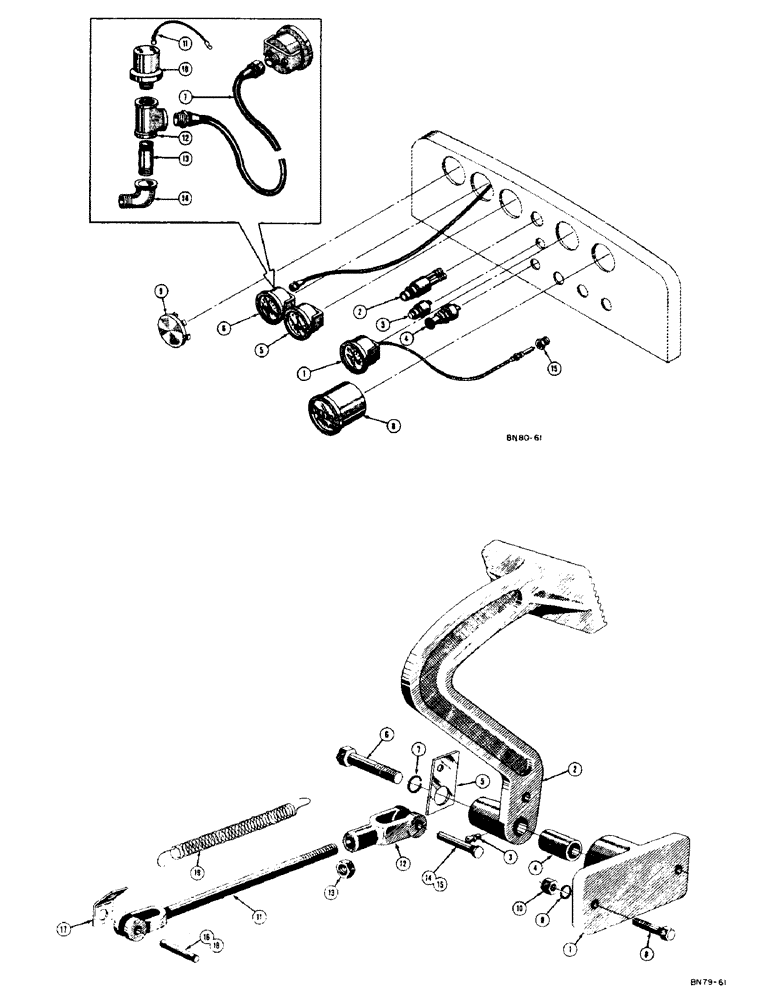

Запчасти Case 400 (124) - INSTRUMENT PANEL, (USED ON 500 MODELS FROM SERIAL #3003033), (06) - ELECTRICAL SYSTEMS

1

239759A1

GAUGE

- temperature (Includes ref. #15)

1шт.

2

10868

LOCKSWITCH - ignition

1шт.

3

D23216

SWITCH

- push button starter

1шт.

4

10855

X

SWITCH - light

1шт.

5

R18748

AMMETER

1шт.

6

A30326

GAUGE

- oil pressure

1шт.

7

D20271

HOSE - oil

1шт.

8

33267

CHAIN

METER - engine hours (6 volt) (Gas models only)

1шт.

33481

X

METER - engine hours (12 volt) (Diesel models only)

1шт.

9

30842

SPARE PART

PLUG - button

1шт.

32395

SEAL ASSY.

TERMINAL - bullet type, hour meter wire (Not shown)

1шт.

54772R2

TERMINAL CONNECTOR

TERMINAL - eyelet type, hour meter wire (Not shown)

2шт.

10

A27312

SWITCH

- pressure

1шт.

11

38555

WIRE - jumper

1шт.

12

221-1421

TEE,Pipe, 1/8" NPT

- pipe (1/2 NPT)

1шт.

13

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - pipe (1/8 NPT x 1-1/2)

1шт.

14

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- 90 degree street (1/8 NPT)

1шт.

15

D26015

FITTING

ADAPTER - temperature gauge

1шт.

1

11025

BELT, TRANSMISSION

BRACKET - mounting, clutch pedal, linkage

1шт.

2

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

PEDAL - clutch, linkage

1шт.

3

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - straight grease, drive type (Lincoln #5029), clutch pedal and linkage

1шт.

4

11031

SPACER

BUSHING - clutch pedal, linkage

1шт.

5

11470

BEARING

ANCHOR - spring, clutch pedal return, linkage

1шт.

6

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

HHCS - 5/8 - 11NC x 2-1/2, clutch pedal and linkage

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Clutch pedal and linkage 5/8"

1шт.

8

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

HHCS - 7/16 - 20NF x 1-1/4, clutch pedal and linkage

4шт.

9

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Clutch pedal and linkage 7/16"

2шт.

10

425-117

NUT,7/16"-20, G5

- hex. (7/16 - 20NF), clutch pedal and linkage

2шт.

11

31026

ROD - clutch (400 diesel only), pedal and linkage

1шт.

11035

BELT, TRANSMISSION

ROD - clutch (400 gas only), pedal and linkage

1шт.

48621

ROD - clutch (500 gas and diesel only), pedal and linkage

1шт.

12

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable, clutch pedal and linkage

1шт.

13

129-125

NUT,1/2"-20, G5

Clutch pedal and linkage 1/2"-20, G5

1шт.

14

O2499AB1

X

PIN - yoke, clutch pedal and linkage

1шт.

15

432-816

COTTER PIN,1/8" x 1"

clutch pedal and linkage 1/8" x 1"

1шт.

16

1337986C1

KIT

PIN - yoke, clutch pedal and linkage

1шт.

17

1337985C1

KIT

RETAINER - spring, clutch pedal return, linkage

1шт.

18

432-816

COTTER PIN,1/8" x 1"

clutch pedal and linkage 1/8" x 1"

2шт.

19

R33370

SPRING

- clutch pedal, linkage

1шт.
