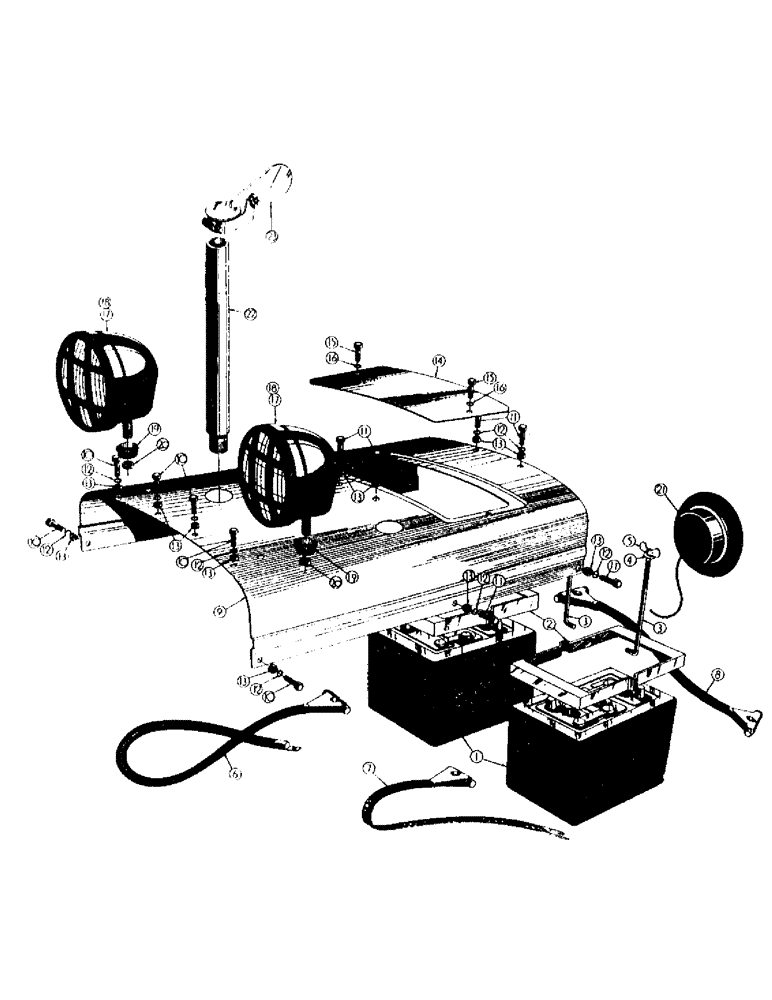

Запчасти Case 400 (068) - HOOD, BATTERY, AND RELATED PARTS - DIESEL, (USED UP TO S/N 11-1-56) (06) - ELECTRICAL SYSTEMS

1

A8325

BATTERY - 6 volt

2шт.

2

33545

BRACKET - battery hold down

2шт.

3

38892

BOLT - angle, battery hold down

4шт.

4

495-21038

WASHER,5/16"

4шт.

5

129-419

WING NUT,5/16"-18

NUT - wing (5/16 - 18 NC)

4шт.

6

30875

CABLE - battery, hot and ground (Used on all diesel models up to serial #3003033)

2шт.

7

30876

CABLE - battery jumper (Used on all diesel models up to serial #3003033)

1шт.

8

33523

BUSHING

HOOD - engine (Used on all 400 diesel models up to 1956 models)

1шт.

30763

HOOD - engine (Used on all 500 diesel models up to 1956 models) (Similar to 33523) (Not shown)

1шт.

9

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Hood

6шт.

10

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

Hood Hex, 3/8"-24 x 3/4", G5, Full Thd

8шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

12

129-123

NUT,3/8"-24, G5

14шт.

13

GI33522

CLIP

LID - battery inspection (Used on all 400 diesel models up to 1956 models)

1шт.

30766

LID

- battery inspection (Used on all 500 diesel models up to serial #3000015) (Similar to 33522) (Not shown)

1шт.

14

353501X1

SCREW

HHCS - battery inspection lid (1/4 - 28 NF x 1/2) (2 used with 33522, 4 used with 30766)

4шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

30901

LIGHT - head, 12 volt (Used on all 400 diesel models up to 1956 models)

2шт.

30901-1

UNIT - sealed beam, 12 volt (Not shown)

1шт.

17

30905

WASHER - adapter (Used with 30901 head light)

2шт.

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8" (Not shown)

2шт.

18

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex. jam (5/8 - 18 NF)

2шт.

19

30903

LIGHT - tail, 12 volt (Used on all diesel models)

1шт.

33686

BULB

- tail light, 12 volt (Not shown)

1шт.

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

SCREW - self tapping, tail light (#10 x 1/2) (Not shown)

3шт.

20

126620A1

HEX SOC SCREW,3/8" - 16 x 4.76mm

PIPE - exhaust (Used on all diesel models up to serial #3000015)

1шт.

21

D28028

CAP

RAIN CAP - exhaust (Optional) (Used on all diesel models up to 1956 models)

1шт.
