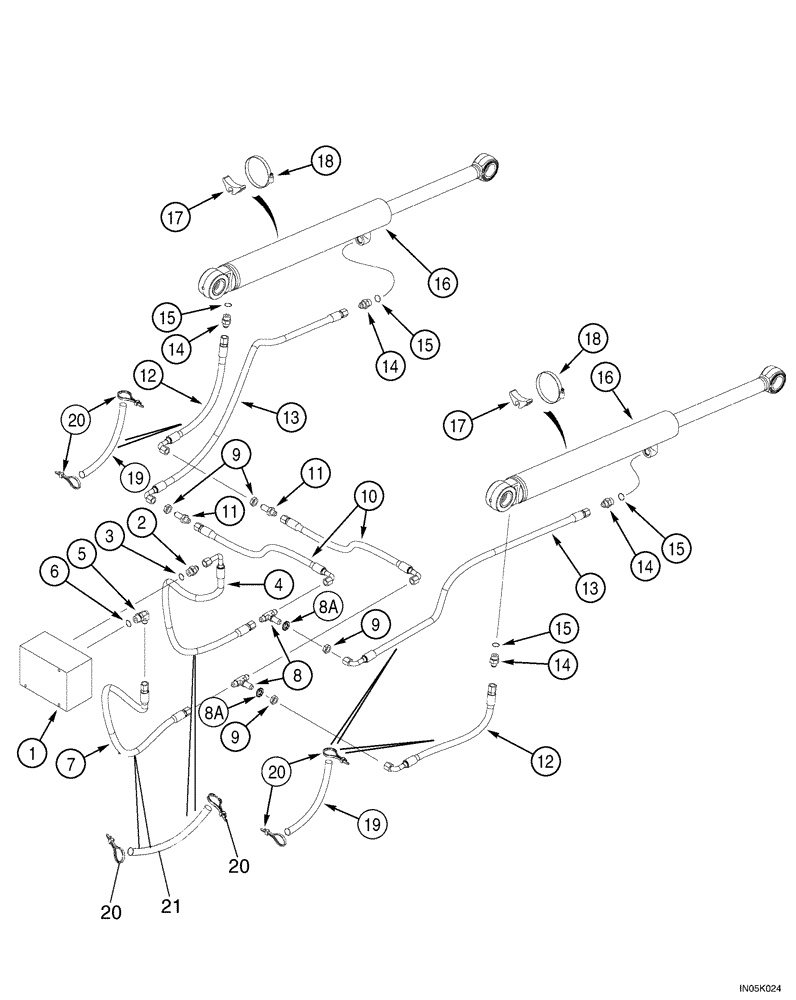

Запчасти Case 550H-IND (08-05) - HYDRAULICS, LIFT CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control See Figure(s) : 08-16, 08-17

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

315660A1

HOSE

944 mm (37-1/8 inch) Upper Port Of Control Valve

1шт.

5

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

315662A1

HOSE

852 mm (33-1/2 inch) Lower Port Of Control Valve

1шт.

8

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

2шт.

8a

D35268

SHIM,1/32" Thk

2шт.

9

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

10

322139A1

HOSE

590 mm (23-1/4 inch)

2шт.

11

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

12

315690A1

HOSE

500 mm (19-3/4 inch) Closed End

2шт.

13

315693A1

HOSE

1150 mm (45-1/4 inch) Rod End

2шт.

14

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 15

4шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

307112A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 574.7mm Stroke

76 ID x 574 mm Strk Lift See Figure: 08-09

2шт.

17

D142787

SPACER

2шт.

18

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

19

379980A1

Sleeve, Hose

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

1шт.

21

R12586

TAPE

2шт.
