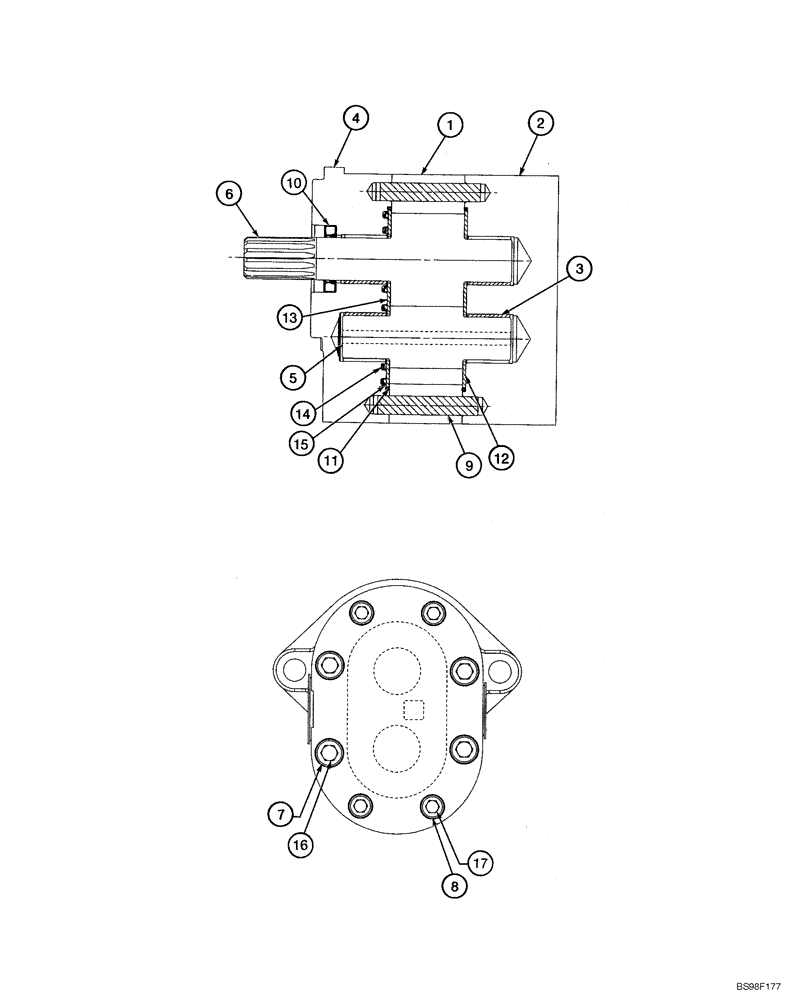

Запчасти Case 550H-IND (08-04) - PUMP, GEAR (08) - HYDRAULICS

360677A1

PUMP

Includes : 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

Plate Gear

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Sleeve Bearing

4шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

NSS

NOT SOLD SEPARAT

Shaft Idler

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Drive

1шт.

7

NSS

NOT SOLD SEPARAT

Washer

4шт.

8

NSS

NOT SOLD SEPARAT

Washer

4шт.

9

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

361942A1

SEAL KIT

Kit, Repair Consists Of : 10 - 15

1шт.

10

324578A1

OIL SEAL

Oil

1шт.

11

324579A1

SEALING RING

2шт.

12

324581A1

LARGE PLATE

PLATE, LARGE Wear

1шт.

13

324582A1

LARGE PLATE

PLATE, LARGE Wear

1шт.

14

324586A1

SEAL

1шт.

15

324587A1

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

Bolt, Socket 3/8 x 3-3/4

4шт.

17

NSS

NOT SOLD SEPARAT

Bolt, Socket 5/16 x 3-3/4

4шт.
