Запчасти Case 550H-IND (08-03) - HYDRAULICS, EQUIPMENT, CONTROL VALVE TO HYDRAULIC RESERVOIR (08) - HYDRAULICS

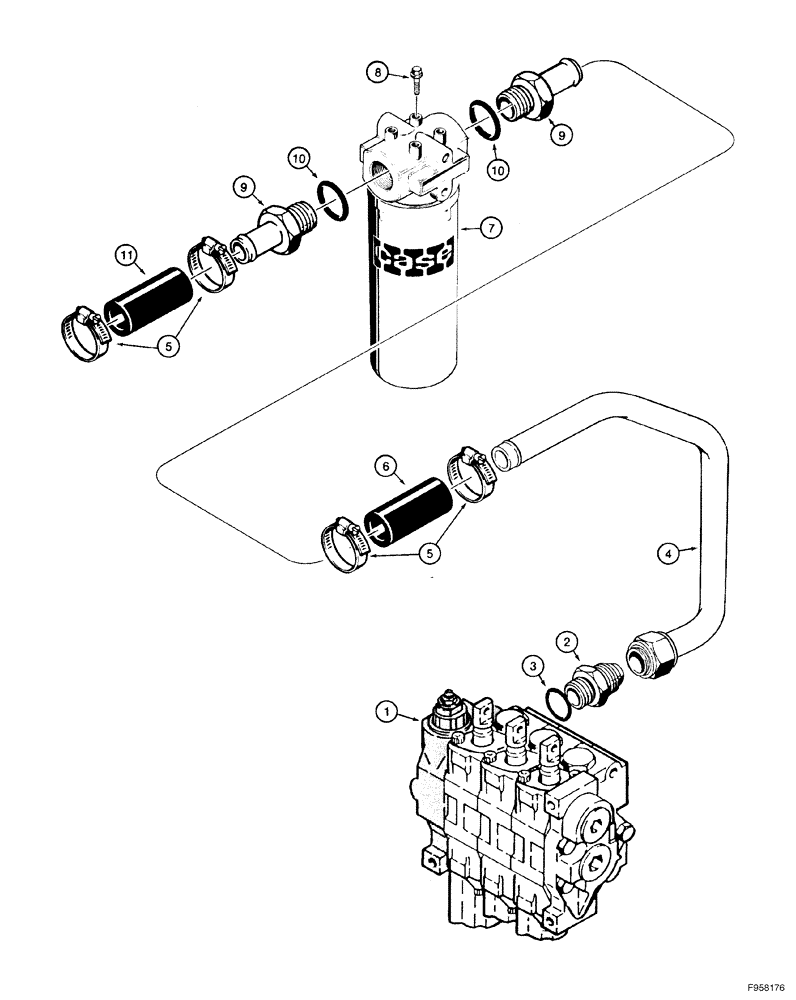

Схема запчастей Case 550H-IND - (08-03) - HYDRAULICS, EQUIPMENT, CONTROL VALVE TO HYDRAULIC RESERVOIR (08) - HYDRAULICS
5
6
9
10
4
11
7
3
9
5
10
8
1
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Valve, Control See Figure(s) : 08-16, 08-17

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

R58768

TUBE,25.4 mm OD

Return; If Used

1шт.

4

386588A1

TUBE

Return; If Used

1шт.

5

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

1 - 1-7/8

4шт.

6

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

89 mm (3-5/8 in) Cut From : S118383X

1шт.

7

R48993

FILTER

See Figure(s) : 06-16

1шт.

8

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

Flange 3/8 x 3/4; 8

4шт.

9

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Includes 10

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

R13912

HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3

Cut From : S118383X

1шт.

Выбрано товаров: 12
