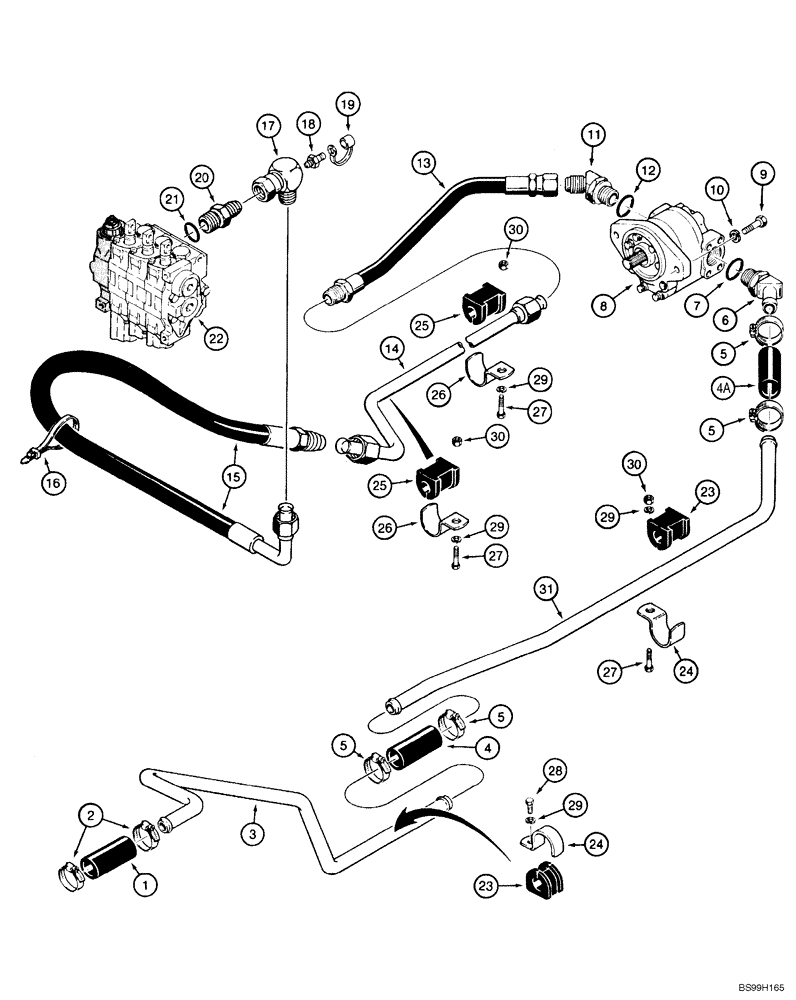

Запчасти Case 550H-IND (08-02) - HYDRAULICS, EQUIPMENT, RESERVOIR TO PUMP AND CONTROL VALVE (08) - HYDRAULICS

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

Supply At Hydraulic Tank

1шт.

2

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

1 - 1-7/8

2шт.

3

R47059

TUBE,31.75 - 33.35 mm OD

Supply

1шт.

4

D36350

HOSE

76 mm (3 inch) Supply Cut From : S118465X

1шт.

4a

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

Supply Cut From : S118465X

1шт.

5

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

4шт.

6

328205A1

ELBOW

45, 1-1/4 stem x 1-5/16 Or Includes : 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

360677A1

PUMP

See Figure(s) : 08-04

1шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

45, 1-1/16-12 fl x Or Includes : 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

348154A1

HOSE ASSY.

381 mm (15 inch) Pump Outlet

1шт.

14

R51932

TUBE ASSY.,1" OD

Pump to Control Valve

1шт.

15

R58762

HOSE

1220 mm (48-1/8 inch) Inlet Section

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

1шт.

17

R47069

ELBOW

90

1шт.

18

H434164

COUPLING

1шт.

19

H434163

DUST CAP

1шт.

20

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

REF

INSTRUCTION

Valve, Control See Figure(s) : 08-16, 08-17

1шт.

23

D67298

INSULATOR

2шт.

24

D68845

MOUNTING CLIP

2шт.

25

D67297

BLOCK

2шт.

26

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

2шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

28

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

29

492-11038

LOCK WASHER,3/8"

4шт.

30

425-106

NUT,3/8"-16, Cl 5

3шт.

31

R47058

TUBE,31.75 - 33.35 mm OD

Supply

1шт.
