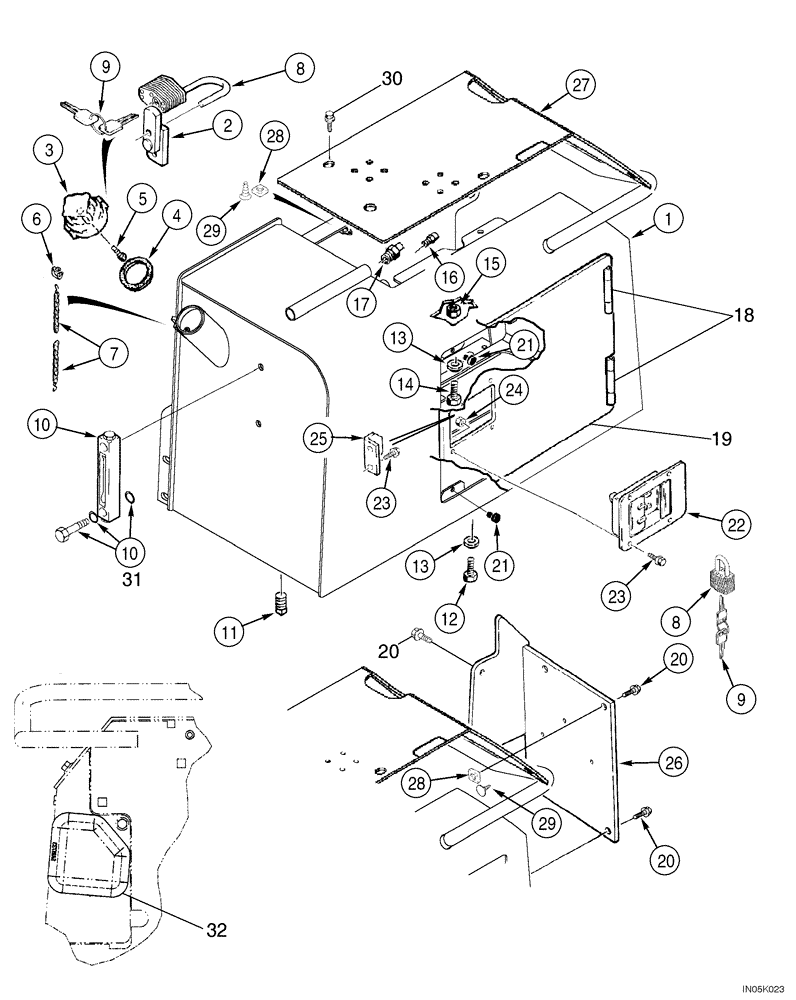

Запчасти Case 550H-IND (08-01) - RESERVOIR, HYDRAULIC - COVERS (08) - HYDRAULICS

360079A2

TANK

Hydraulic, Incl. : 1, 3, 11, 21-25

1шт.

1

326973A2

TANK

Reservoir, Includes : 2, Replaces 326973A1

1шт.

2

R46704

BRACKET

Tab Fill Tube Weld-On

1шт.

3

L128669

CAP

Fill Tube

1шт.

4

R46984

GASKET

Cover

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

2шт.

6

R48634

FASTENER

Hook

1шт.

7

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

8

D93753

PADLOCK

Includes : 9

2шт.

9

R29555

KEY

For Master Padlock Only

2шт.

9

D93751

SET OF 2 KEYS

Yale Padlock Only

2шт.

10

226456A1

LEVEL GAUGE

Sight Component Parts Not Serviced Separately

1шт.

11

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

1-1/4 Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

5шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

15

425-108

NUT,1/2" - 13, Gr 5

3шт.

16

R15536

VALVE

Relief Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

17

R15538

VALVE

Air Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

18

355364A1

FIXED HINGE

2шт.

19

366630A1

DOOR COVER

1шт.

20

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

Flange 3/8 x 3/4; 8

5шт.

21

A161780

BUMPER

2шт.

22

R56221

LATCH

1шт.

23

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

24

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

25

R56397

LARGE PLATE

PLATE, LARGE Catch

1шт.

26

R58343

COVER

Front

1шт.

27

326979A2

COVER ASSY

Top, Replaces 326979A1

1шт.

28

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

Square 3/8

6шт.

29

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

30

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

5шт.

31

345-199

ADHESIVE

1шт.

32

380801A1

CUSHION

1шт.
