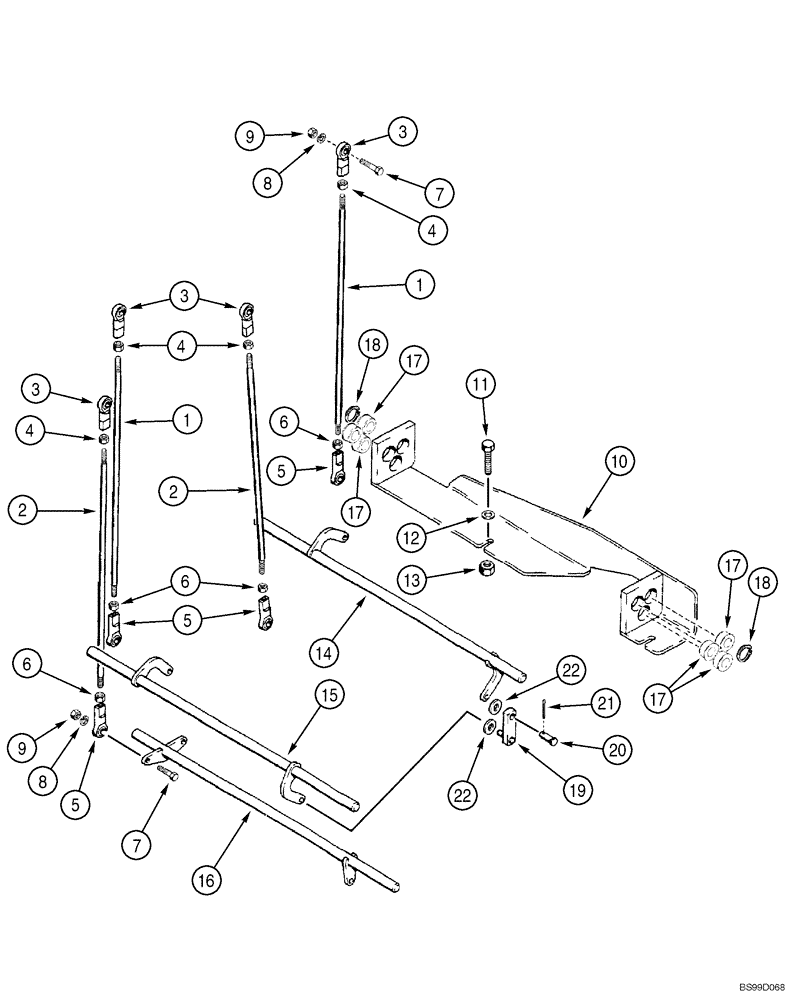

Запчасти Case 550H-IND (06-18) - CONTROLS, TRANSMISSION, CONNECTING RODS AND SHAFTS (06) - POWER TRAIN

1

R58657

ROD

Connecting, 452 mm (17-13/16 in) Track Speed Levers to Lower Cross Shafts

2шт.

2

106649A1

ROD

Connecting, 472 mm (18-9/16 in) Forward and Reverse Bellcranks to Lower Cross Shaft

2шт.

3

R47498

END

Ball Joint Upper Right Hand Threads

4шт.

4

425-155

JAM NUT,Jam, 5/16"-24, G5

RH Threads

4шт.

5

R58783

END

Ball Joint Lower Left Hand Threads

4шт.

6

129-216

JAM NUT,Jam, 5/16"-18, G5, LH

LH threads

4шт.

7

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

8

492-11031

LOCK WASHER,5/16"

Used as a spacer

8шт.

9

231-1445

NUT,5/16"-18, GB

8шт.

10

106641A1

BRACKET

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

D41740

WASHER

3/8

2шт.

13

231-1446

NUT,3/8" - 16, Gr 5

2шт.

14

R57883

SHAFT

Cross Track Speed Right Hand

1шт.

15

R57844

EDGE

Cutting, center, long track models, 72 inches OAL

1шт.

16

106639A1

SHAFT

Cross Forward/Neutral/Reverse

1шт.

17

130756A1

BUSHING

Plastic

6шт.

18

100-1462

SNAP RING,#62, Ext

6шт.

R58660

LINK

Consists Of : 19, 20

3шт.

19

NSS

NOT SOLD SEPARAT

Link

1шт.

20

D149287

PIN,7.9mm OD x 26.72mm L

Clevis

2шт.

21

432-612

COTTER PIN,3/32" x 3/4"

6шт.

22

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.
