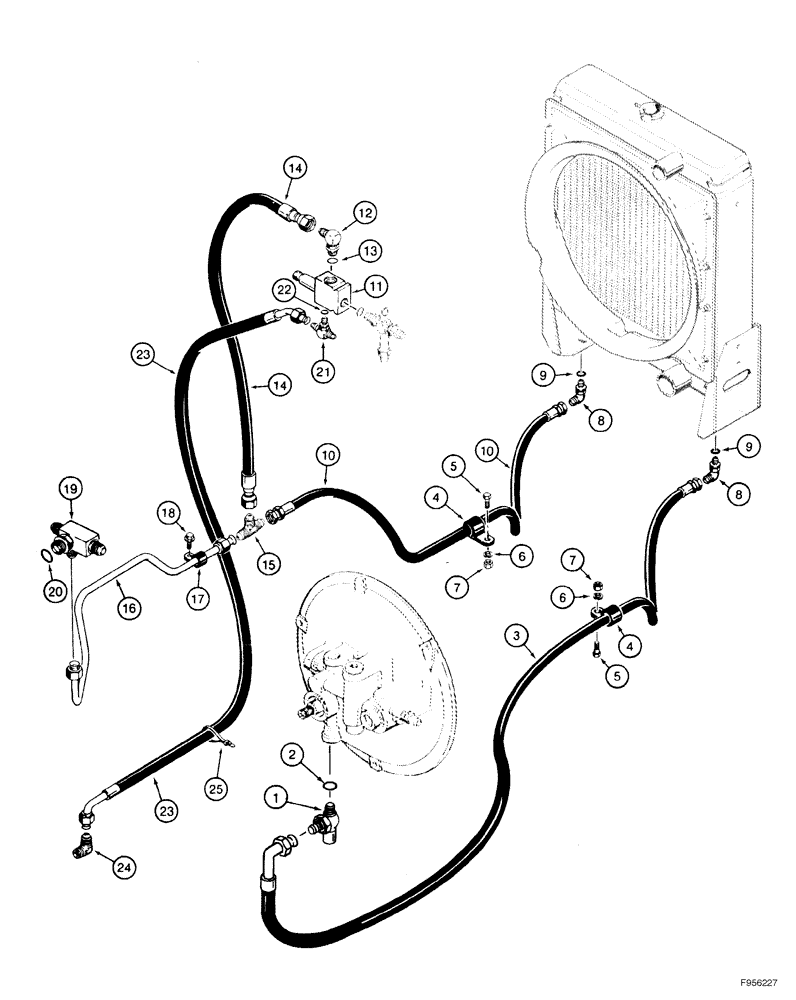

Запчасти Case 550H-IND (06-15) - HYDRAULIC CIRCUIT - CRAWLER, COOLING SYSTEM (06) - POWER TRAIN

1

R56771

FITTING

Includes : 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

R57654

HOSE ASSY.

1446 mm (57 inch) Torque, Serial Range: Converter-Cooler

1шт.

4

D40471

CLAMP

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90, 7/8 fl x adj Or Incl. : 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

R57655

HOSE ASSY.

1060 mm (41-3/4 inch) Cooler Return

1шт.

11

R57597

VALVE

Regulator Component Parts Not Serviced Separately See Below

1шт.

S301087

SEAL KIT

Service Repair For : R57597 Services External O-Rings and Seals

1шт.

12

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

90, 7/8 fl x 3/4 adj Or Includes : 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

R57652

HOSE ASSY.

575 mm (22-3/4 inch) Regulator, Serial Range: Valve-Tee

1шт.

15

218-1580

TEE,37º, 1 1/16"-12 x 7/8"-14, Br

1шт.

16

R58823

TUBE,19.05 mm OD

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

18

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

Flange 3/8 x 3/4; 8

1шт.

19

1997012C1

TEE

Included With Transmission, Includes : 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl, Includes : 22

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

R34863

HOSE

889 mm (35 inch) Regulator, Serial Range: Valve-Transmission

1шт.

24

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

1шт.
