Запчасти Case 550H-IND (06-14) - HYDRAULIC CIRCUIT - CRAWLER, TRANSMISSION SUCTION LINE (06) - POWER TRAIN

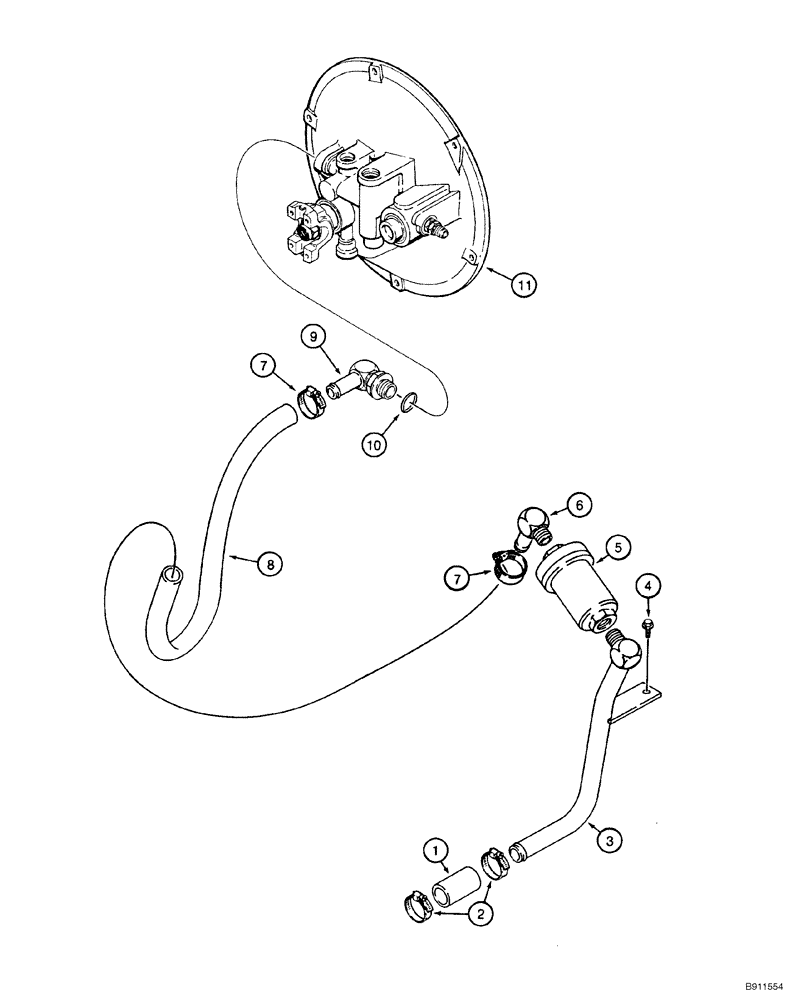

Схема запчастей Case 550H-IND - (06-14) - HYDRAULIC CIRCUIT - CRAWLER, TRANSMISSION SUCTION LINE (06) - POWER TRAIN
7
2
11
8
6
5
9
10
3
4
1
7

Артикул

Название

Примечание

Количество

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

Cut From : S118465X

1шт.

2

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2шт.

3

R58825

TUBE,31.75 mm OD

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

Flange 3/8 x 3/4; 8

1шт.

5

D35144

FILTER

FILTER, OIL Transmission Oil See Figure(s) : 06-16

1шт.

6

R57811

FITTING

90

1шт.

7

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

1 - 1-7/8

2шт.

8

D23886

HOSE

432 mm (17 inch) Cut From : S118465X

1шт.

9

R56769

FITTING

90, Includes : 10

1шт.

10

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

11

1348881C2

CONVERTER

Torque, See Figure(s) : 06-02

1шт.

Выбрано товаров: 11
