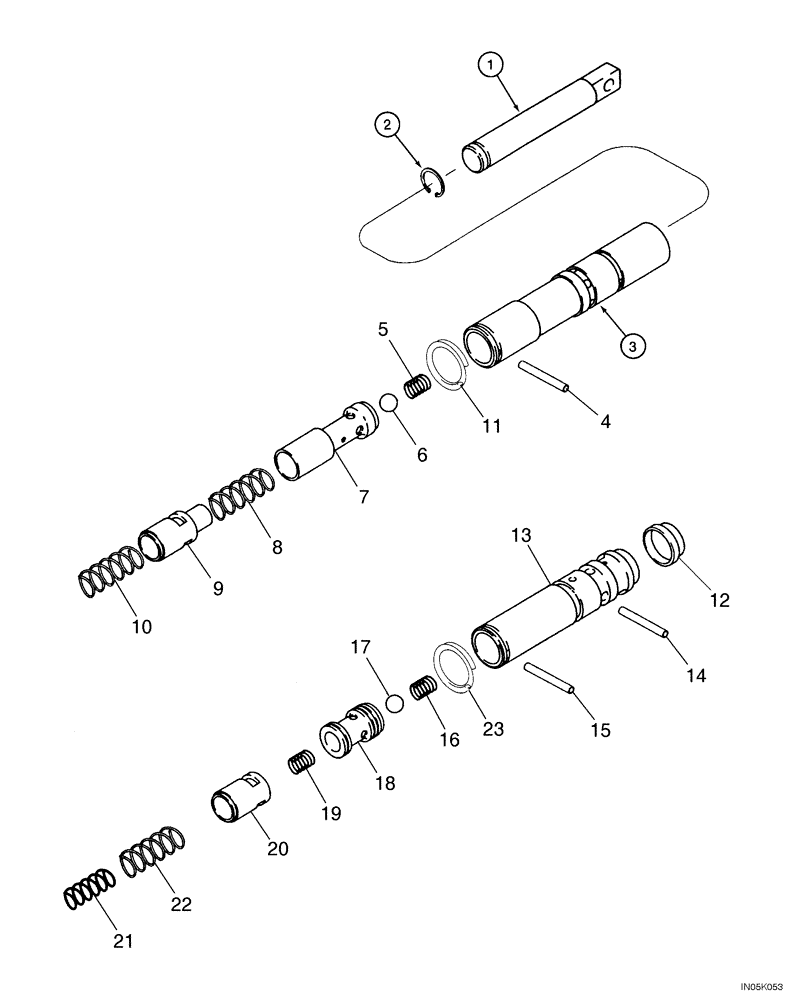

Запчасти Case 550H-IND (06-12) - TRANSMISSION, VALVE, CONTROL - CLUTCH CUTOUT SPOOL, FORWARD/REVERSE MODULATION SPOOL (06) - POWER TRAIN

REF

INSTRUCTION

Transmission, Includes : 1 - 23 For Additional Components See Figure(s) : 06-04 - 06-12, 07-03

1шт.

189265A3

SPOOL

Clutch Cutout Consists Of : 1 - 11, Replaces 189265A2

2шт.

1

138436A1

ROD

Clutch Cutout Spool

1шт.

2

G107637

RING, SNAP

RING SNAP Retaining, Clutch Cutout Spool

1шт.

189269A3

SPOOL

Consists Of : 3 - 11, Clutch Cutout, Replaces 189269A2

1шт.

3

189266A3

SPOOL

Clutch Cutout

1шт.

4

37-1214

DOWEL,1/8" x 7/8"

Dowel 1/8 x 7/8, Clutch Cutout Spool

1шт.

5

129700A1

SPRING

Clutch Cutout Spool

1шт.

6

211-1012

BALL,3/8" Dia

3/8; 24,CRS,Clutch Cutout Spool

1шт.

7

189267A2

SPOOL

Clutch Cutout, Replaces 189267A1

1шт.

8

189259A1

SPRING

Inner, Clutch Cutout Spool

1шт.

9

189268A2

PISTON

Clutch Cutout Spool, Replaces 189268A1

1шт.

10

121866A1

SPRING

Outer, Clutch Cutout Spool

1шт.

11

102-1393

SNAP RING,#93, Ext, Spiral

Retaining No. 93, Clutch Cutout Spool

1шт.

126430A3

SPOOL

Consists Of : 12 - 23, Forward/Reverse Modulation

1шт.

12

121494A1

STOP

Forward/Reverse Modulation Spool

1шт.

13

126255A3

SLEEVE

Forward/Reverse Modulation Spool

1шт.

14

132923A1

PIN

Dowel 3 x 24 mm, Forward/Reverse Modulation Spool

1шт.

15

37-1214

DOWEL,1/8" x 7/8"

Dowel 1/8 x 7/8, Forward/Reverse Modulation Spool

1шт.

16

129700A1

SPRING

Check Valve, Forward/Reverse Modulation Spool

1шт.

17

211-1012

BALL,3/8" Dia

3/8; 24,CRS, Forward/Reverse Modulation Spool

1шт.

18

126252A1

SPOOL

Forward/Reverse Modulation Spool

1шт.

19

127427A1

SPRING

Forward/Reverse Modulation Spool

1шт.

20

121492A1

PISTON

Forward/Reverse Modulation Spool

1шт.

21

121870A1

SPRING

Forward/Reverse Modulation Spool

1шт.

22

121871A1

SPRING

Forward/Reverse Modulation Spool

1шт.

23

102-1393

SNAP RING,#93, Ext, Spiral

Retaining No. 93, Forward/Reverse Modulation Spool

1шт.
