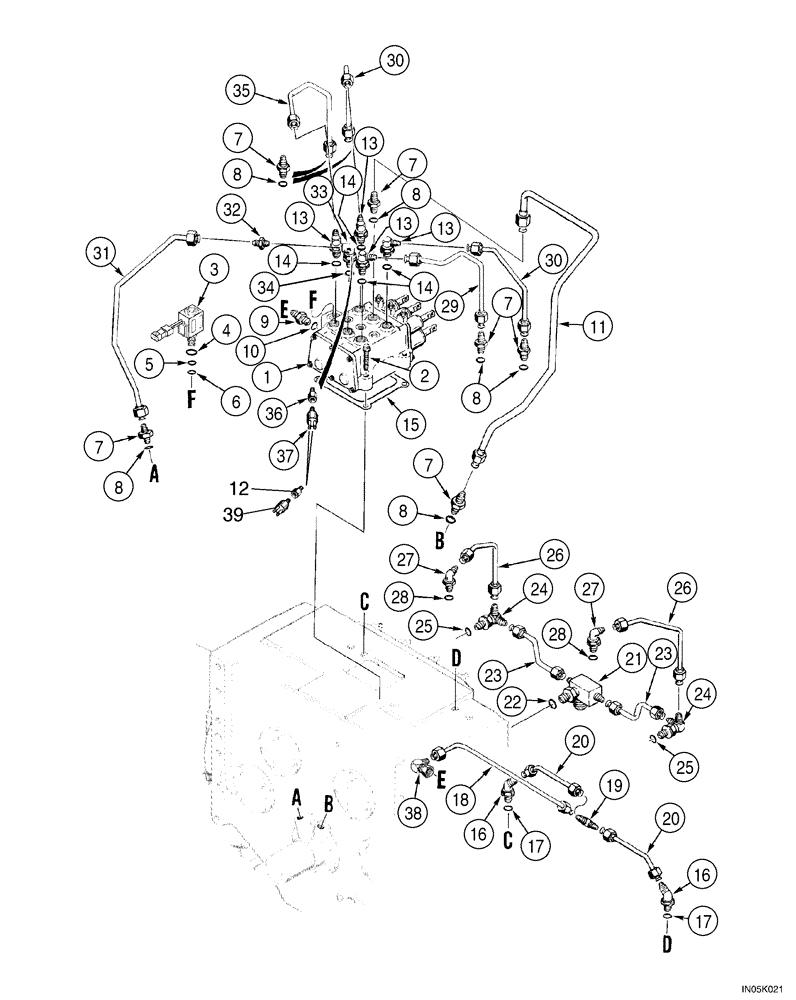

Запчасти Case 550H-IND (06-10) - TRANSMISSION, HYDRAULIC LINES (06) - POWER TRAIN

REF

INSTRUCTION

Transmission, Includes : 1 - 39 For Complete Assembly See Figure(s) : 06-04 - 06-12, 07-03

1шт.

1

125588A5

VALVE

Control See Figure: 06-11, Replaces 125588A4 Used On Some Models

1шт.

2

180-607

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

Special 3/8 x 2; 8

4шт.

349296A1

CARTRIDGE

Valve, 12 V Brake Consists Of: Ref. 3 - 6; If Used

1шт.

349297A1

SOLENOID VALVE

Valve, 24 V Brake Consists Of: Ref. 3 - 6; If Used

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Solenoid 12 V; Used With 349296A1, Solenoid; If Used

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Solenoid 24 V; Used With 349297A1, Solenoid; If Used

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

6

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Incl. 8

7шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Adapter, 9/16 fl x 7/16 Or Includes : 10

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

G110408

TUBE,12.7 mm OD x 273, 472 mm L

Forward

1шт.

12

217-1032

ADAPTER,1/8" - 27 NPT x 1/8" - 27 NPT

1/8M x 1/8F; Used With Ref. 39

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes : 14

4шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

1986527C1

GASKET

Mounting

1шт.

16

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 17

2шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

140920A2

TUBE,9.25 mm OD, 208.2, 150.5 mm Length

Parking Brake Supply

1шт.

19

218-593

TEE,9/16"-18, 37 Degree

9/16 fl x fl x fl

1шт.

20

1997023C2

TUBE,9.52 mm OD

Parking Brake

2шт.

21

1997012C1

TEE

Includes : 22 See Figure: 06-15 Attaches To : Ref. 16

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

1997107C1

TUBE,9.52 mm OD

To Tee at Brake Housing

2шт.

24

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 25

2шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

1997029C1

TUBE,9.52 mm OD

Track Lube

2шт.

27

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 28

2шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

135916A1

TUBE,12.7 mm OD, 222.6, 148.1 mm Length

Low Track Right Hand

1шт.

30

1997021C2

TUBE,12.7 mm OD

High Track

2шт.

31

G108276

TUBE,0.5" OD

Reverse

1шт.

32

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

3/4 fl x 3/8 PT

1шт.

33

G107178

ELBOW

90 Includes : 34

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

135918A1

TUBE,12.7 mm OD, 222.6, 148.1 mm Length

Low Track Left Hand

1шт.

36

R52651

FITTING

Restrictor

1шт.

37

D139904

SWITCH

Pressure Backup Alarm; No Longer Available, Order 333268A1, Ref. 39; If Replacing This Switch, Must Also Order Ref. 12 ; For Service

1шт.

38

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

39

333268A1

SWITCH, PRESSURE

PRESSURE SWITCH Backup Alarm

1шт.
