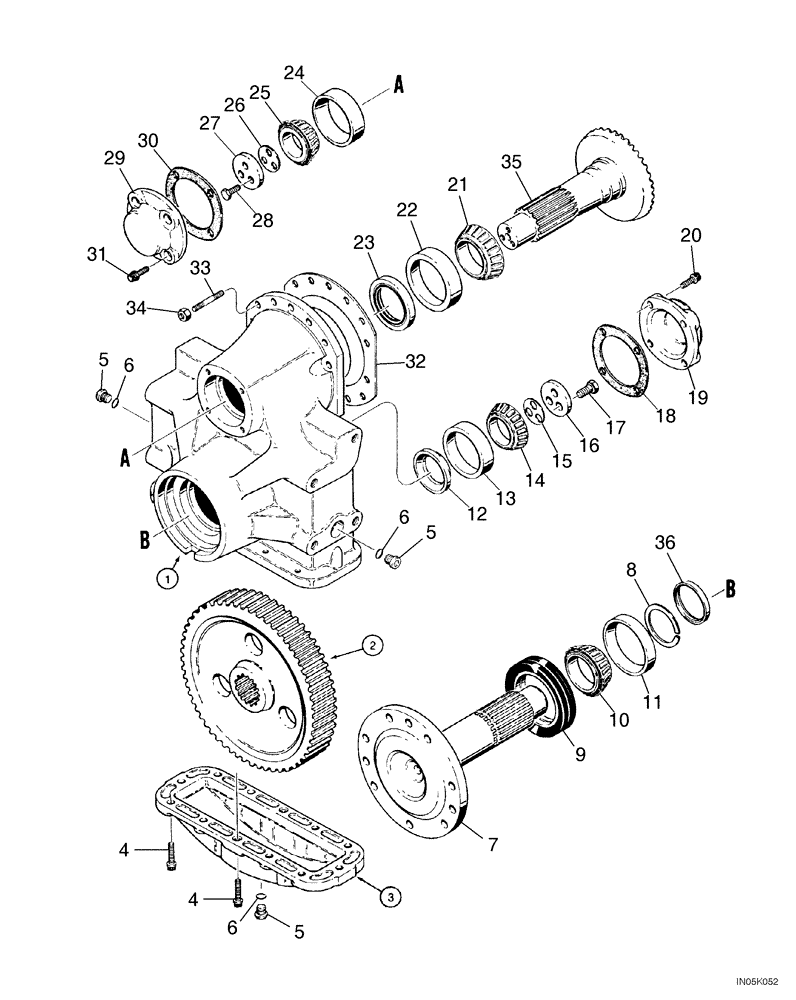

Запчасти Case 550H-IND (06-09) - TRANS., FINAL DRIVE, 1627 MM (64 IN) GAUGE WIDE TRACK (WT) OR LOW GROUND PRESSURE (LGP) MODELS (06) - POWER TRAIN

REF

INSTRUCTION

Transmission, Includes : 1 - 36 For Complete Assembly See Figure(s) : 06-04 - 06-12, 07-03

1шт.

G104730

TRANSMISSION

Drive Assy Final Drive Consists Of : 1 - 32,36

2шт.

1

G104731

HOUSING

1шт.

2

G101531

GEAR

76 T

1шт.

3

1348873C1

COVER

Lower Use Sealant : B17555

1шт.

B17555

LOCTITE

Sealant No. 515, 50 ml

1шт.

4

180-610

12 PT SCREW,Flg, 1/2" - 13 x 1 1/2", Gr 8

Special 1/2 x 1-1/2; 8

12шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

G106477

SHAFT

Final Drive

1шт.

8

101-11325

SNAP RING,#325, 3.070, Ext

Retaining No. 325

1шт.

9

1981095C1

SEAL

U-Cup Outer

1шт.

10

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

Final Drive Shaft Outer

1шт.

11

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Final Drive Shaft Outer

1шт.

12

G100325

SPACER

Spacer

1шт.

13

L35931

BEARING CUP

Final Drive Shaft Inner

1шт.

14

630203C91

TAPERED BEARING

Cone Final Drive Shaft Inner

1шт.

15

R21741

SHIM,.005" Thk

(0.127 mm)

1шт.

15

R21742

SHIM,.007" Thk

(0.178 mm)

1шт.

15

R21743

SHIM,.020" Thk

(0.508 mm)

1шт.

16

1997099C1

PLATE

1шт.

17

110-14

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

3шт.

18

G101598

GASKET

Cover

1шт.

19

G105822

COVER ASSY

Final Drive Shaft

1шт.

20

180-609

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

Special 1/2 x 1; 8

4шт.

21

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

Input Shaft Inner

1шт.

22

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Input Shaft Inner

1шт.

23

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

Oil

1шт.

24

895366C1

BEARING CUP

Cup Input Shaft Outer

1шт.

25

1997114C1

TAPERED BEARING,55.001 mm ID x 39 mm

Cone Input Shaft Outer

1шт.

26

G100328

SHIM,.005" Thk

(0.127 mm)

1шт.

26

G100329

SHIM,.007" Thk

(0.178 mm)

1шт.

26

G100330

SHIM,.020" Thk

(0.508 mm)

1шт.

27

1997100C1

PLATE

1шт.

28

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

Lock 1/2 x 1-1/4; 8

3шт.

29

G105822

COVER ASSY

1шт.

30

G101598

GASKET

Cover

1шт.

31

180-609

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

Special 1/2 x 1; 8

4шт.

32

A50199

SHIM,.003" Thk

(0.076 mm)

1шт.

32

A50198

SHIM,.005" Thk

(0.127 mm)

1шт.

32

1997091C1

SHIM

0.508 mm (0.02 in)

1шт.

33

308713A1

STUD

24шт.

34

232-4118

NUT,1/2"-13, GC

24шт.

35

1348973C1

GEAR, BEVEL

BEVEL GEAR Includes Pinion Shaft Matched Set, See figure 06-04

1шт.

138971A1

SEAL KIT

Package, Includes : 32 For Additional Components See Figure(s) : 06-04 - 06-09

1шт.

138973A1

SEAL KIT

Package, Final Drive Consists Of : 6,9,15,18,23,26-28,30,32

1шт.

36

G107232

SPACER

Spacer

1шт.
