Запчасти Case 550H-IND (06-04) - TRANSMISSION, HOUSING, BEVEL PINION SHAFT AND GEAR (06) - POWER TRAIN

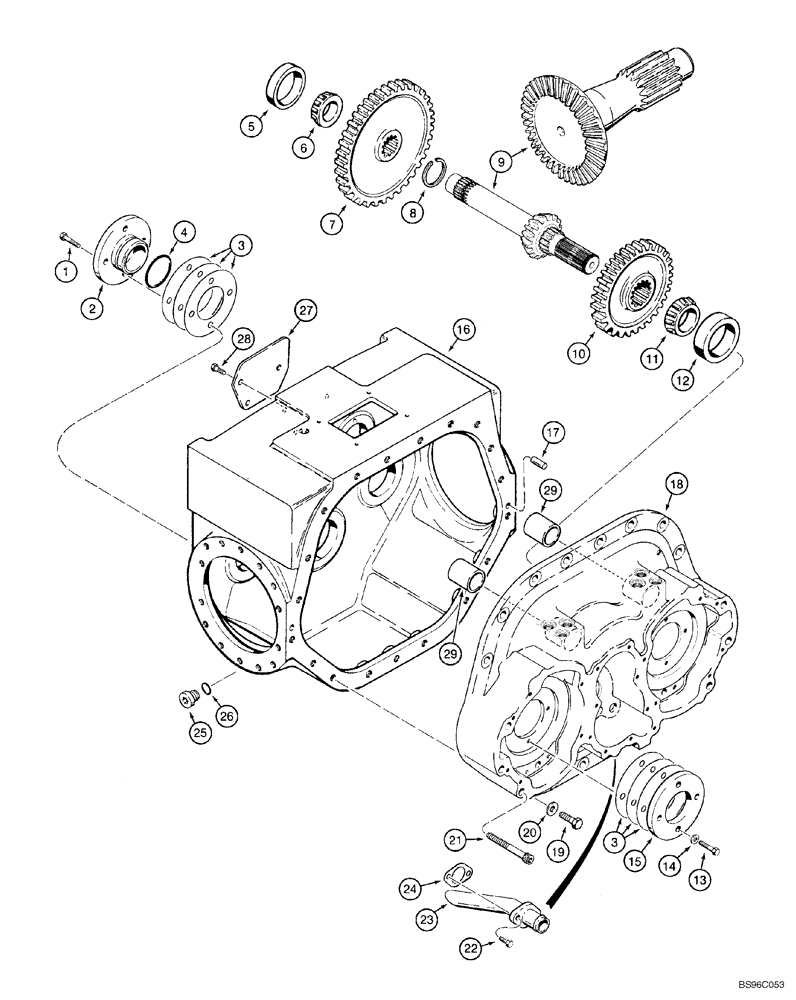

Схема запчастей Case 550H-IND - (06-04) - TRANSMISSION, HOUSING, BEVEL PINION SHAFT AND GEAR (06) - POWER TRAIN
22
16
17
20
2
13
5
8
26
25
18
4
11
29
3
27
21
9
23
19
6
12
14
7
1
28
15
29
24
10
3

Артикул

Название

Примечание

Количество

130727A1

TRANSMISSION

1346 mm (53 inch) Gauge Long Track (LT) Models, Includes : 1 - 29 For Complete Assembly See Figure(s) : 06-05 - 06-12, 07-03

1шт.

130728A1

TRANSMISSION

1627 mm (64 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models, Includes : 1 - 29 For Complete Assembly See Figure(s) : 06-04 - 06-12, 07-03

1шт.

1

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

2

G103644

COVER ASSY

2шт.

3

G103645

SHIM,.003" Thk

(0.076 mm)

1шт.

3

G103647

SHIM,.010" Thk

(0.254 mm)

1шт.

3

1348980C1

BLOCK

0.504 mm (0.02 in)

1шт.

4

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

2шт.

5

A50264

BEARING CUP,72mm OD x 14.2mm W

Cup Rear

2шт.

6

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

Rear

2шт.

7

G103778

GEAR

51 T Driven Low Clutch Rear

2шт.

8

A27085

RING

Retaining

2шт.

REF

INSTRUCTION

Transmission Assy

1шт.

9

1348973C1

GEAR, BEVEL

BEVEL GEAR Includes Pinion Shaft Matched Set

2шт.

10

1981357C1

PINION

Gear, 43 T Driven High Clutch Front

2шт.

11

A31264

ROLLER BEARING,1.625" ID x 1"

Bearing, Front

2шт.

12

ST973

TAPERED BEARING,1.688" ID x 3.126" OD x 0.9515"

Bearing, Cup Front

2шт.

13

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

14

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

13/32 x 13/16 x 3/32

8шт.

15

1348975C1

RETAINER

PLATE, LARGE Retainer

2шт.

16

1997054C1

HOUSING

Use Sealant : B17555, B17556

1шт.

B17555

LOCTITE

Sealant No. 515, 50 ml

1шт.

B17556

LOCTITE

Sealant No. 515, 300 ml

1шт.

17

37-1820

DOWEL,1/2" x 1 1/4"

Pin, 1/2 x 1-1/4

2шт.

18

1348959C2

COVER

Use Sealant : B17555, B17556

1шт.

B17555

LOCTITE

Sealant No. 515, 50 ml

1шт.

B17556

LOCTITE

Sealant No. 515, 300 ml

1шт.

19

107-91028

LOCK BOLT,Locking, 5/8"-11 x 1 3/4", G8

13шт.

20

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

21/32 x 1-5/16 x 3/32

13шт.

21

61-35064

HEX SOC SCREW,1/2"-13 x 4"

Socket 1/2 x 4

6шт.

22

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

2шт.

23

A50110

TUBE

Suction

1шт.

24

1981223C1

GASKET

Mounting

1шт.

25

9841223

PLUG,1-1/16" - 12 ORB

Incl. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

1997121C1

LARGE PLATE

PLATE, LARGE If Equipped

1шт.

28

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

If Equipped

3шт.

29

1348982C1

WEAR PLATE

Sleeve If Equipped

2шт.

138971A1

SEAL KIT

Package, Includes : 3, 4, 24, 27 For Additional Components See Figure(s) : 06-04 - 06-09

1шт.

Выбрано товаров: 39
