Запчасти Case 550H-IND (06-03) - MOUNTING, TRANSMISSION AND DIPSTICK TUBE (06) - POWER TRAIN

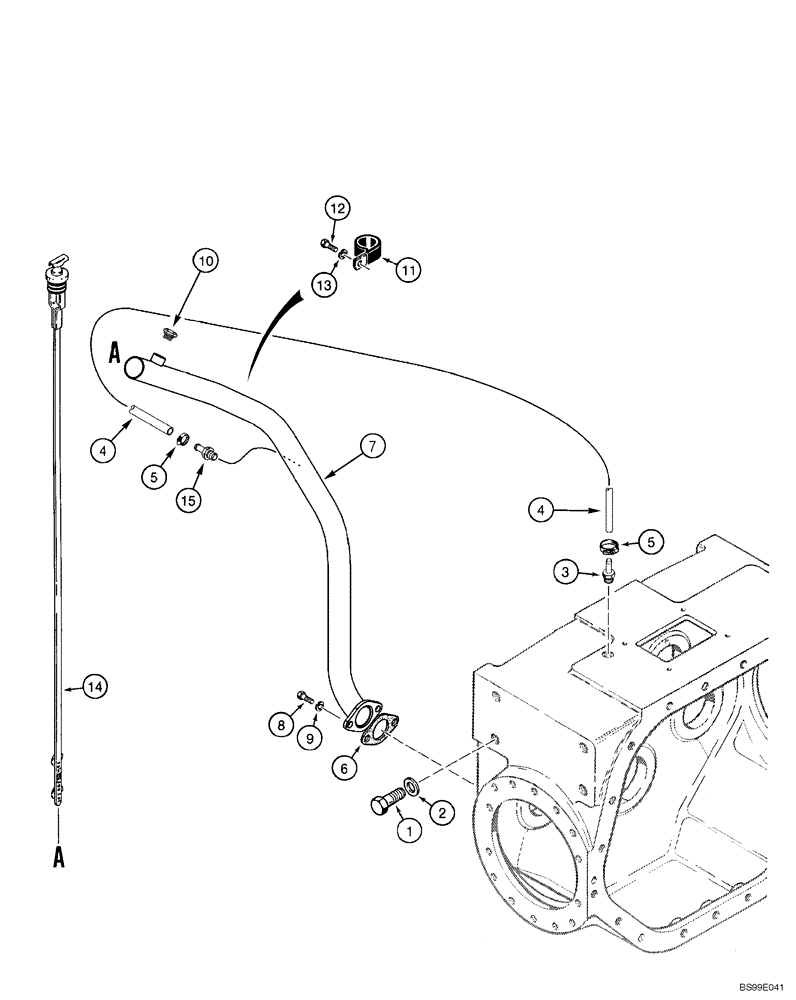

Схема запчастей Case 550H-IND - (06-03) - MOUNTING, TRANSMISSION AND DIPSTICK TUBE (06) - POWER TRAIN
10
5
2
11
8
9
4
6
12
7
5
14
3
1
13
15
4

Артикул

Название

Примечание

Количество

1

107-91228

LOCK BOLT,Locking, 3/4"-10 x 1 3/4", G8, Full Thd

8шт.

2

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19.8 x 44.5 x 5.6

8шт.

3

217-209

FITTING

Adapter 3/8 PT x 1/4

1шт.

4

H435604

FUEL HOSE,6.35 mm ID x 381.00 mm, SAE 30R6, SAE 30R7

Cut from Bulk Hose

1шт.

5

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1/4 - 5/8

2шт.

6

R47073

GASKET

Mounting Included in Seal Kit : 138971A1

1шт.

7

334228A2

TUBE,38.1 mm OD, 969, 515 mm Length

Dipstick

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

D63543

BREATHER

1шт.

11

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

12

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

R52797

DIPSTICK

1шт.

15

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

1/4 stem x 1/8 PT

1шт.

Выбрано товаров: 15
