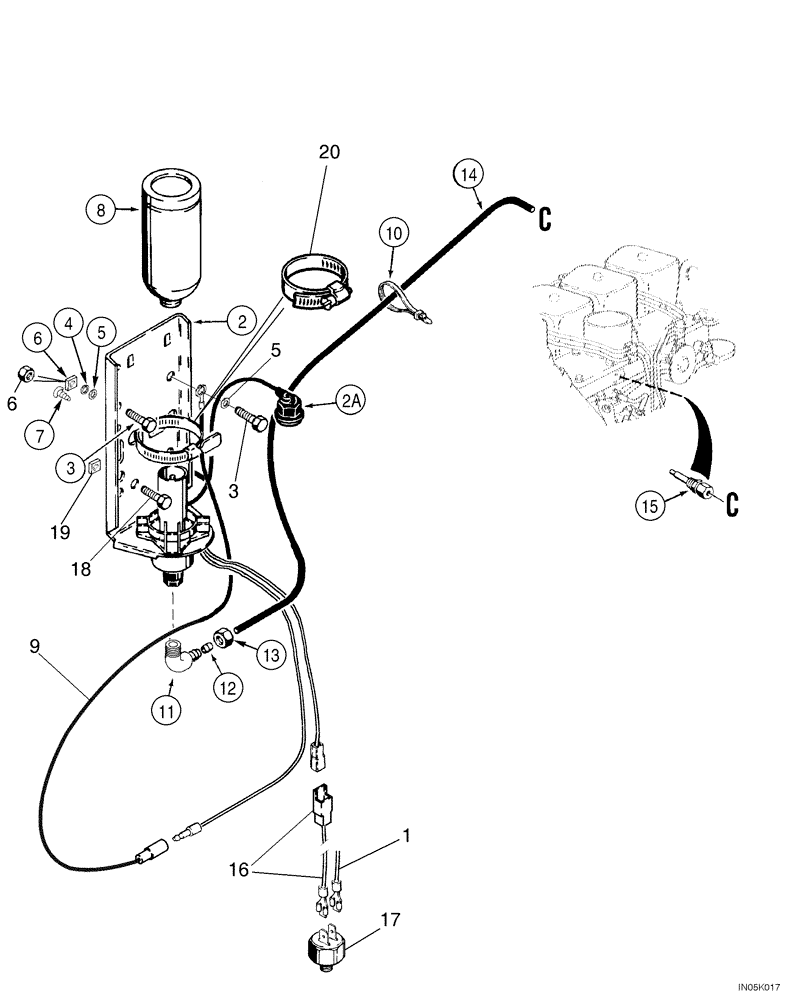

Запчасти Case 550H-IND (04-16) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

338943A1

HARNESS

Front; No Longer Available, Order 338943A2 Ref.1A

1шт.

1a

338943A2

HARNESS

Front Not Illustrated, For Continuation of Harness See Figure(s) : 04-08, 04-11

1шт.

2

A172116

VALVE

Solenoid, 12V, 3 cc Cold Start, Includes : 2A

1шт.

2a

254729A1

SET OF PARTS

Cap and Cord

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If Used

2шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If Used

2шт.

4

492-11031

LOCK WASHER,5/16"

2шт.

5

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

6

129-855

SQUARE NUT,Sq, 5/16"-18

Used with Ref. 3 (Part 413-512); If Used

2шт.

6

232-5345

FLANGE NUT,Flg, 5/16"-18

Used With Ref. 3 (Part 413-516); If Used

2шт.

7

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

8

310992A1

START SPRAY FLUID

Ether

1шт.

9

R51632

ELECTRICAL WIRE

WIRE Ground

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

3шт.

11

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube, Incl. 12, 13

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

14

D145367

TUBE

762 mm (30 in) Cut From : L60539X, Replaces D131609 (24in)

1шт.

15

A172900

NOZZLE CAP

Atomizer Component Parts Not Serviced Separately

1шт.

16

182448A1

ELECTRICAL WIRE

WIRE Jumper If Equipped

1шт.

16

182450A1

ELECTRICAL WIRE

WIRE Jumper If Equipped

1шт.

17

A172117

SWITCH

Ether Temperature

1шт.

18

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

19

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

2шт.

20

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

WORM GEAR 3.25/4.125

1шт.

21

223838A1

CONTROL

Not Illustrated, See Figure 04-04

1шт.
