Запчасти Case 550H-IND (04-15) - ALARM, BACKUP (04) - ELECTRICAL SYSTEMS

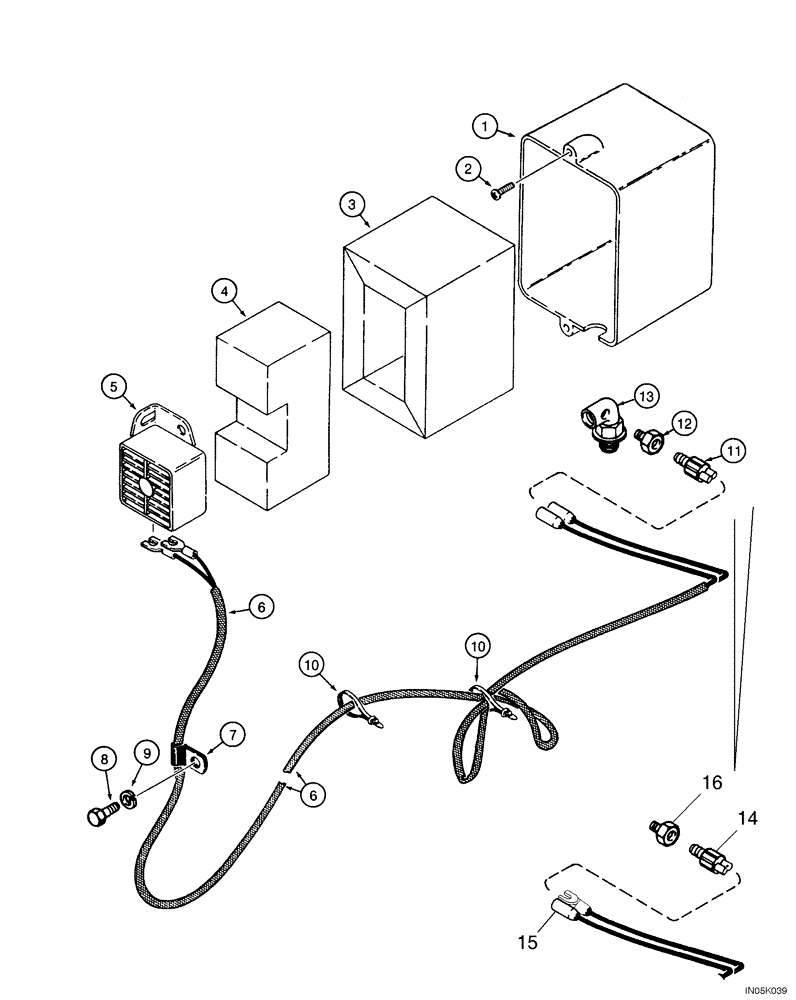

Схема запчастей Case 550H-IND - (04-15) - ALARM, BACKUP (04) - ELECTRICAL SYSTEMS
1
4
6
3
8
10
7
11
5
14
6
10
13
9
16
12
2
15

Артикул

Название

Примечание

Количество

1

R50647

BOX

Cover

1шт.

2

261-55712

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

Pointed

2шт.

3

R50648

FOAM

Seal

1шт.

4

R51815

PAD

254 mm (10 in) Cut From : R30870

1шт.

5

L112318

ALARM

Backup

1шт.

6

361795A1

ELECTRICAL WIRE

WIRE Harness Backup Alarm, Used With Ref.11

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

5/8 ID, Replaces 515-23159

1шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Nylon, 15 in

2шт.

11

D139904

SWITCH

Pressure Backup Alarm; No Longer Available, Order 333268A1, Ref. 14; If Replacing This Switch, Must Also Order Ref. 15, 16 ; For Service

1шт.

12

R52651

FITTING

Restrictor; Used With Ref. 11

1шт.

13

G107178

ELBOW

90 See Figure(s) : 06-10

1шт.

14

333268A1

SWITCH, PRESSURE

PRESSURE SWITCH Backup Alarm

1шт.

15

361795A2

ELECTRICAL WIRE

WIRE Harness Backup Alarm; Used With Ref. 14

1шт.

16

217-1032

ADAPTER,1/8" - 27 NPT x 1/8" - 27 NPT

1/8M x 1/8F; Used With Ref. 14

1шт.

Выбрано товаров: 16
