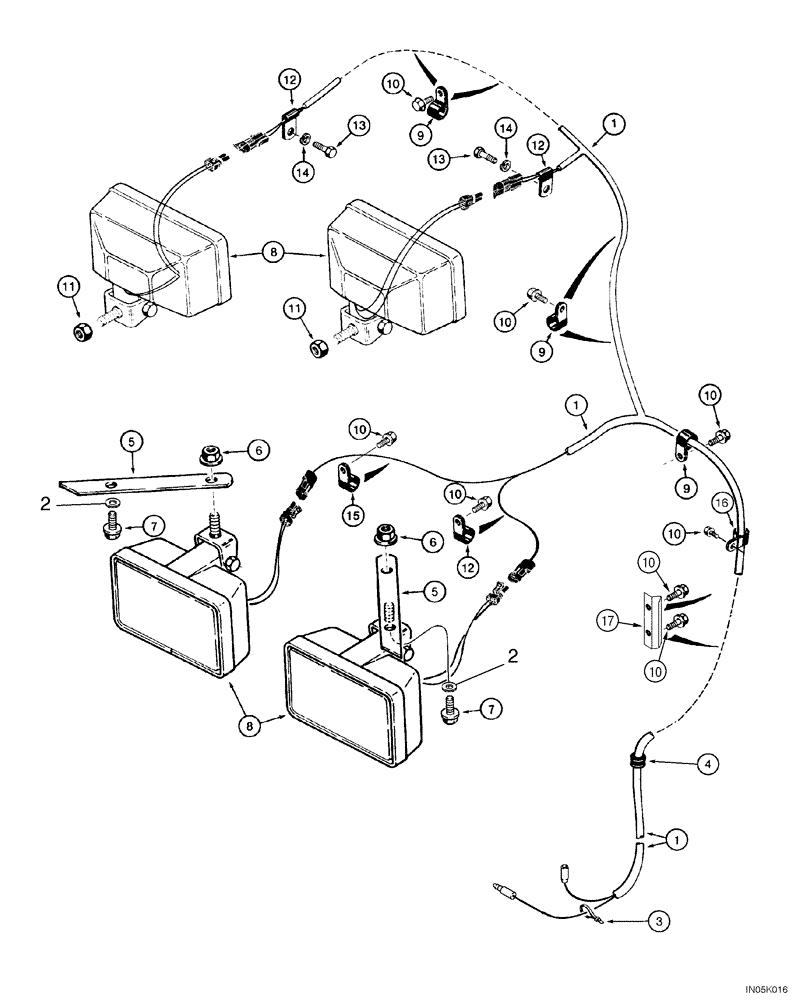

Запчасти Case 550H-IND (04-13) - HARNESS, LAMP (04) - ELECTRICAL SYSTEMS

1

393825A1

HARNESS

Lamp, Replaces R58397

1шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

5шт.

4

D42106

GROMMET

Rubber Lamp Harness through Hydraulic Reservoir Frame

1шт.

5

185919A1

BRACKET

2шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

7

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

If Used

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Flange 1/2-13 x 1-1/4, Incl. 2; If Used

2шт.

8

D137294

LIGHT ASSY.

Front And Rear See Figure(s) : 04-14

4шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

3шт.

10

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

10шт.

11

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

12

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID

3шт.

13

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

17

372819A1

GUARD

2шт.
