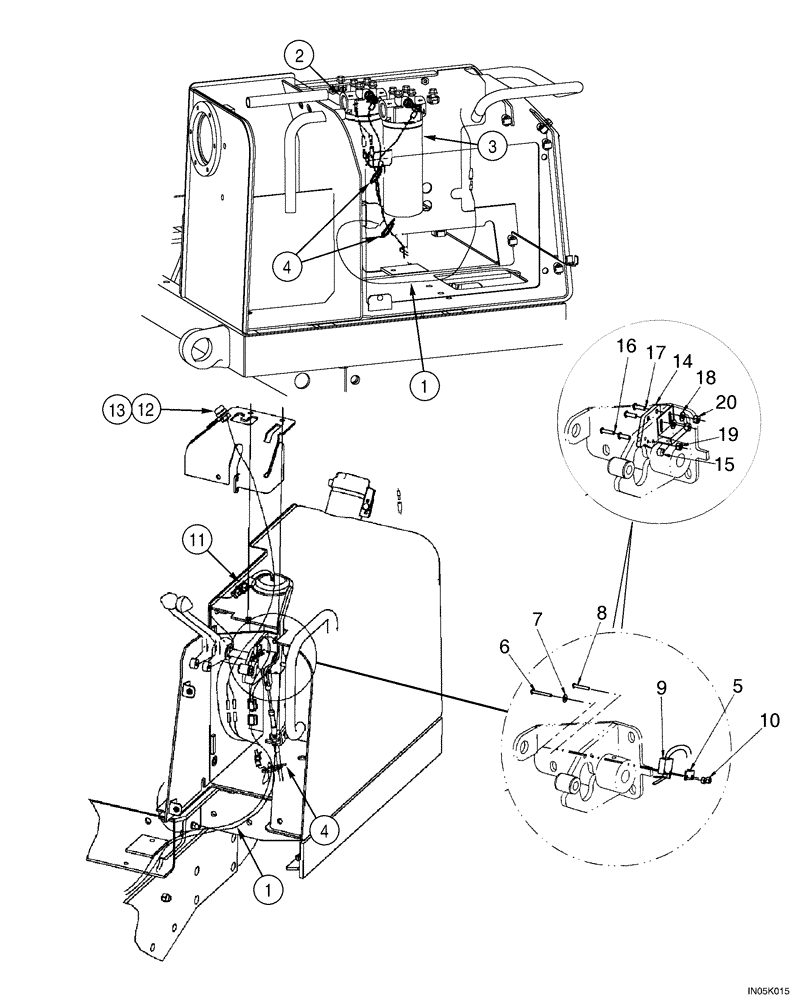

Запчасти Case 550H-IND (04-12) - HARNESS, REAR, AT HYDRAULIC RESERVOIR AND FUEL TANK (04) - ELECTRICAL SYSTEMS

1

337573A1

HARNESS

Rear, No Longer Available, Order 337573A2

1шт.

1a

337573A2

HARNESS

Rear, Not Illustrated See Figure(s) : 04-11; If Used

1шт.

1b

337573A3

HARNESS

Rear, Not Illustrated See Figure(s) : 04-11; If Used

1шт.

2

REF

INSTRUCTION

Filter, Oil Transmission See Figure(s) : 06-16

1шт.

3

REF

INSTRUCTION

Filter, Oil Hydraulic See Figure(s) : 06-16

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

1шт.

5

310719A1

COVER

Switch Mounting; Used With Ref. 6-10; If Used

1шт.

6

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

6-32 x 1.25

1шт.

7

495-21019

WASHER,#8

1шт.

8

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

1шт.

9

1343288C2

LIMIT SWITCH

Neutral Start

1шт.

10

231-14106

NUT,#6-32, GB

No. 6-32

2шт.

11

326276A1

SENSOR

Fuel Level See Figure(s) : 03-06

1шт.

12

R58727

SWITCH

Push Button Horn

1шт.

13

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

14

392957A1

PLATE

Switch Mounting; Used With Ref. 15-20; If Used

1шт.

15

394819A2

SWITCH

Neutral Start L190mm, Replaces 394819A1 L170mm

1шт.

16

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

1шт.

17

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

3шт.

18

495-31022

WASHER,#10

2шт.

19

231-14408

NUT,#8-32, GB

No. 8-32

1шт.

20

231-14409

NUT,#10-24, GB

2шт.

21

396635A1

ELECTRICAL WIRE

WIRE Neutral Start, Not Illustrated; Used With Kit 396655A1

1шт.

396655A1

KIT

Neutral Start, Incl. Ref. 14 - 21

1шт.
