(04-11) - HARNESSES, FRONT & REAR, FRONT HARNESS TO HORN & FRONT & REAR HARNESS MTG AT REAR OF CONTROL VALVE

Запчасти Case 550H-IND (04-11) - HARNESSES, FRONT & REAR, FRONT HARNESS TO HORN & FRONT & REAR HARNESS MTG AT REAR OF CONTROL VALVE (04) - ELECTRICAL SYSTEMS

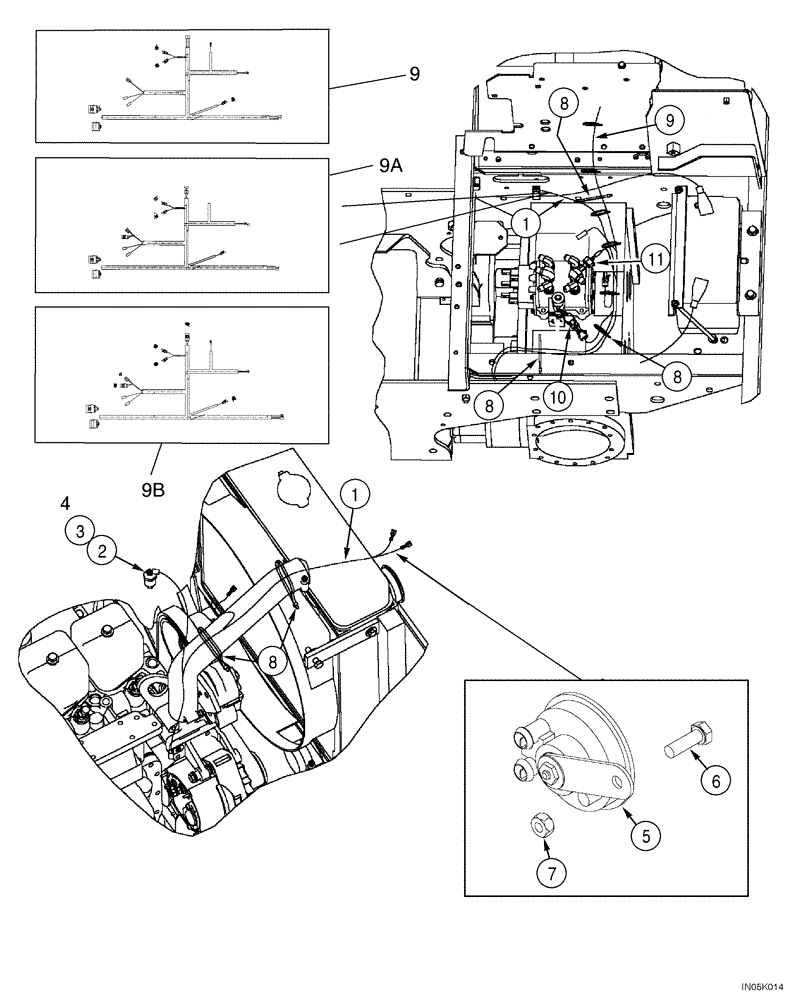

Схема запчастей Case 550H-IND - (04-11) - HARNESSES, FRONT & REAR, FRONT HARNESS TO HORN & FRONT & REAR HARNESS MTG AT REAR OF CONTROL VALVE (04) - ELECTRICAL SYSTEMS
8
10
9
8
11
2
6
8
4
1
3
5
1
8
7
9a
9b
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

338943A1

HARNESS

Front; No Longer Available, Order 338943A2 Ref. 1A

1шт.

1a

338943A2

HARNESS

Front, Not Illustrated See Figure(s): 04-06, 04-07

1шт.

2

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

3

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Sender Coolant Temperature

1шт.

4

892-11005

LOCK WASHER,M5

1шт.

5

237582A1

HORN

1шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

If Used

1шт.

6

614-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

If used

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

1шт.

9

337573A1

HARNESS

Rear, No Longer Available, Order 337573A2

1шт.

9a

337573A2

HARNESS

Rear; If Used

1шт.

9b

337573A3

HARNESS

Rear; If Used

1шт.

10

REF

INSTRUCTION

Valve, Solenoid Brake See Figure (s) : 06-10, 06-11

1шт.

11

REF

INSTRUCTION

Switch, Pressure Backup Alarm See Figure(s) : 04-15, 06-10

1шт.
